ATMOS SAVE Kit - Core Systems

ATMOS SAVE Kit

Rugged Mission Computers

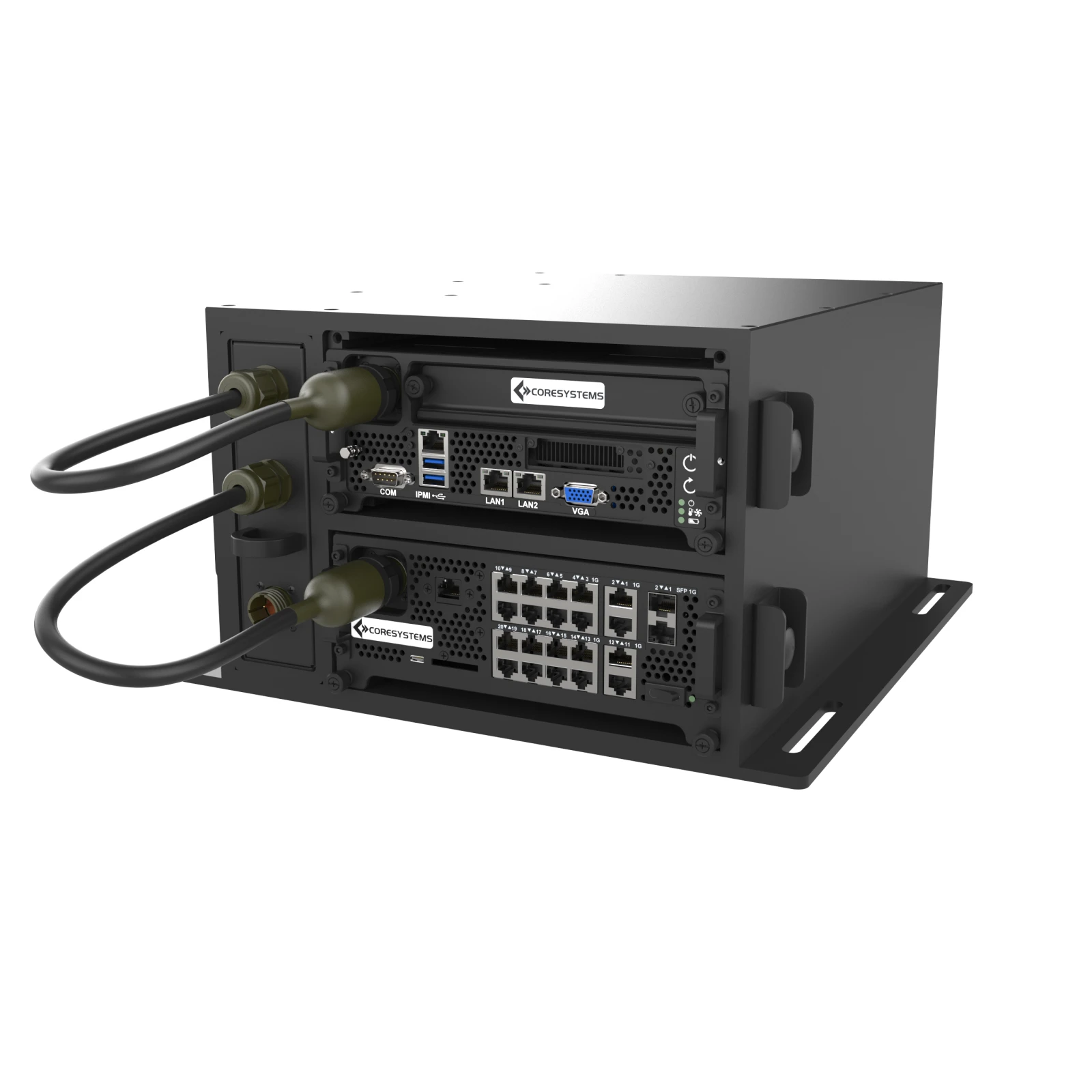

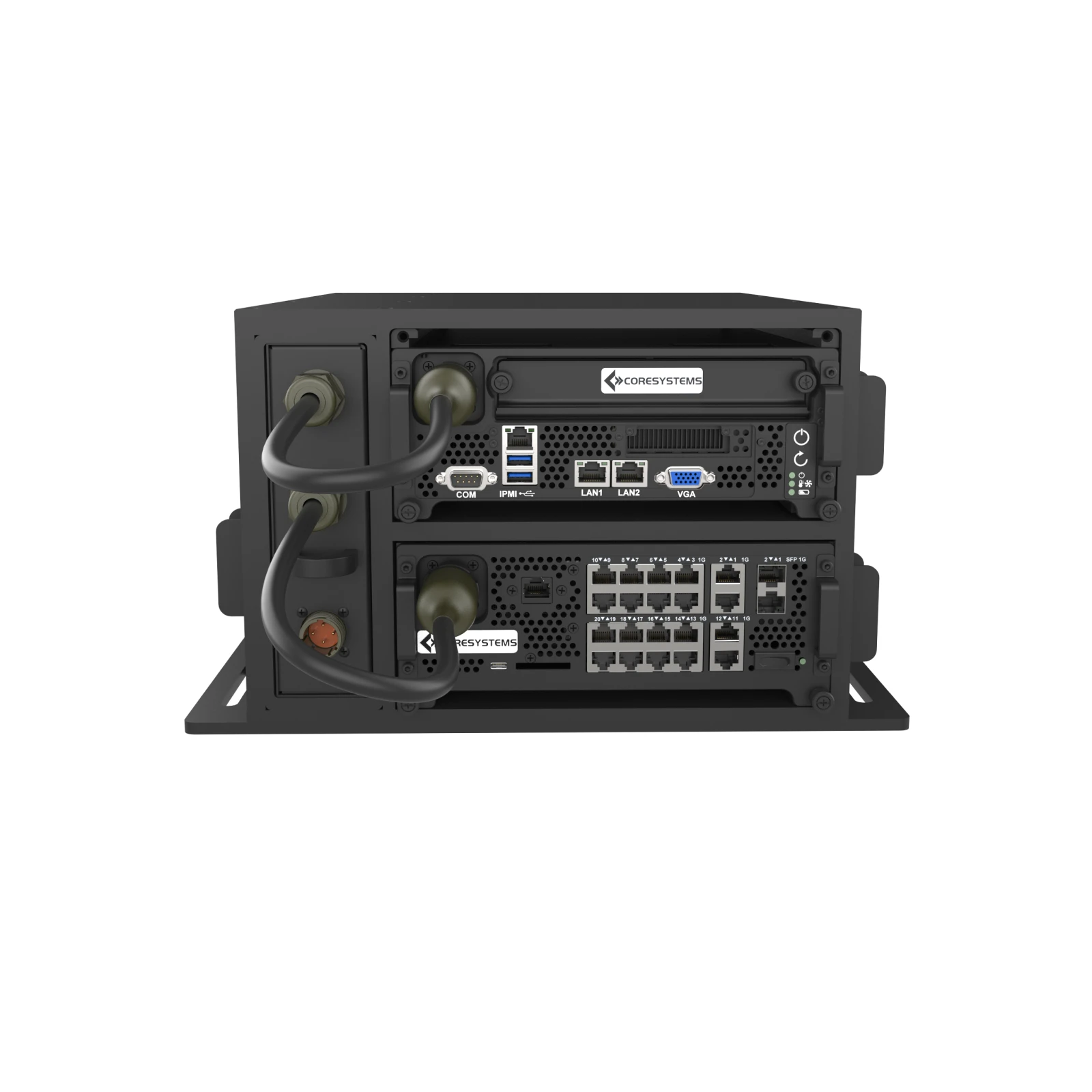

The Core Systems ATMOS SAVE Kit is a SAVE-compliant, fully integrated tactical edge solution combining an ATMOS2 GPU compute node, an ATMOS2 managed switch, and a dual-output battery power subsystem within a compact SAVE chassis. Engineered for rapid deployment, the system delivers high-performance AI processing, integrated networking, and resilient power in a single ruggedized platform.

Designed for mobile, vehicle, and expeditionary environments, the ATMOS SAVE Kit supports native DC input with onboard battery backup to ensure continuous operation during power interruptions. Its modular, stackable architecture enables scalable edge deployments while simplifying integration, transport, and field setup.

  • ATMOS2 GPU Compute Node
  • ATMOS2 Switch
  • Dual-Output Battery Power System
  • SAVE-Compliant Rugged Chassis
  • 24–28VDC Native Power Input
  • 600W Power Distribution Architecture
  • Onboard Battery Backup
  • Dual 10GbE + Multi-Port 1GbE Networking
  • Stackable Edge Deployment Platform

Datasheet
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit
ATMOS SAVE Kit

Designed for mobile, vehicle, and expeditionary environments, the ATMOS SAVE Kit supports native DC input with onboard battery backup to ensure continuous operation during power interruptions. Its modular, stackable architecture enables scalable edge deployments while simplifying integration, transport, and field setup.

  • ATMOS2 GPU Compute Node
  • ATMOS2 Switch
  • Dual-Output Battery Power System
  • SAVE-Compliant Rugged Chassis
  • 24–28VDC Native Power Input
  • 600W Power Distribution Architecture
  • Onboard Battery Backup
  • Dual 10GbE + Multi-Port 1GbE Networking
  • Stackable Edge Deployment Platform

Datasheet

Test Reports

Enter Your Email Below to Receive ATMOS Test Reports

ATMOS
Height 9.3 in
Width 15.9 in
Depth 16.1 in
Weight 38 lbs
Power 24–28VDC Input (500W) – Compute Node, 100–240VAC Input (600W) – Battery System, 24VDC Output (600W Total) – Dual Output Power, Dual-output DC power distribution to system components, Integrated Battery Backup System
RAM Up to 2TB per Node
Processor 144x Intel® Xeon® Cores
Storage 4× 15.36TB NVMe SSD (Hot-Swap)
I/O 2x USB 2.0, 1x VGA
GPU NVIDIA Tesla Blackwell 4000
Network 2× 10G onboard NIC Ports
Security TPM 2.0 Module
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
