Industrial R115

Industrial Servers

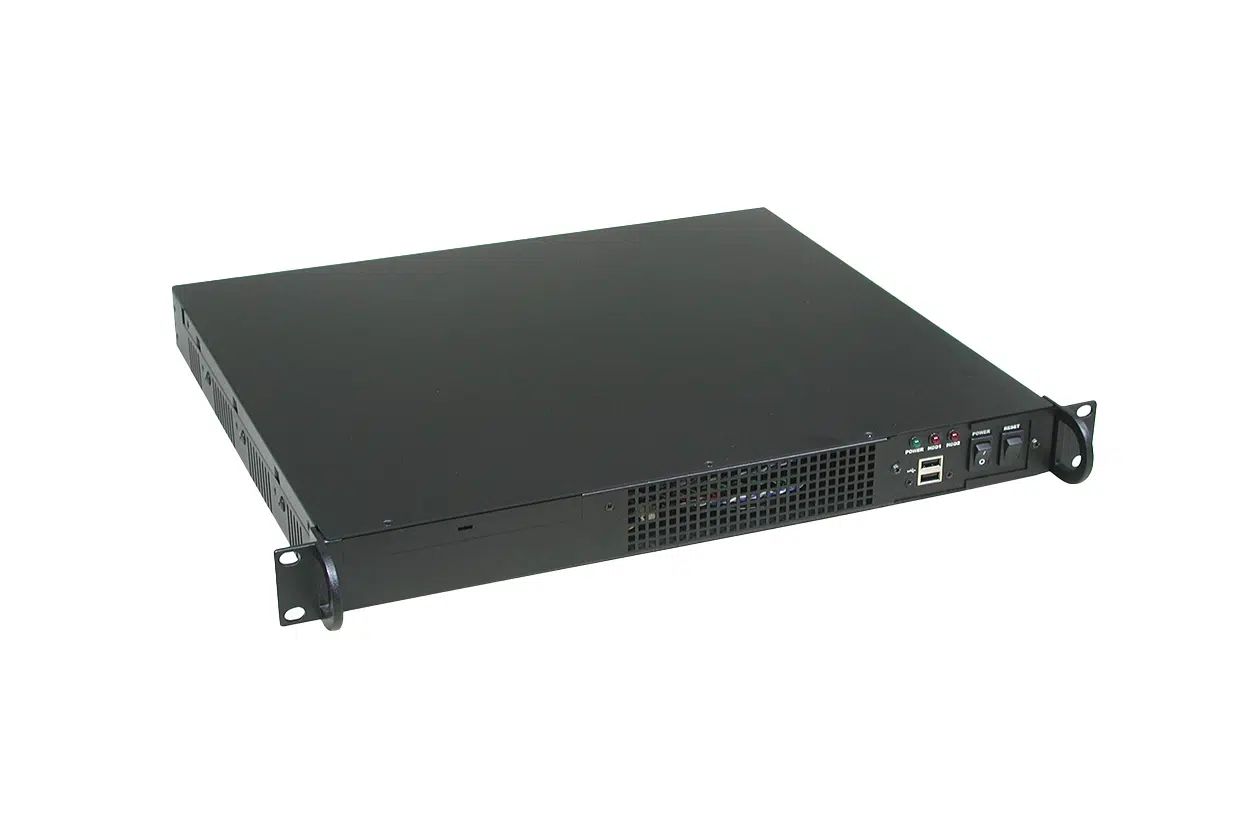

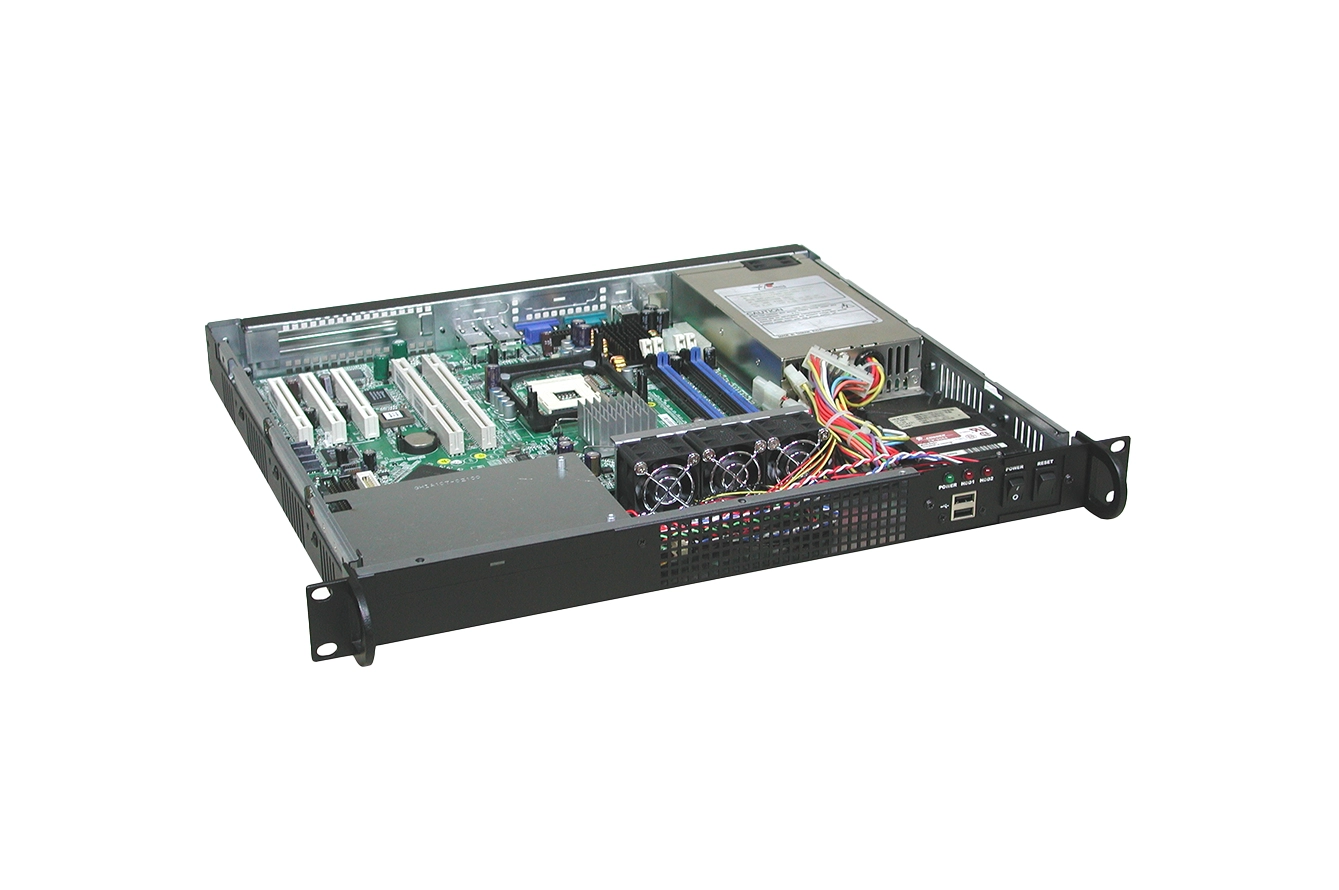

The R115 is a robust, short-depth 1U server designed for industrial environments that demand space efficiency and powerful performance. The R115 supports modern Intel Xeon processors, delivering exceptional computing power for data-intensive tasks.

1U Industrial-Grade Durability
Modern Processor Support
GPU Support
Efficient Cooling 3x 40mm fans
Storage Flexibility
High-performance processing power
Low power consumption for efficiency

1.75" Height
15.2" Depth
19.00" Width
16.1 lbs Weight


Height	1.75 in
Width	19.00 in
Depth	15.2 in
Weight	16.1 lbs
CPU	Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6
RAM	Up to 512GB
Expansion Slots	Qty: 1, full height
USB Ports	4
PCIE Expansion	Multiple slot combinations available
Power	400W AC
System Board	Extended ATX Motherboard
Chassis Type	Lightweight aluminum chassis
Environmental Specifications	Tested to meet military environmental specifications.

Height

1.75 in

Width

19.00 in

Depth

15.2 in

Weight

16.1 lbs

CPU

Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6

RAM

Up to 512GB

Expansion Slots

Qty: 1, full height

USB Ports

PCIE Expansion

Multiple slot combinations available

Power

400W AC

System Board

Extended ATX Motherboard

Chassis Type

Lightweight aluminum chassis

Environmental Specifications

Tested to meet military environmental specifications.


Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)

Environmental Specifications

Tested to meet military environmental specifications.

Operational Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Storage Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Humidity

MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)

Altitude

MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport

Vibration

MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis

Shock

MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock

Other

MIL-STD-461F CE & RE emissions (with 461 filter option)
