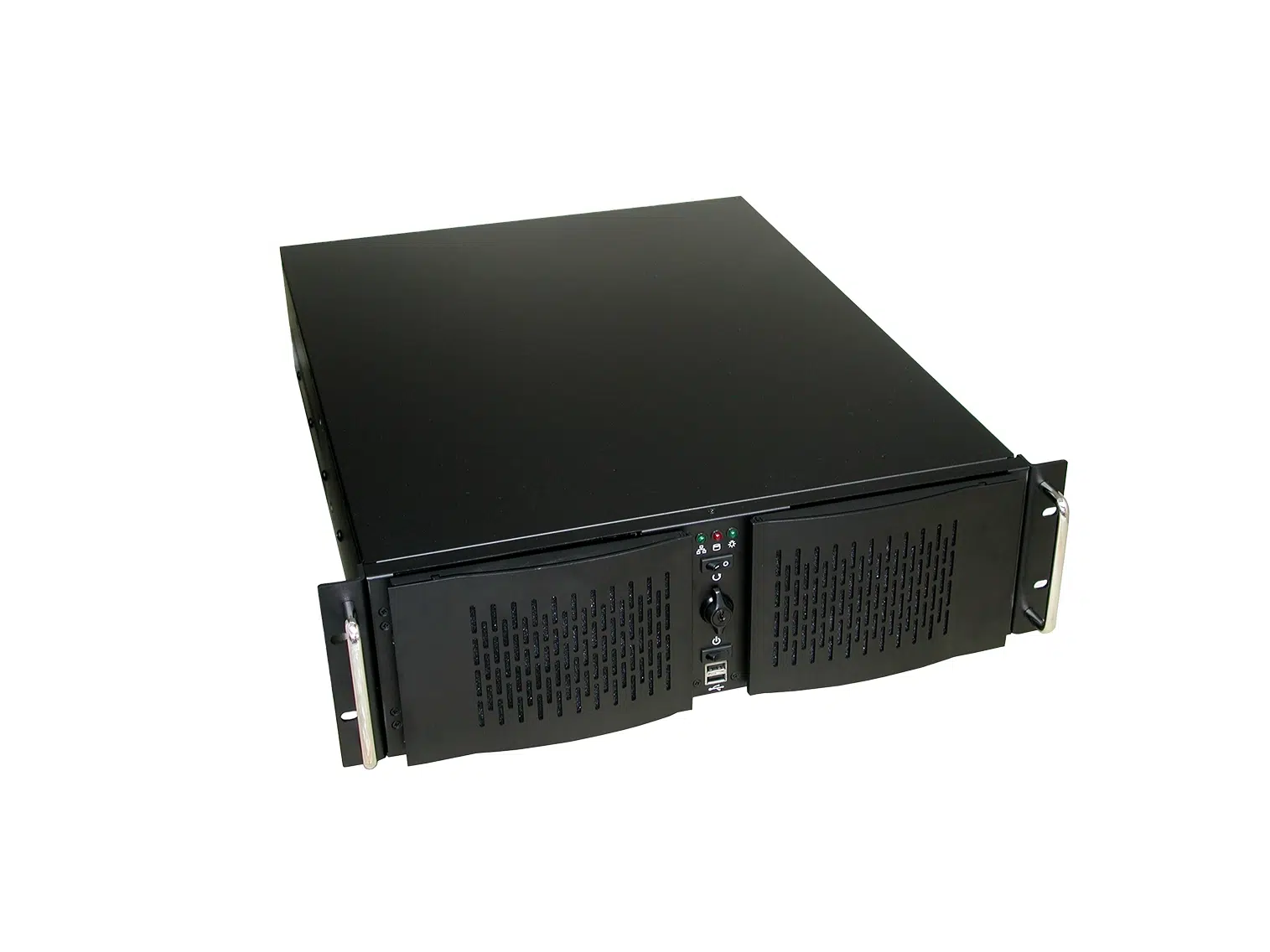

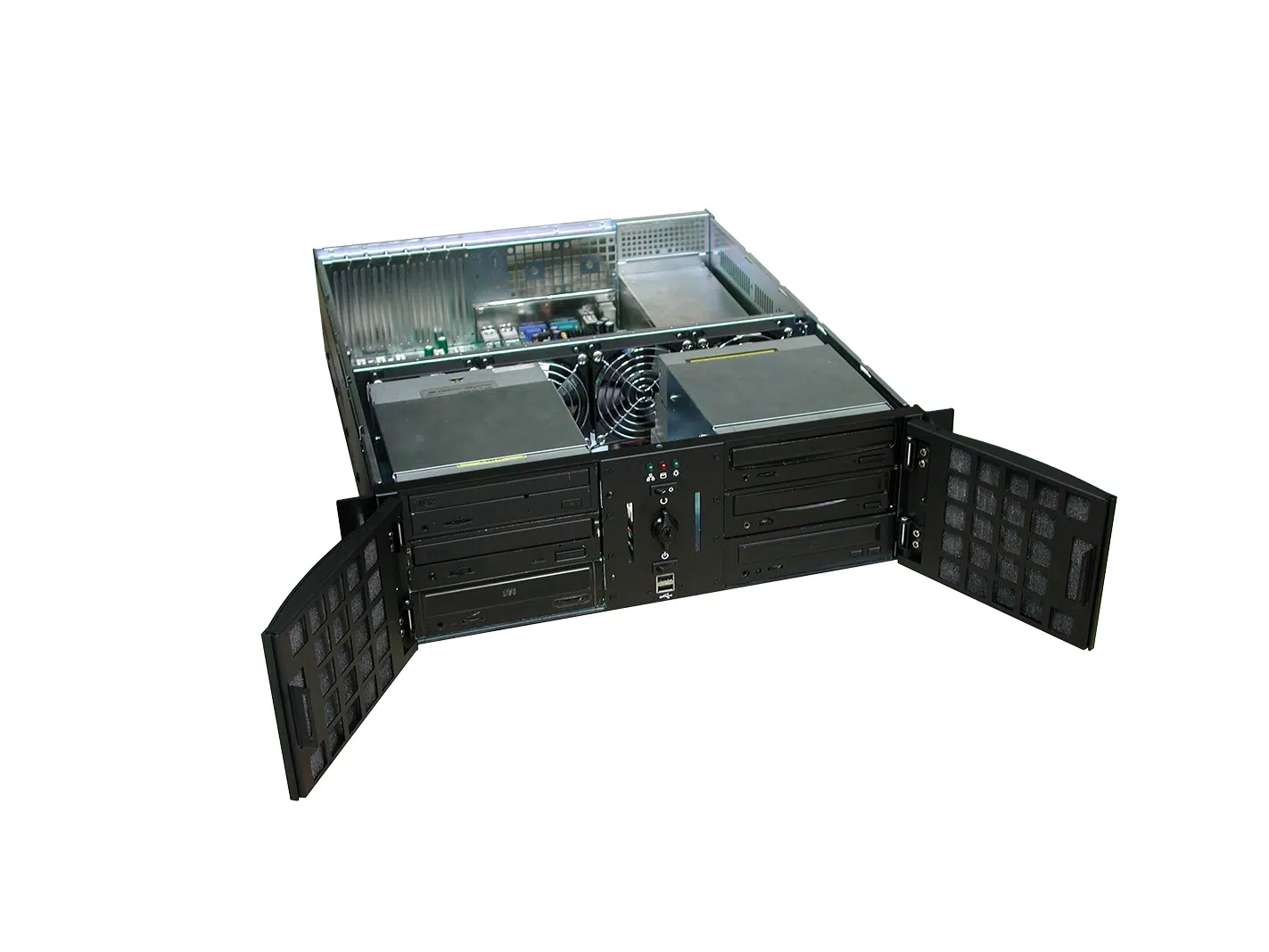

Industrial R322

Industrial Servers

The R322 is a robust, 3U server designed for industrial environments that demand space efficiency and powerful performance. The R322 supports modern Intel Xeon processors, delivering exceptional computing power for data-intensive tasks.

3U Industrial-Grade Durability
Modern Processor Support
GPU Support
Efficient Cooling
Storage Flexibility
3U high-performance industrial server
Reliable computing for critical workloads

5.25" Height
22.1" Depth
19.00" Width
31.8 lbs Weight


Height	5.25 in
Width	19.00 in
Depth	22.1 in
Weight	31.8 lbs
CPU	Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6
RAM	Up to 512GB
Expansion Slots	Qty: 7, low profile
USB Ports	2
Cooling	4 x 92mm (51 CFM ea.) Center Mount
Power	700W
System Board	Extended ATX Motherboard

Height

5.25 in

Width

19.00 in

Depth

22.1 in

Weight

31.8 lbs

CPU

Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6

RAM

Up to 512GB

Expansion Slots

Qty: 7, low profile

USB Ports

Cooling

4 x 92mm (51 CFM ea.) Center Mount

Power

700W

System Board

Extended ATX Motherboard


Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)

Environmental Specifications

Tested to meet military environmental specifications.

Operational Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Storage Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Humidity

MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)

Altitude

MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport

Vibration

MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis

Shock

MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock

Other

MIL-STD-461F CE & RE emissions (with 461 filter option)
