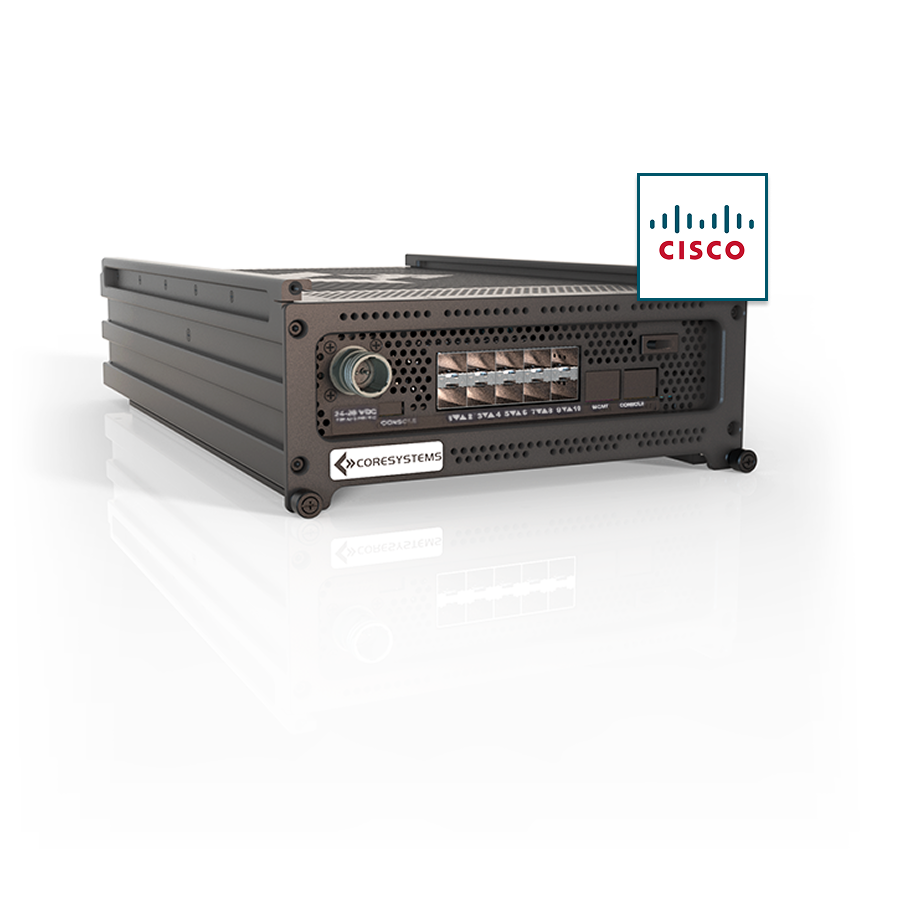

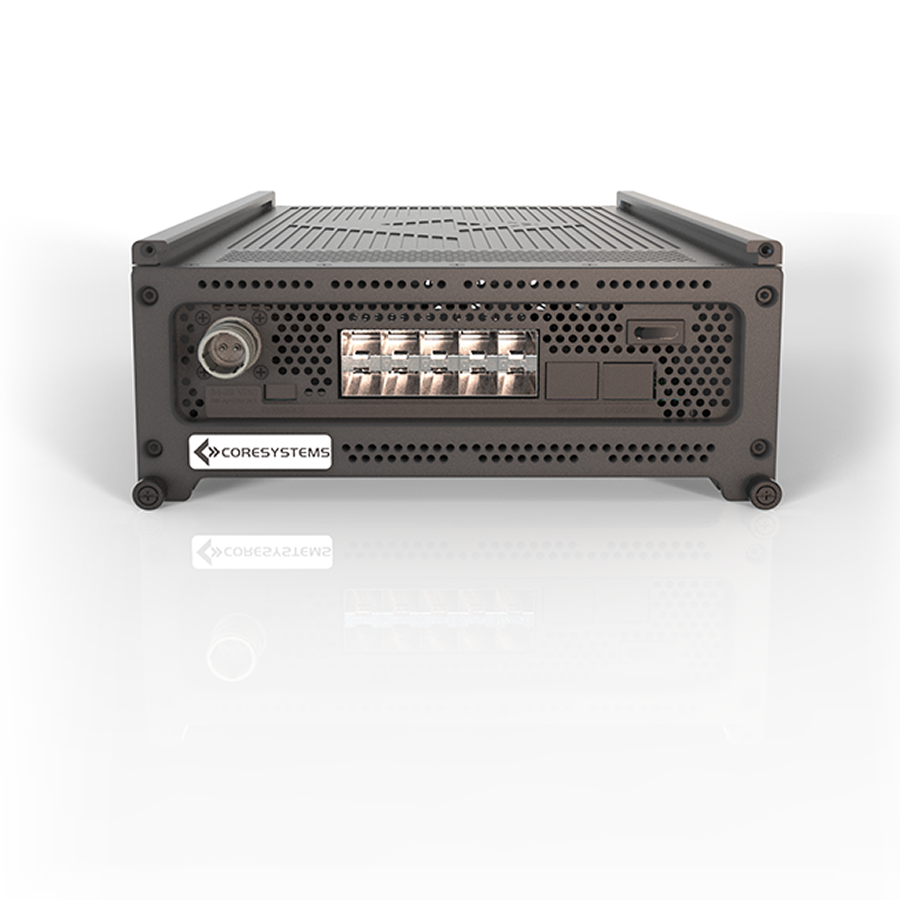

Rugged ATMOS 10-Port 10Gb Switch

The ATMOS Switch is a rugged Cisco 10-Port 10Gb switch engineered to withstand harsh operational environments, making it ideal for military, aerospace, industrial, and edge computing applications.

  • CISCO ESS9300: 10x 10Gb SFP Ports
  • Onboard UPS Battery Backup
  • Rugged MIL-Spec Chassis
  • Stackable Chassis Rail System
  • Native 24-28VDC Power Input
  • Optional AC-DC External Power Supply

Datasheet

  • CISCO ESS9300: 10x 10Gb SFP Ports
  • Onboard UPS Battery Backup
  • Rugged MIL-Spec Chassis
  • Stackable Chassis Rail System
  • Native 24-28VDC Power Input
  • Optional AC-DC External Power Supply

Datasheet

Rugged Mission Computers

Technical Specifications
Height 3.5 in
Width 8.5 in
Depth 14.75 in
Weight 10 lbs
Power 24VDC
Cisco Switch 10 x 10Gb SFP Ports
Switching Capacity Up to 200 Gbps
Forwarding Rate 150+ Mpps
Layer 3 Capabilities Static & dynamic routing, VLAN support, multicast, and QoS optimization
EXT Power AC/DC Power Brick
UPS Integrated Battery Backup
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Rugged Design

Built Rugged to Last Long

Application-Specific

Modern Battlefield Tech

ATMOS-Switch-Datasheet-2.pdf

Request A Quote For The Rugged ATMOS 10-Port 10Gb Switch

Fill out the form below for pricing and information on the Rugged ATMOS 10-Port 10Gb Switch

Rugged Mission Computers

Related Designs

Military-Ready Design

Rugged ATMOS 10-Port 10Gb Switch Features

Short-Depth

Space-saving design built for your application.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Rugged ATMOS 10-Port 10Gb Switch

Technical Specifications
Height 3.5 in
Width 8.5 in
Depth 14.75 in
Weight 10 lbs
Power 24VDC

Rugged ATMOS 10-Port 10Gb Switch

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Rugged Design

Built Rugged to Last Long

Application-Specific

Modern Battlefield Tech

Rugged ATMOS 10-Port 10Gb Switch
