Rugged HPE Servers

Rugged EL1000RS

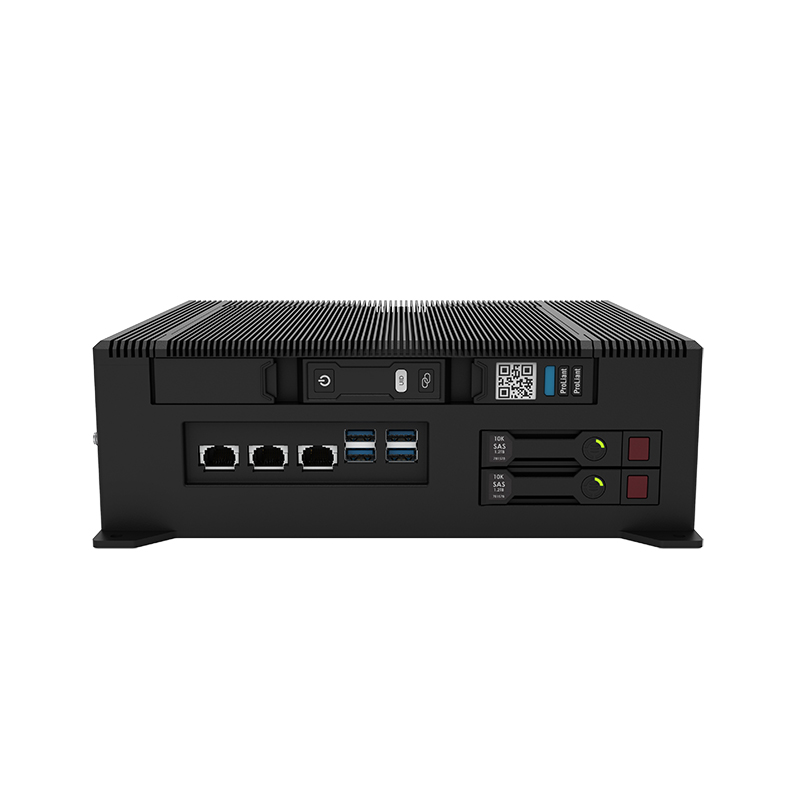

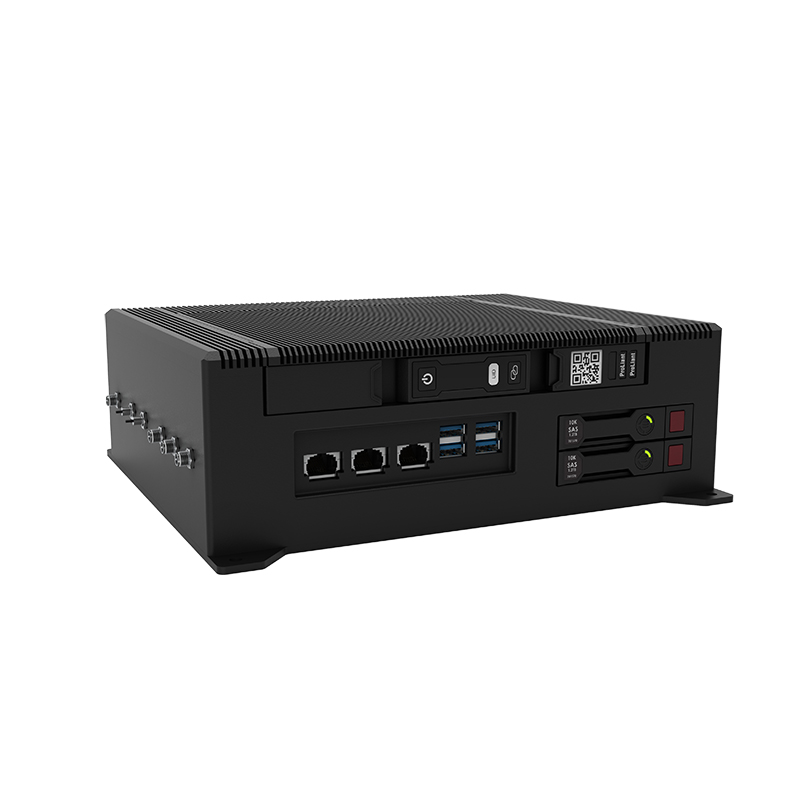

The Rugged HPE Edgeline EL1000RS converged edge system from Core Systems delivers unprecedented deep edge compute and storage. The EL1000RS is an industry first, integrating unprecedented levels of edge compute, precision data capture and control, data center-class security, device and systems management, as well as large and blazingly fast storage capabilities – in one converged box.

  • Designed to perform in harsher edge environments with higher shock, vibration, and temperature levels.
  • Perfect for expanding your IoT infrastructure beyond traditional data center confines
  • Three points of convergence all in one box.

Datasheet

  • Designed to perform in harsher edge environments with higher shock, vibration, and temperature levels.
  • Perfect for expanding your IoT infrastructure beyond traditional data center confines
  • Three points of convergence all in one box.

Datasheet

Request A Quote For The Rugged EL1000RS

Fill out the form below for pricing and information on the Rugged EL1000RS

Rugged HPE Servers

Technical Specifications
Height 3.50 in
Width 13.86 in
Depth 9.17 in
Weight 17.00 lbs
External Bays Two 2.5” Small Form Factor (SFF) Hot-Plug disk bays
USB Ports 4
Power 100-150W
RAM 256GB, 512GB, 1TB
I/O Two 1 Gb (RJ45) Ethernet ports
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

2019-Core-Systems-Datasheet-1U-EL1000RS.pdf

Rugged HPE Servers

Related Designs

Military-Ready Design

Rugged EL1000RS Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Request A Quote For The Rugged EL1000RS

Fill out the form below for pricing and information on the Rugged EL1000RS

Rugged EL1000RS

Technical Specifications
Height 3.50 in
Width 13.86 in
Depth 9.17 in
Weight 17.00 lbs
External Bays Two 2.5” Small Form Factor (SFF) Hot-Plug disk bays
USB Ports 4
Power 100-150W
RAM 256GB, 512GB, 1TB

Rugged EL1000RS

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

Rugged EL1000RS
