Rugged M222 2U Server

Rugged M222 2U Server

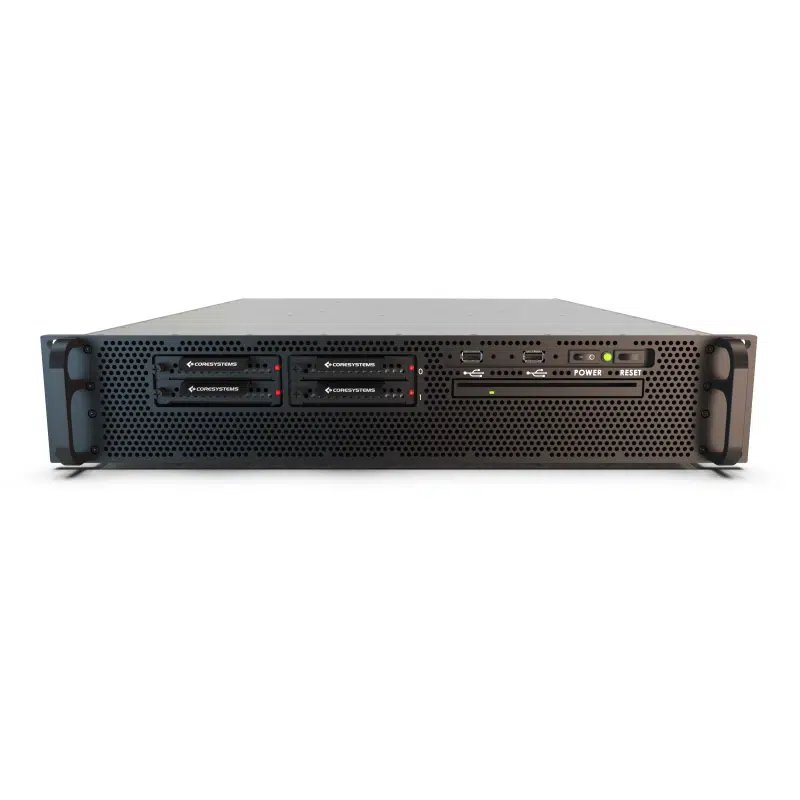

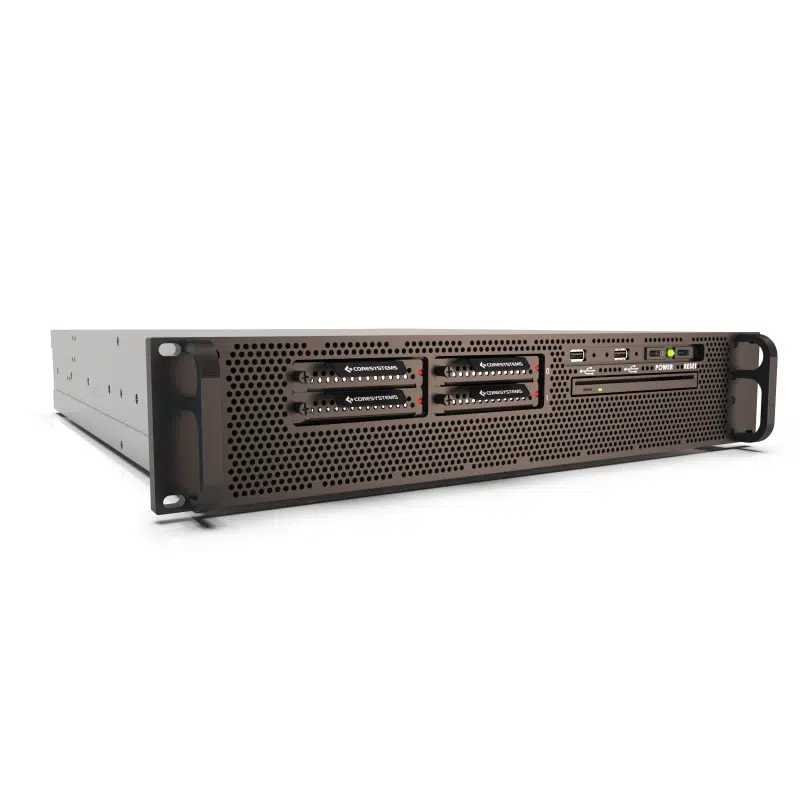

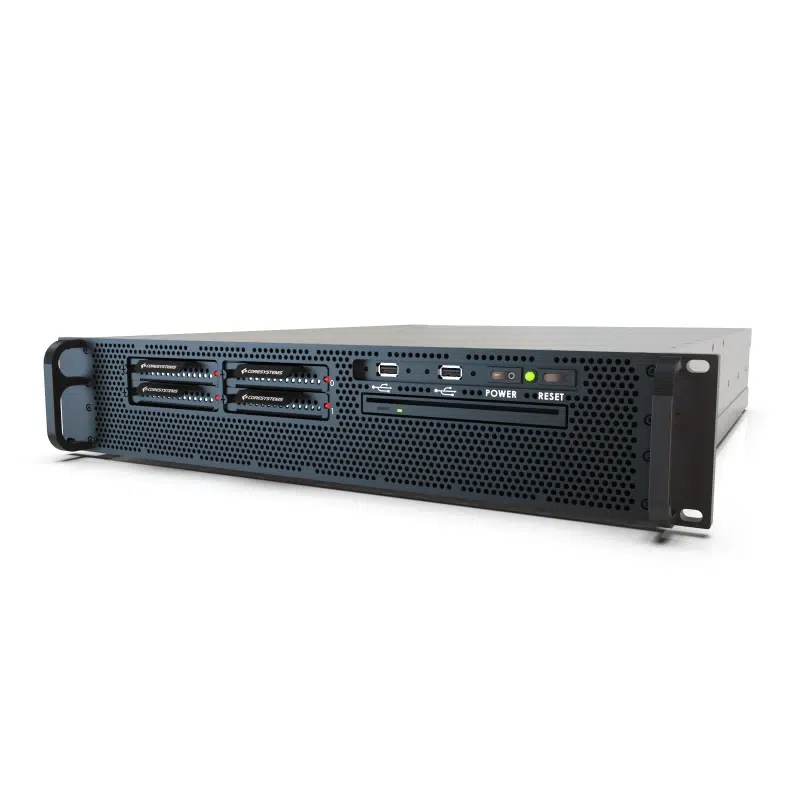

The M222 Raptor is a short depth 2U server made for applications with a maximum 22” depth requirement. The machined aircraft aluminum chassis provides a superior strength to weight ratio. The M222 rugged system has six front-accessible hot-swap drives, dual Xeon v4 CPU’s with the option of three additional rear accessible PCI cards, and a front door with a filter. All internal cabling is customized and secured to the chassis to optimize airflow and system cooling. The M222 server is built to survive high shock and vibration environments. Options for conformal coating and EMI filtering are offered on each system.

NVDIA Tesla Core Systems Rugged Server

Includes the latest single-stack NVIDIA® Tesla® GPU Card. The Tesla GPU cards are the fastest accelerators in the world for high-performance data analytics and scientific computing applications.

Request a Quote for the Rugged M222

Technical Specifications

Environmental Specifications:

Operational Temperature Range: MIL-STD-810F/G, Method 501.5, Procedures I/II; -10C to +50C with solid state drives

Storage: MIL-STD-810F/G, Method 501.5, Procedures I/II; -40C to +75C

Humidity: MIL-STD-810F/G, Method 507.4; 48 hour, 95% RH 40-65C with humidity option

Altitude: MIL-STD-810F/G, Method 500.4; 12,500ft operation with 40,000ft transport

Vibration: MIL-STD-810F/G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hzz, 60min/axis with solid state drives

Shock: MIL-STD-810F/G, Method 516.6, Procedures I/V; 20g, 11msec functional shock; 40g 11msec crash hazard shock

Other: MIL-STD-461F/G CE102 & RE102; Meets using CORESYSTEMS optional 461 EMI Kit


Height - 3.5 in (8.90 cm), Width - 17.75 in (45.08 cm), Depth - 22.00 in (55.88 cm), Weight - 30-35 lbs (13.6-15.8 kg)


Intel® CPU architecture options from Intel embedded long-life roadmap; Vapor chamber technology heatsinks; Intel E5-2600v4 Series CPUs; Dual 10-Core or dual 12-Core CPU options

Expansion Slots:

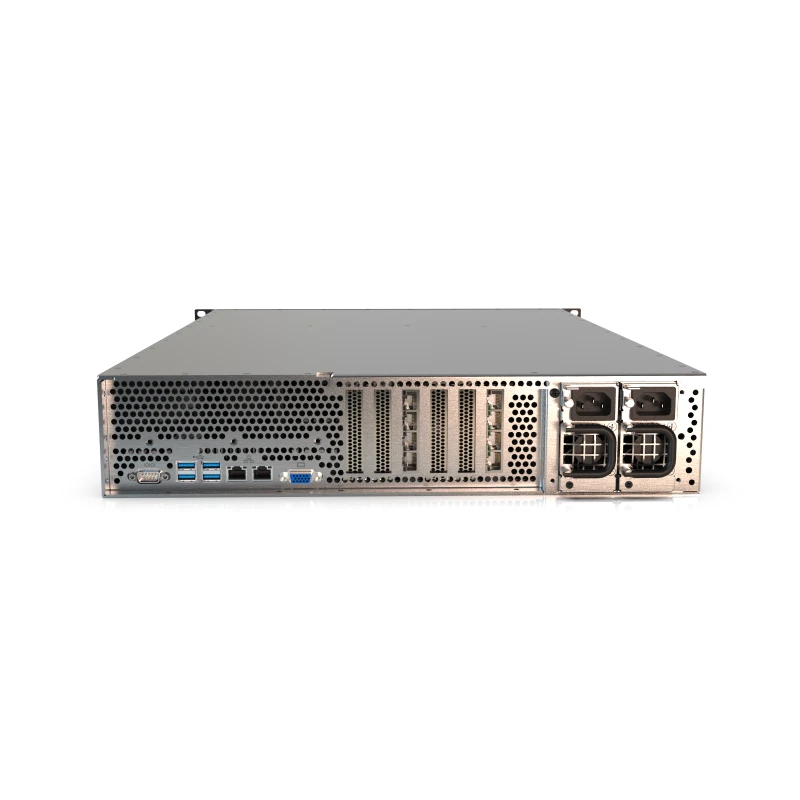

Three (3) full-height, 3/4 length slots; multiple PCIe slot combinations are available

External Bays:

Option 1- (std) Four (4) removable hot swap SATA or SAS 2.5 or 3.5 HDDs; Option 2- Four (4) removable hot swap 2.5 SATA SSD HDDs; Option 3- (offered along with option 1 or 2) One (1) slim line CD/DVD (R/W) or Blu-ray ODD


80mm high speed, high volume fans (3 center mount); Thermostatically controlled via motherboard

Power Supply Options:

Option 1- (std) 120/240VAC w/PFC 2U redundant power supply; Option 2- 120/240VAC w/PFC 2U power supply; Option 3- 24VDC 2U power supply; Option 4- 24VDC 2U redundant power supply

System Board:

X9DR3-F, Socket 2011, 512GB ECC Reg. DDR3, PS/2 KB/M, DB9 Serial, VGA, 4-USB, 2-GBLAN, On-board SAS, IPMI w/ KVM over IP


Intel E5-2600v4 Series CPUs

Intel E5-2600v4 Series CPUs

Custom Built Rugged System

Custom Built Rugged System

Includes NVIDIA® Tesla® GPU Card

Includes NVIDIA® Tesla® GPU Card

Rugged Military Tested Design

Rugged Military Tested Design

Military-Tested Compact Chassis

30-35 LBS
