Rugged M316S

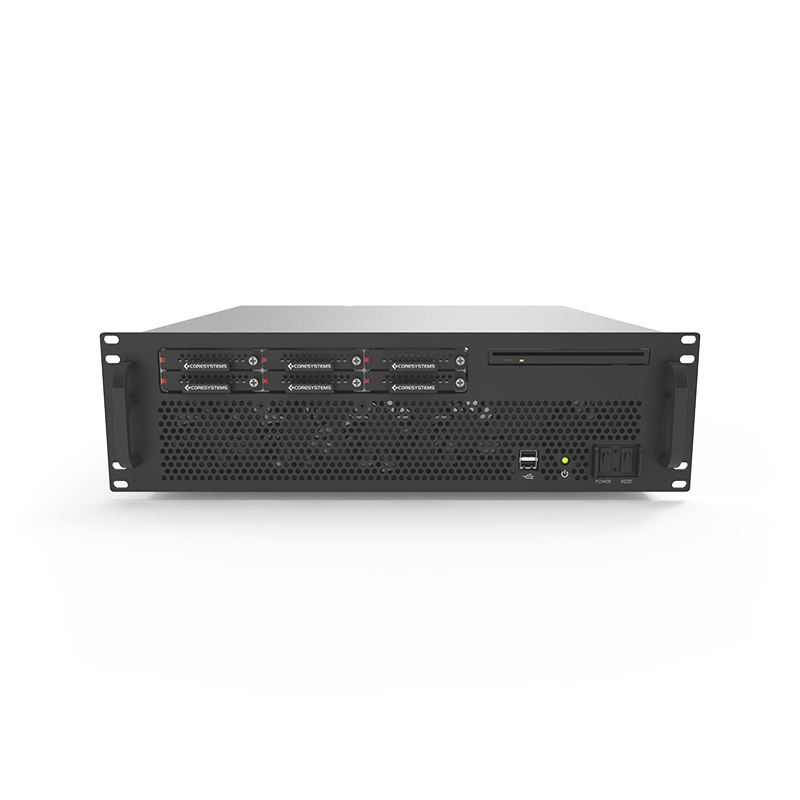

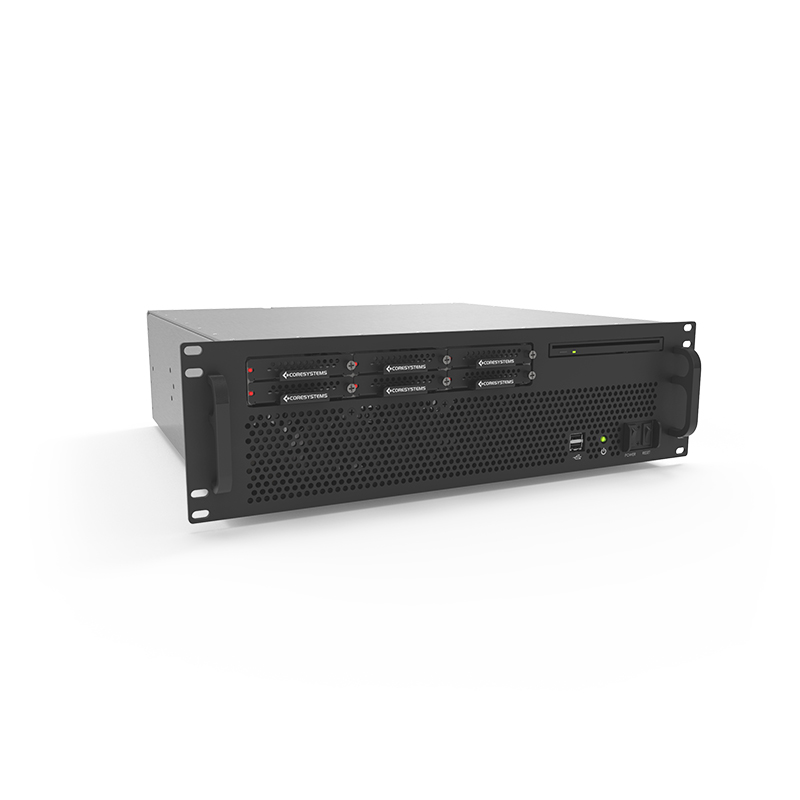

The M316S is a rugged 3U server built with sheet metal and made for applications that require short-depth solutions. The Rugged M316S server has been tested to meet military specifications.

  • Rugged, sheet-metal chassis
  • The M316S supports the latest Intel Quad and Hexa-Core CPUs
  • Includes the latest single-stack NVIDIA® Tesla® GPU Card
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

  • Rugged, sheet-metal chassis
  • The M316S supports the latest Intel Quad and Hexa-Core CPUs
  • Includes the latest single-stack NVIDIA® Tesla® GPU Card
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

Rugged Servers

Technical Specifications
Height 5.25 in
Width 17.00 in
Depth 16.00 in
Weight 30-35 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 13th Gen Intel Core i9 Processor, 4th Gen Dual Intel Xeon Scalable Processor, 4th Gen Quad Intel Xeon Scalable Processor
RAM 1TB
Expansion Slots Qty: 6, low profile
External Bays 2
USB Ports 4
PCIE Expansion Multiple slot combinations available
Cooling 80mm high speed, high volume vans
Power 28VDC, 600W AC
System Board Extended ATX Motherboard
Chassis Type Lightweight aluminum chassis
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Rugged Design

Mission-Critical Applications

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Core-Systems-M316s-Server-Datasheet.pdf

Rugged Servers

Related Designs

Military-Ready Design

Rugged M316S Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged M316S

Technical Specifications
Height 5.25 in
Width 17.00 in
Depth 16.00 in
Weight 30-35 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 13th Gen Intel Core i9 Processor, 4th Gen Dual Intel Xeon Scalable Processor, 4th Gen Quad Intel Xeon Scalable Processor
Expansion Slots Qty: 6, low profile
External Bays 2
USB Ports 4
PCIE Expansion Multiple slot combinations available
Cooling 80mm high speed, high volume vans
Power 28VDC, 600W AC
System Board Extended ATX Motherboard
Chassis Type Lightweight aluminum chassis

Rugged M316S

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Rugged Design

Mission-Critical Applications

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Rugged M316S
