Rugged ATMOS-HRL

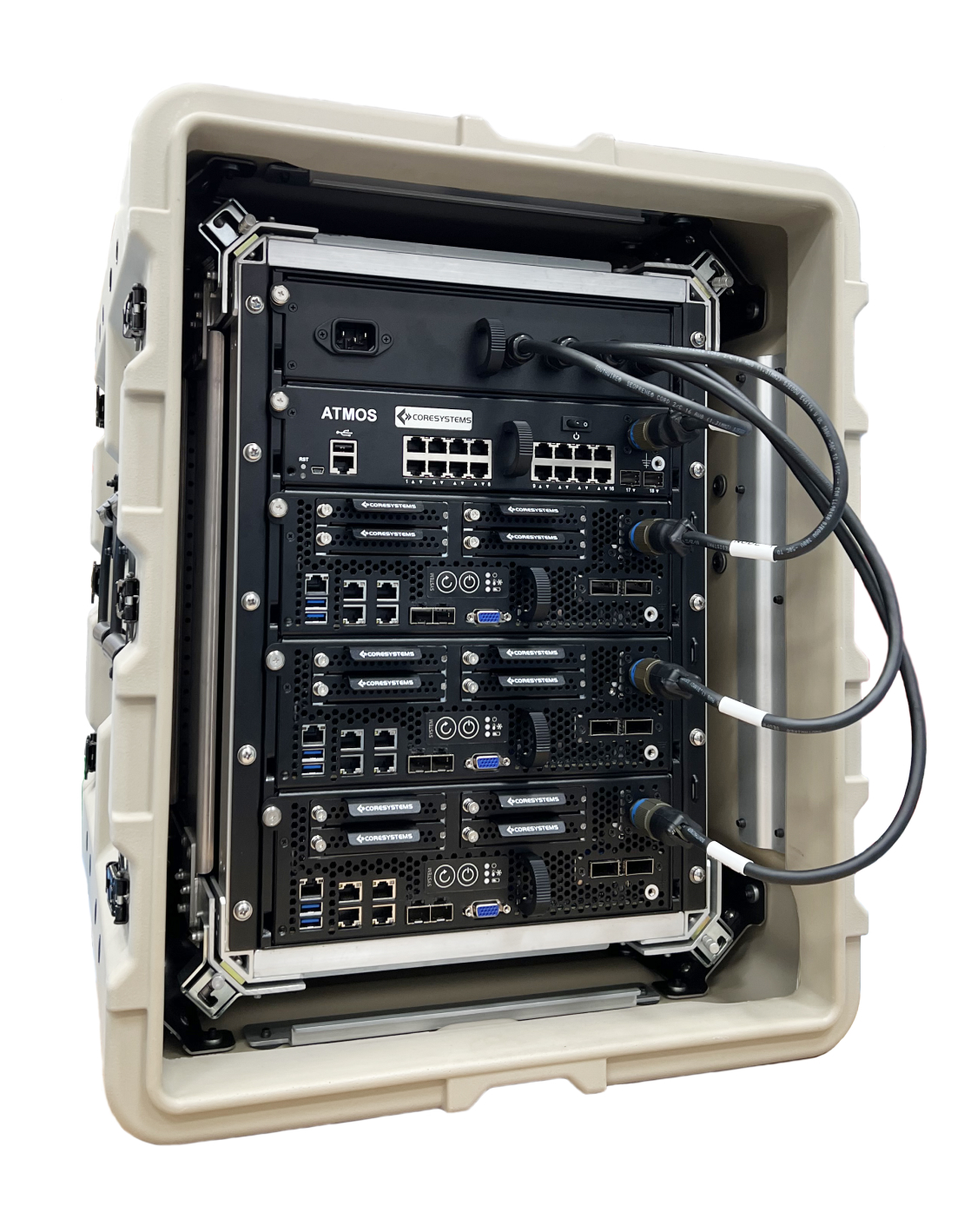

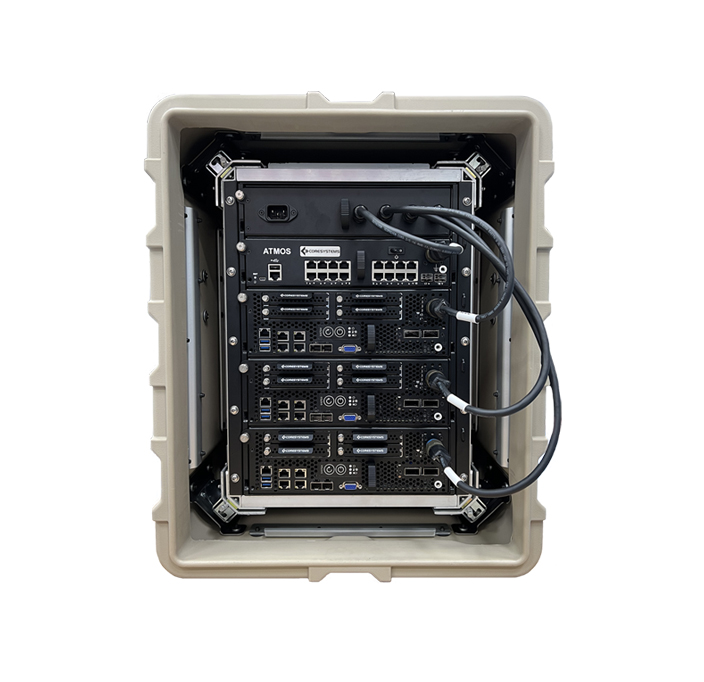

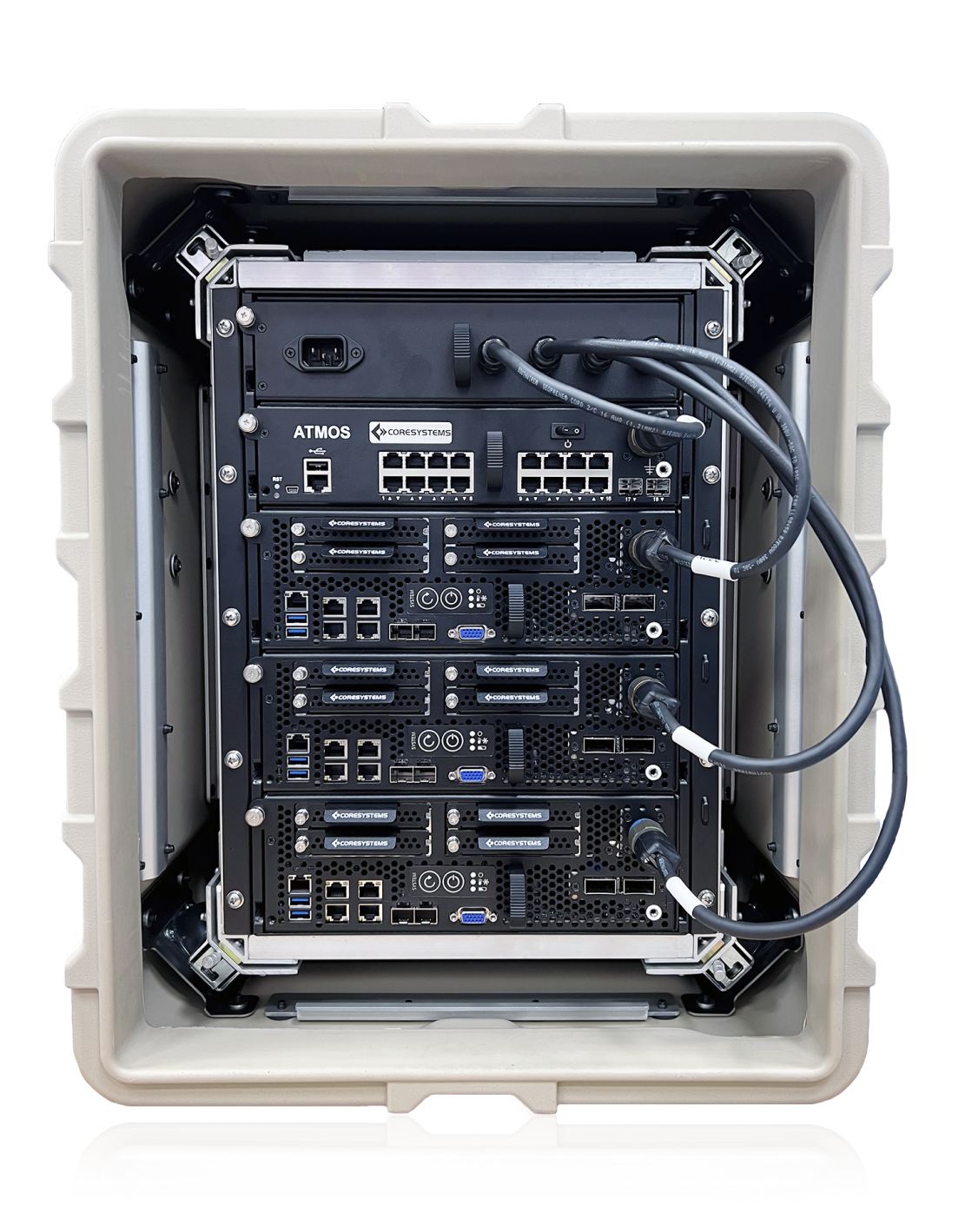

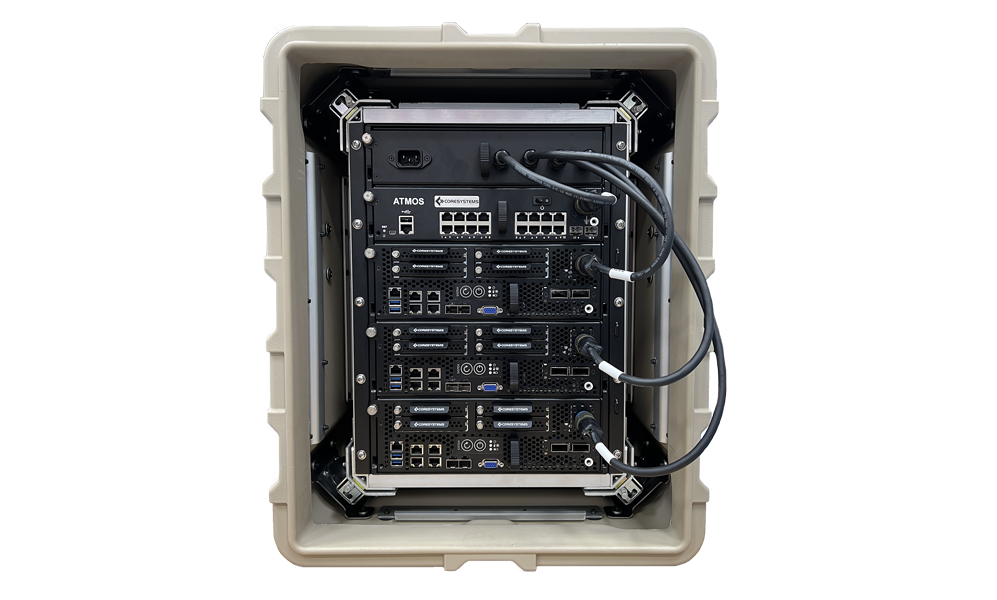

The Rugged 3-Node ATMOS-HRL from Core Systems features three independent Hot Swap 3rd Generation Intel® Xeon® Processor server nodes connected to the onboard Cisco® ESS-9300 10G switch with integrated UPS battery backup for each node.

Each modular node can be independently configured for enterprise-grade compute and storage operations. The ATMOS-HRL by Core Systems features the industry’s lowest size, weight, power, and cost (SWaP-C) of any deployable tactical data center and operates on 24-28VDC battery power with integrated UPS power in each node.

Datasheet

Each modular node can be independently configured for enterprise-grade compute and storage operations. The ATMOS-HRL by Core Systems features the industry’s lowest size, weight, power, and cost (SWaP-C) of any deployable tactical data center and operates on 24-28VDC battery power with integrated UPS power in each node.

Datasheet

Rugged Mission Computers


Technical Specifications

Height 15 in
Width 11.75 in
Depth 15.90 in
Weight 98 lbs
Power 24-28VDC Input Power per node, Optional Integrated AC to DC Power Supply
RAM 256GB REG ECC RAM (per node); 1024GB REG ECC RAM (per system), Up to 2TB per Node
Processor 32x Intel Xeon Cores (per node); 128x Intel Xeon Cores (per system)
Storage 15.36 TB SSD, 46.08 TB (per system), FIPS 140-2 Options Available; Stackable external NAS storage option for up to 16x drives and 246TB
TPM FIPS 140-2 Module Standard
Switch 10-Port ESS-9300 10G Switch (Custom Options Available)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Rugged Design


Built Rugged to Last Long

Core Systems provides a line of rugged mission computers that add versatility to your mission.

Application-Specific


Built Rugged to Last Long

Rugged mission computers can be designed to meet the specifications of your mission.

Rugged Mission Computers

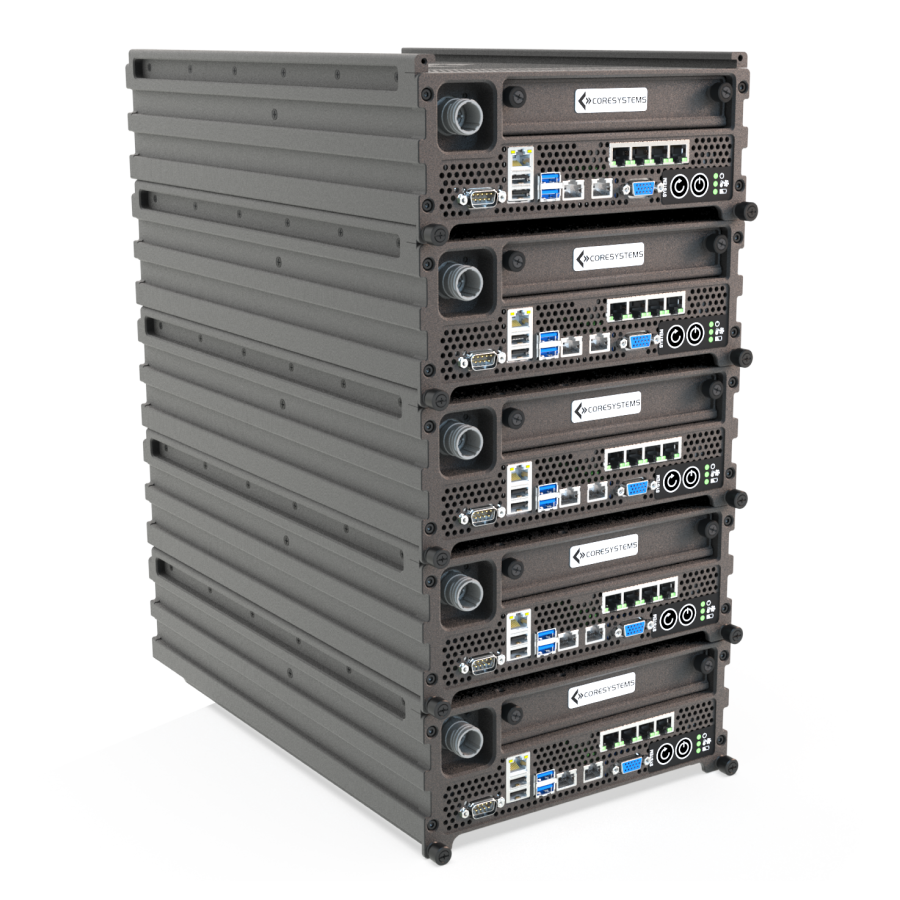

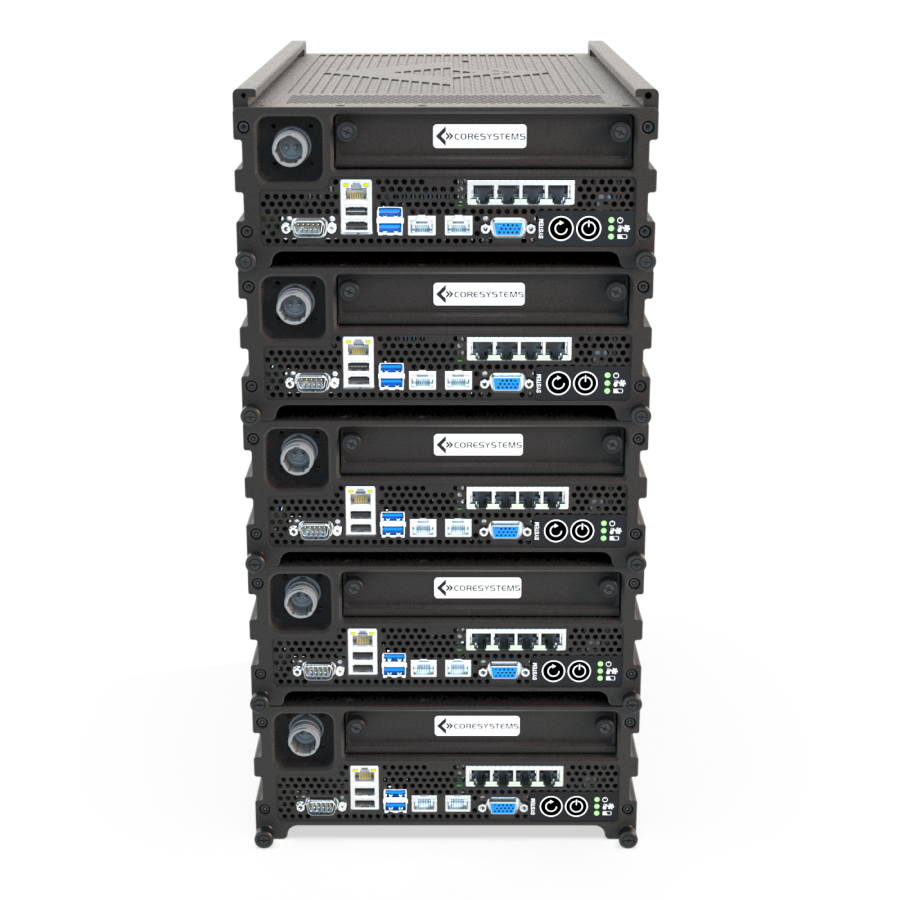

Related Designs

Military-Ready Design


Rugged ATMOS-HRL Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Latest Technology

Your system comes equipped with the most powerful computing technology in the industry.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Rugged ATMOS-HRL


Technical Specifications

Height 15 in
Width 11.75 in
Depth 15.90 in
Weight 98 lbs
Power 24-28VDC Input Power per node, Optional Integrated AC to DC Power Supply
RAM 256GB REG ECC RAM (per node); 1024GB REG ECC RAM (per system), Up to 2TB per Node
Processor 32x Intel Xeon Cores (per node); 128x Intel Xeon Cores (per system)
Storage 15.36 TB SSD, 46.08 TB (per system), FIPS 140-2 Options Available; Stackable external NAS storage option for up to 16x drives and 246TB

Rugged ATMOS-HRL


Military Testing

Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Rugged Design


Built Rugged to Last Long

Core Systems provides a line of rugged mission computers that add versatility to your mission.

Application-Specific


Built Rugged to Last Long

Rugged mission computers can be designed to meet the specifications of your mission.

Rugged ATMOS-HRL
