ATMOS - CDS Server

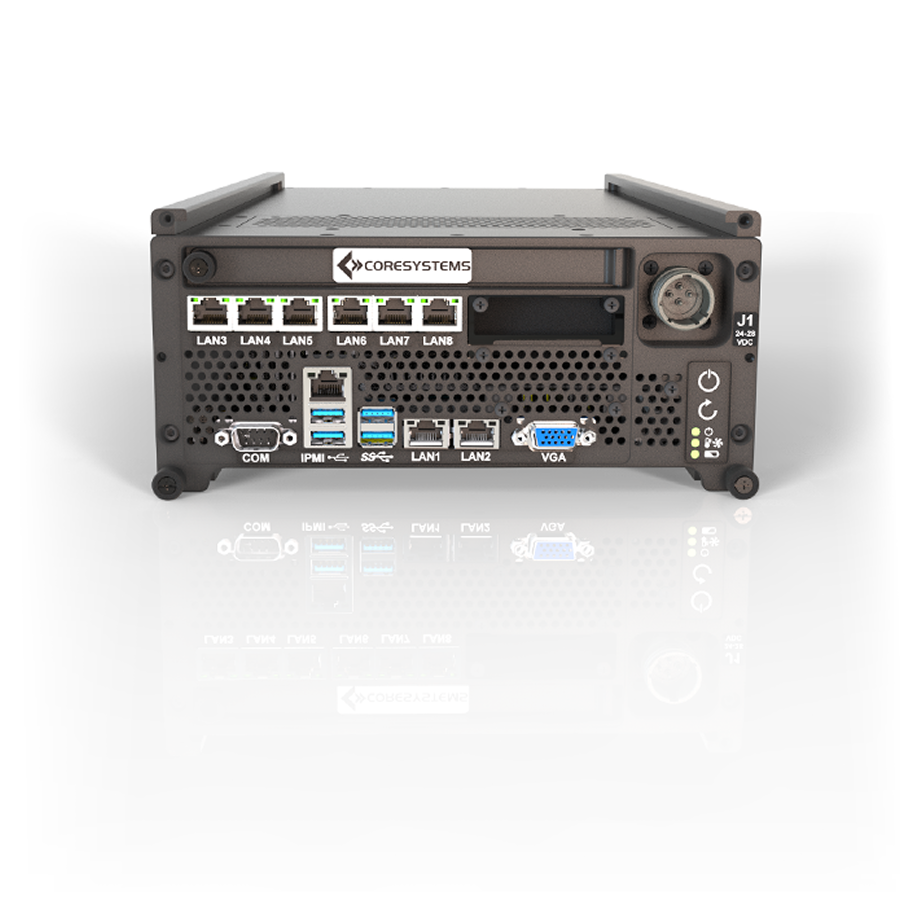

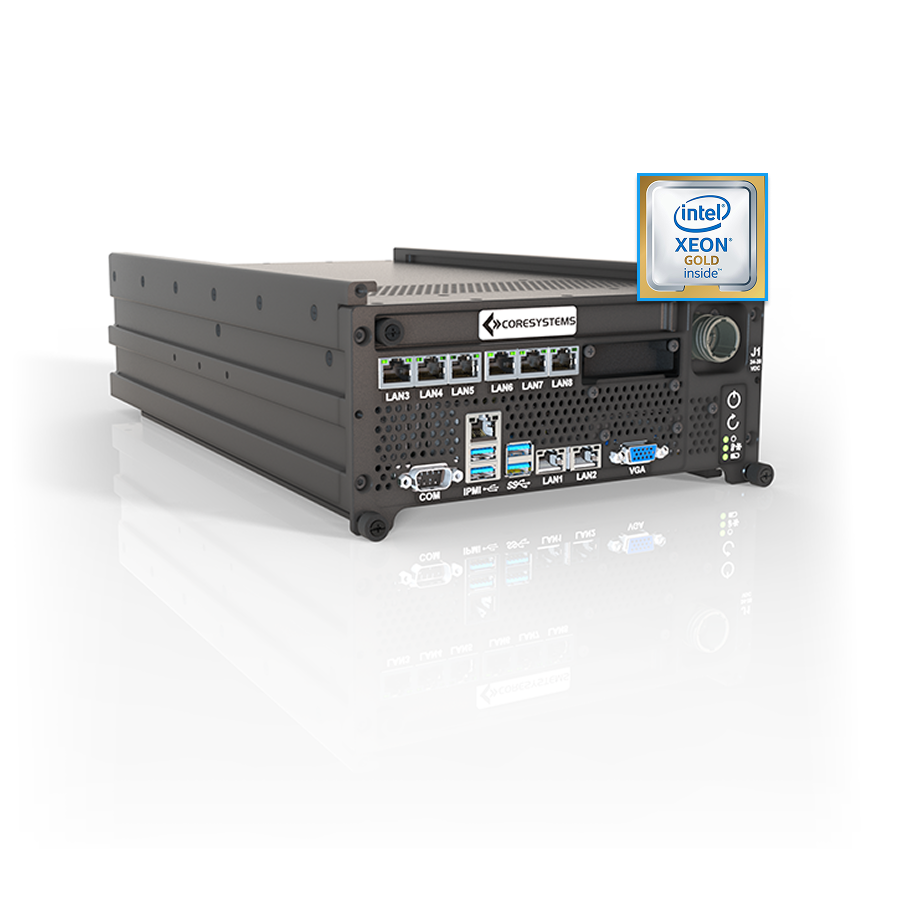

The Rugged ATMOS-CDS (Cross-Domain-Solution) is a compact, mission-scalable server designed with 7 physically independent Ethernet Controllers. Each ATMOS node features 32 physical Intel® Xeon® Gold cores with onboard UPS battery backup for uninterrupted C2 on-the-move.

  • 32x Physical Xeon® Gold Scalable Cores
  • Up to 2TB ECC RAM
  • 2x NVME Hot-Swap SSD Drives
  • NVIDIA L4 GPU Card
  • 7x Physically Independent Ethernet Ports
  • Onboard UPS Battery Backup
  • Rugged MIL-Spec Chassis
  • Stackable Chassis Rail System
  • Native 24-28VDC Power Input
  • Optional AC-DC External Power Supply

Datasheet

  • 32x Physical Xeon® Gold Scalable Cores
  • Up to 2TB ECC RAM
  • 2x NVME Hot-Swap SSD Drives
  • NVIDIA L4 GPU Card
  • 7x Physically Independent Ethernet Ports
  • Onboard UPS Battery Backup
  • Rugged MIL-Spec Chassis
  • Stackable Chassis Rail System
  • Native 24-28VDC Power Input
  • Optional AC-DC External Power Supply

Datasheet

Rugged Mission Computers

Technical Specifications
Height 3.75 in
Width 8.5 in
Depth 14.75 in
Weight 15 lbs
Power 28VDC
RAM Up to 2TB per Node
GPU NVIDIA L4 Tensor Core GPU
CPU 32x Physical XEON Scalable Gold cores
Security TPM 2.0 Module
Network 7× 1GB Independent Controller NIC Ports
Storage 2× NVME Hot-Swap SSD Drives
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

ATMOS-CDS-Datasheet.pdf

Request A Quote For The ATMOS - CDS Server

Fill out the form below for pricing and information on the ATMOS - CDS Server

Rugged Mission Computers

Related Designs

Military-Ready Design

ATMOS - CDS Server Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

ATMOS - CDS Server

Technical Specifications
Height 3.75 in
Width 8.5 in
Depth 14.75 in
Weight 15 lbs
Power 28VDC
RAM Up to 2TB per Node

ATMOS - CDS Server

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long
