ATMOS-2 - Single Node - Core Systems

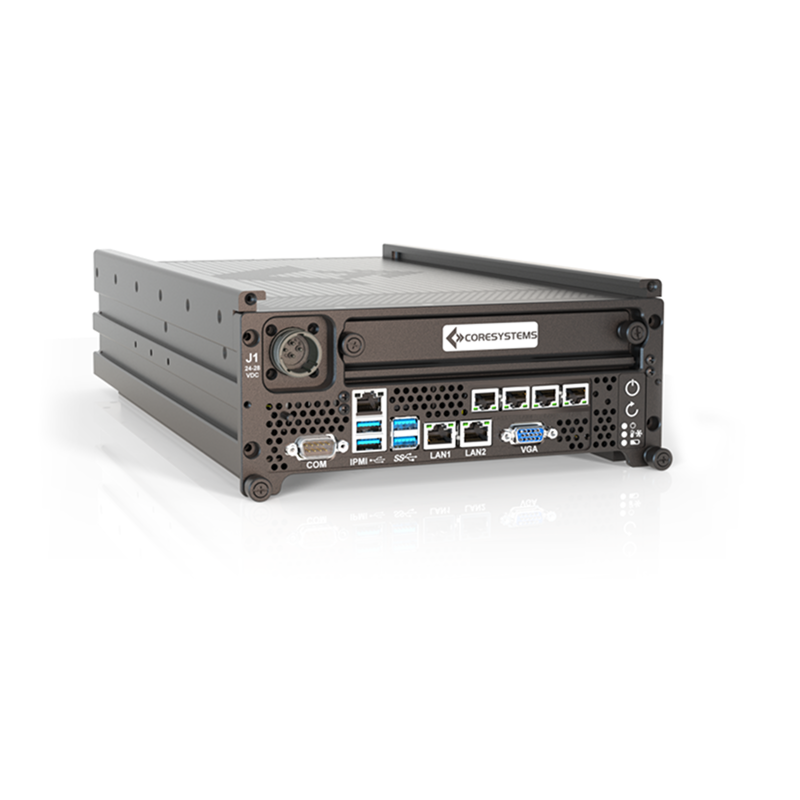

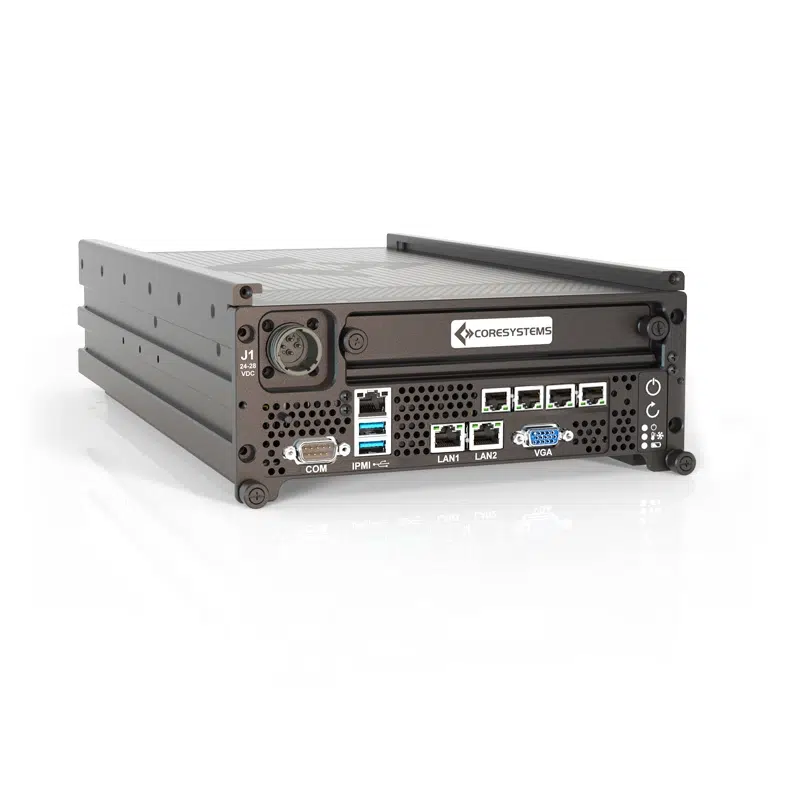

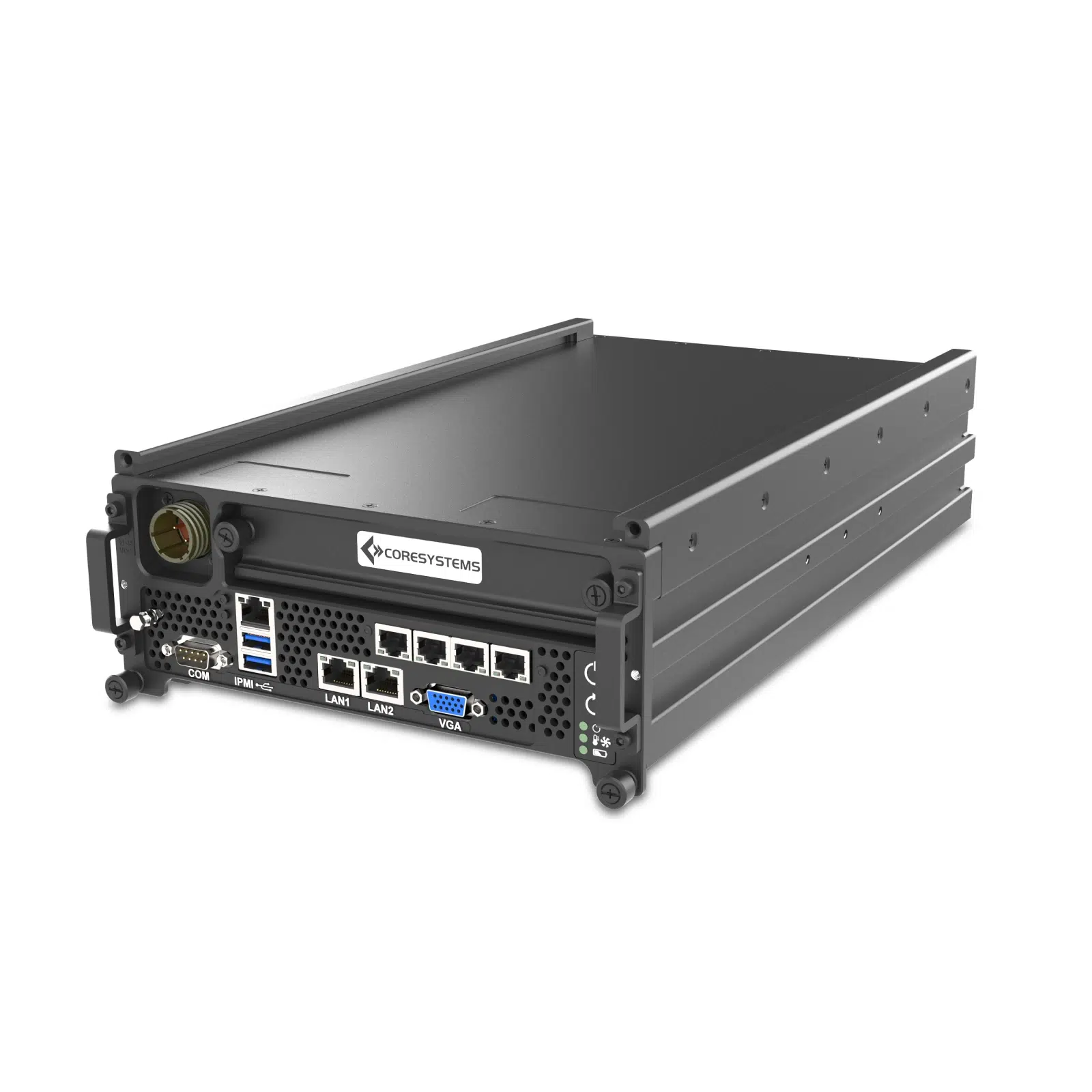

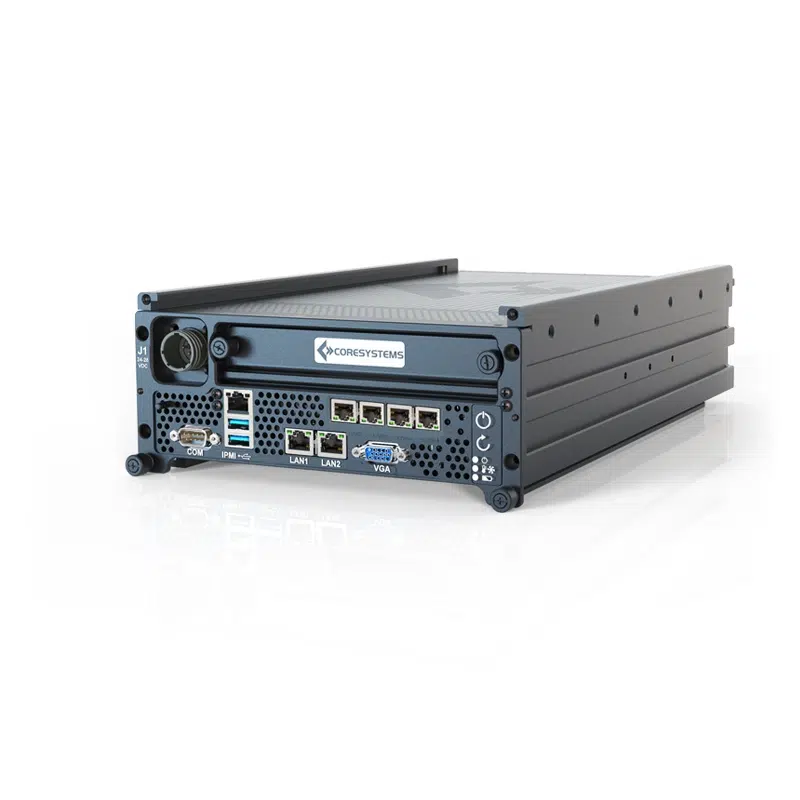

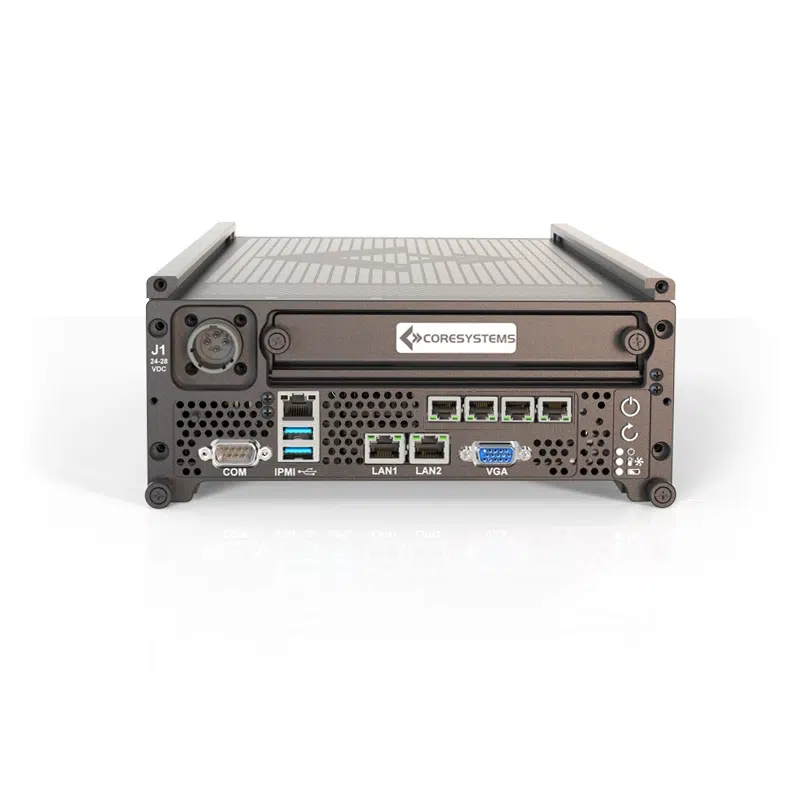

Rugged ATMOS-2 Node

Rugged Mission Computers

The NEW Rugged ATMOS-2 Node is tactical edge node with the industry's highest CPU core count (64, 96, or 144-Cores). It operates independently or connects to multiple enclaves via the ATMOS Chassis Rail System. Each node includes an onboard UPS battery for uninterrupted C2 on-the-move.

  • 64, 96 or 144 Physical Xeon® Cores
  • Up to 2TB ECC RAM
  • 4x NVME Hot-Swap SSD Drives
  • 4-Port 10GB NIC card
  • Onboard UPS Battery Backup
  • Rugged MIL-Spec Chassis
  • Stackable Chassis Rail System
  • Native 24-28VDC Power Input
  • Optional AC-DC External Power Supply
  • Under 500W Total Power Draw

Datasheet

  • 64, 96 or 144 Physical Xeon® Cores
  • Up to 2TB ECC RAM
  • 4x NVME Hot-Swap SSD Drives
  • 4-Port 10GB NIC card
  • Onboard UPS Battery Backup
  • Rugged MIL-Spec Chassis
  • Stackable Chassis Rail System
  • Native 24-28VDC Power Input
  • Optional AC-DC External Power Supply
  • Under 500W Total Power Draw

Datasheet
Height 3.5 in
Width 8.5 in
Depth 14.75 in
Weight 13 lbs
Power 24/28VDC
RAM Up to 2TB per Node
Processor 64x, 96x or 144x Intel® Xeon® Cores
Storage 4x NVME Hot-Swap SSD Drives
Network 2x 10G onboard NIC Ports; 1x 4-Port 10G NIC Card
Security TPM 2.0 Module
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
