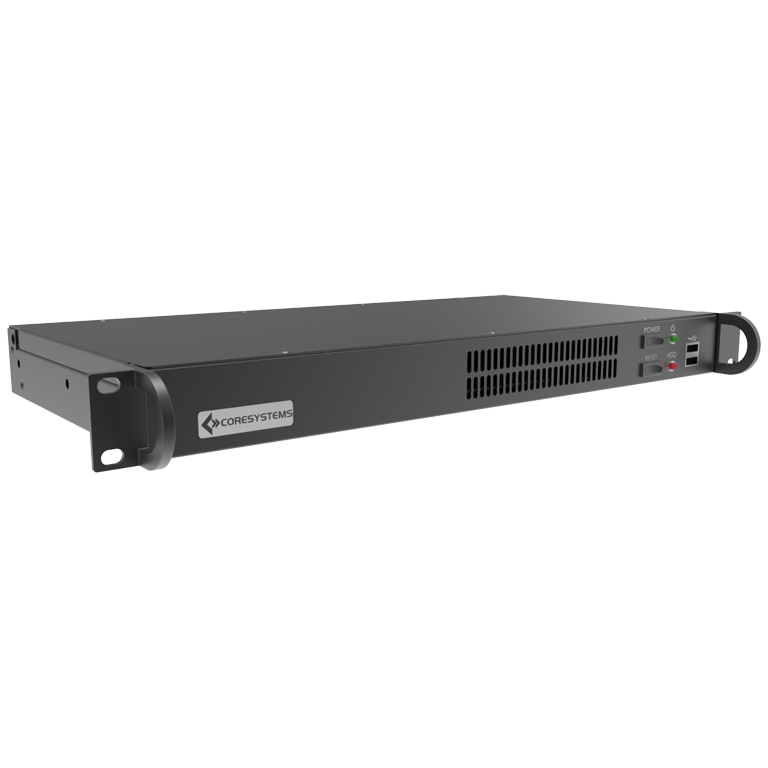

Industrial R109

Industrial Servers

The Industrial R1091 system comes with highly customizable configurations and an ultra short depth 1U server platform.

  • One (1) Rear I/O slot
  • Short Depth of 8.6″
  • Low power draw
  • Standard 24 hr Burn-In cycle
  • 1U compact industrial server
  • High-performance computing
  • Durable design
  • Supports multiple configurations
  • Low power consumption
  • Tested for reliability

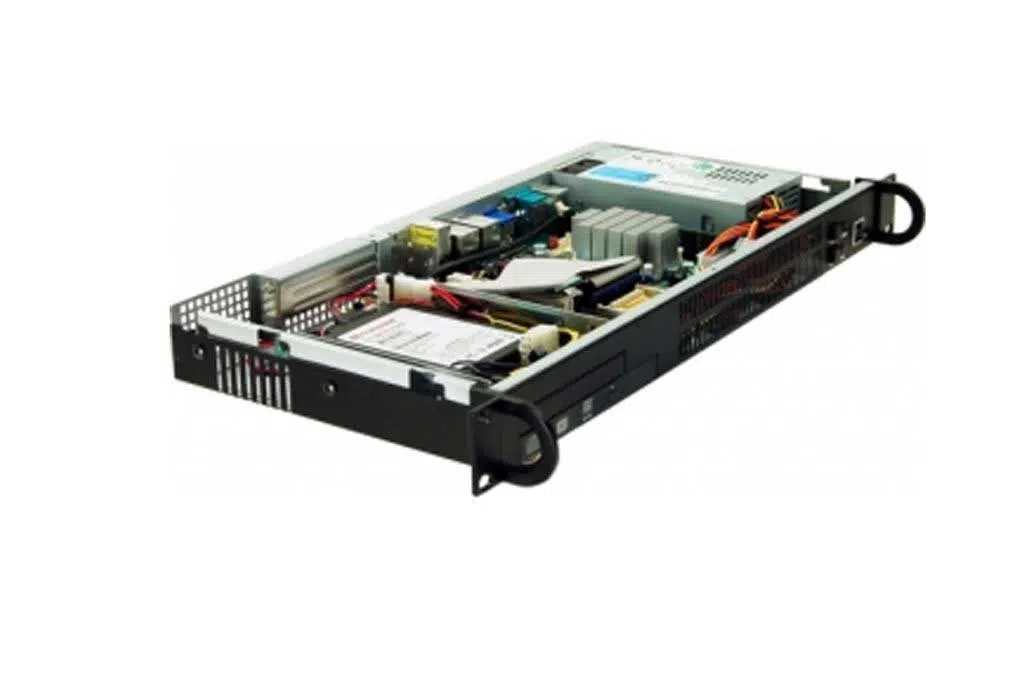

R-109-side
R-109-side

  • One (1) Rear I/O slot
  • Short Depth of 8.6″
  • Low power draw
  • Standard 24 hr Burn-In cycle
  • 1U compact industrial server
  • High-performance computing
  • Durable design
  • Supports multiple configurations
  • Low power consumption
  • Tested for reliability
Height 1.75 in
Width 17.00 in
Depth 8.7 in
Weight 9 lbs
CPU 13th Gen Intel Core i9 Processor, 4th Gen Intel Xeon Scalable Processor
RAM 256GB
Expansion Slots Qty: 1, full height
External Bays 2
USB Ports 8
PCIE Expansion Multiple slot combinations available
Cooling 1 x 40mm (15.3 CFM ea.) Rear Mount Optional
Power 100/240VAC
System Board Mini-ITX
Environmental Specifications Tested to meet military environmental specifications.
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Short-Depth Design

Space-saving design without sacrificing power and speed.

Application-Specific

Built Rugged to Last Long

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Coming Soon

Related Product Designs

All products can be customized to your specs and requirements.

Request A Quote Today

Fill out the form for pricing and information

Military-Ready Design

Industrial R109 Features

Short-Depth

Space-saving design built for your application.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Industrial R109

Technical Specifications
Height 1.75 in
Width 17.00 in
Depth 8.7 in
Weight 9 lbs

Industrial R109

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Short-Depth Design

Space-saving design without sacrificing power and speed.

Application-Specific

Built Rugged to Last Long

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Industrial R109
