Rugged 3-Node ATMOS

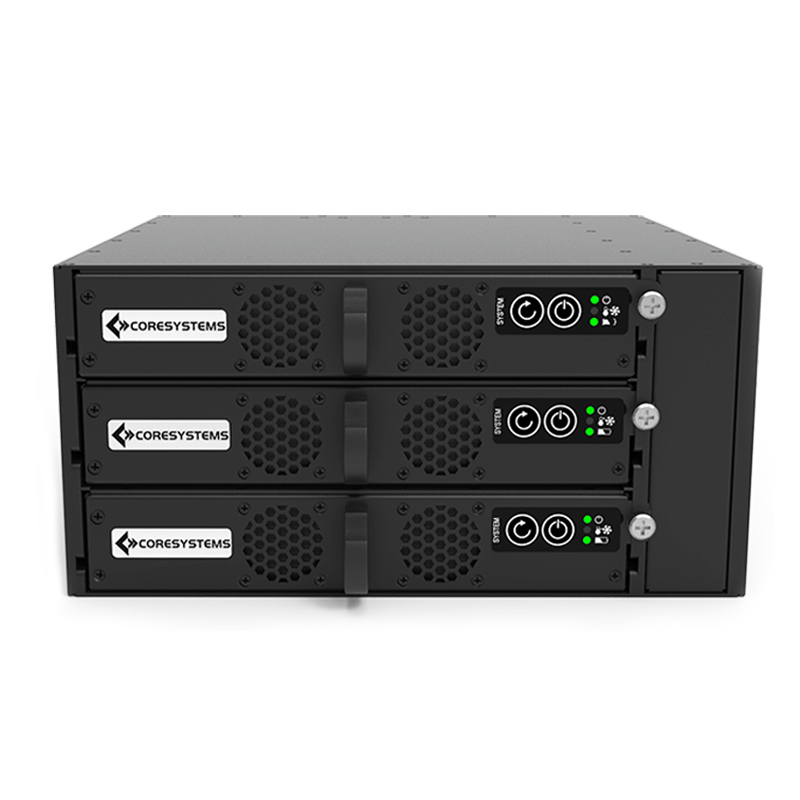

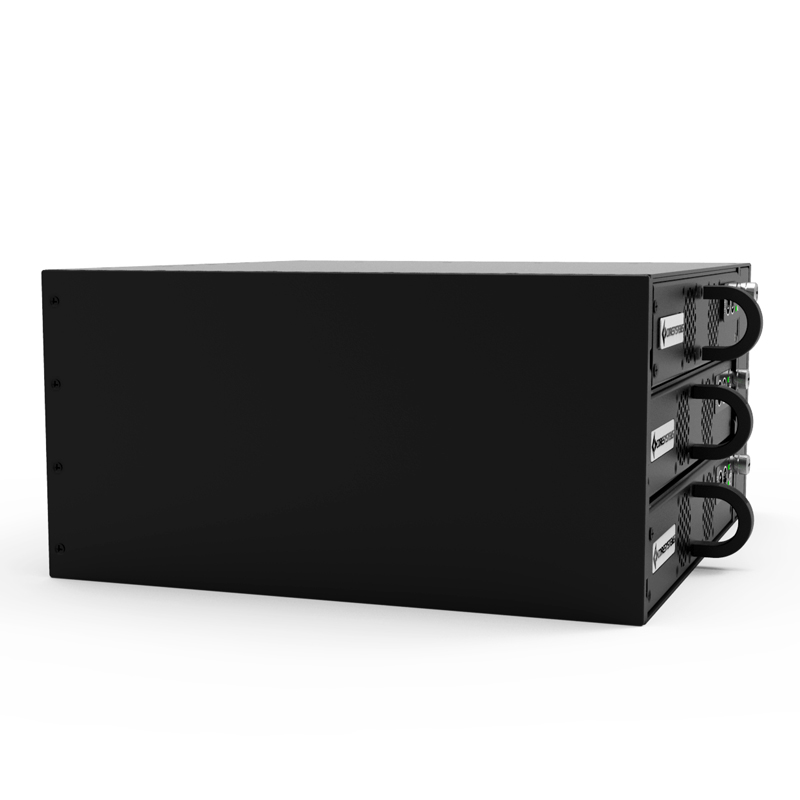

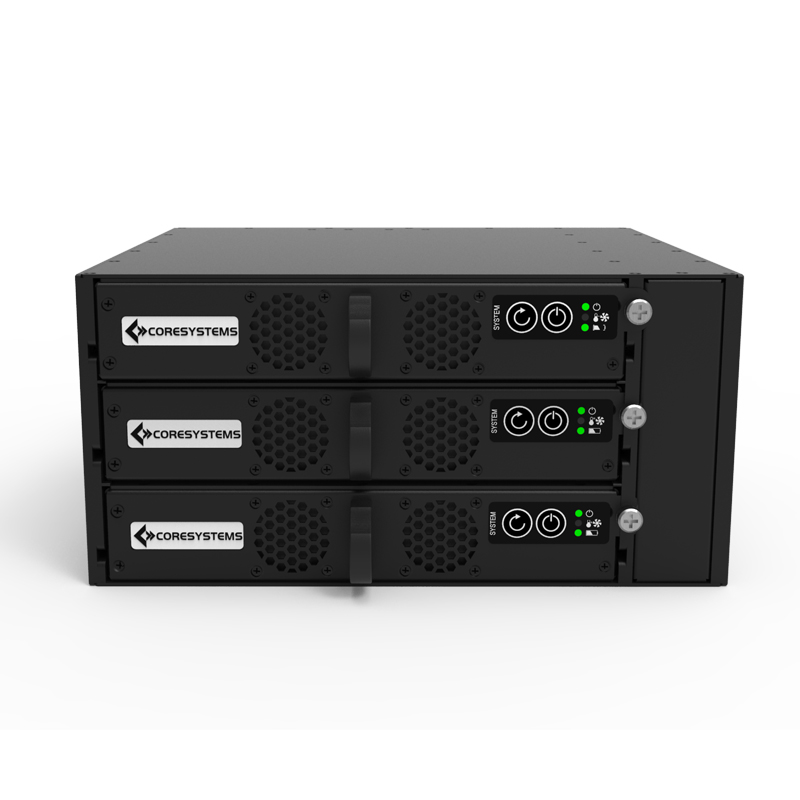

The rugged 3-NODE system from Core Systems has three independent systems that are fully sealed and conduction cooled.

  • Triple Computer in One Chasis

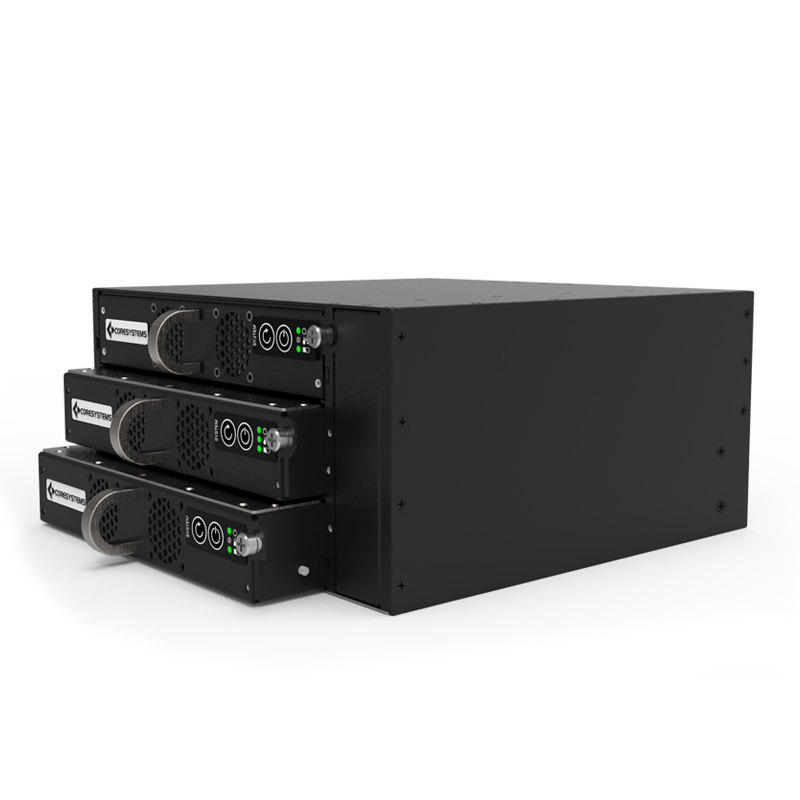

  • Independent Removable Sealed Trays
  • Cisco ESS-3300 8-Port Switch
  • 24x Cores

Datasheet

  • Triple Computer in One Chasis
  • Independent Removable Sealed Trays
  • Cisco ESS-3300 8-Port Switch
  • 24x Cores

Datasheet

Rugged Mission Computers

Technical Specifications
Height 5.6 in
Width 11.5 in
Depth 11.0 in
Weight 20 lbs
Power 24-28VDC Input Power per node
RAM 256GB REG ECC RAM (per node); 1024GB REG ECC RAM (per system)
Processor Intel E3845 CPU - 1.91GHz Quad-core - 10W TDP (per unit)
Storage 4TB NVMe (per node); 12TB NVMe (per system)
Cores 8x Xeon Cores (per node); 24x Xeon Cores (per system)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

2021-Core-Systems-Datasheet-3-Node-System.pdf

Rugged Mission Computers

Related Designs

Military-Ready Design

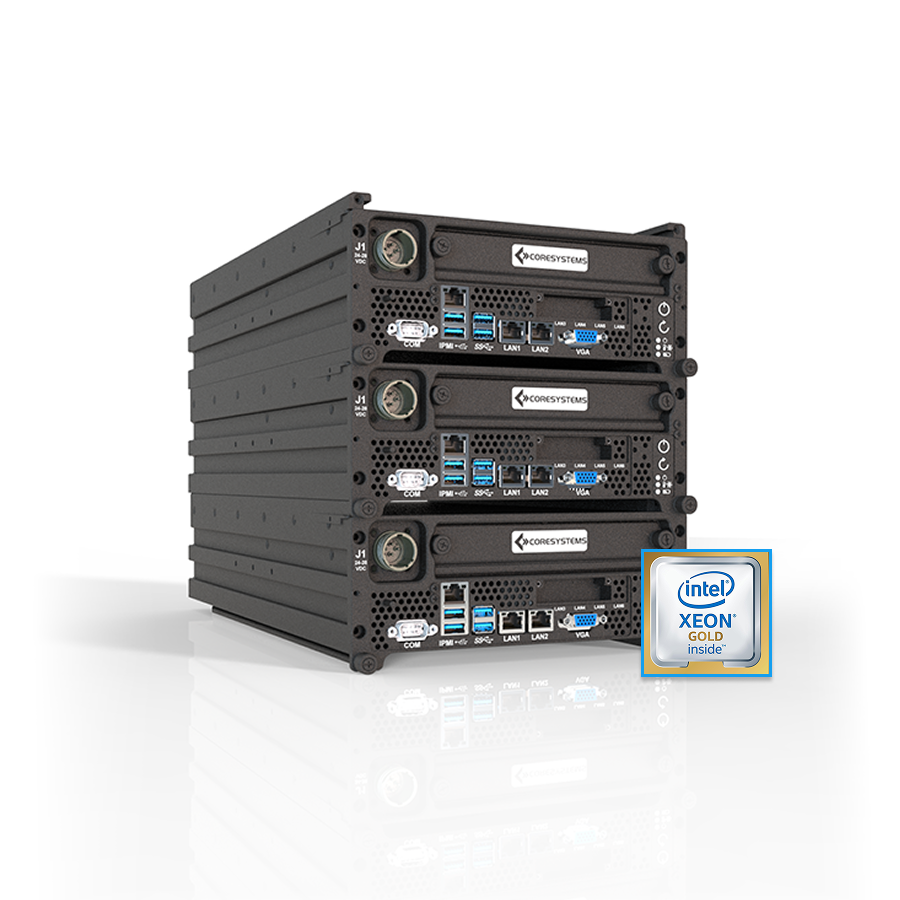

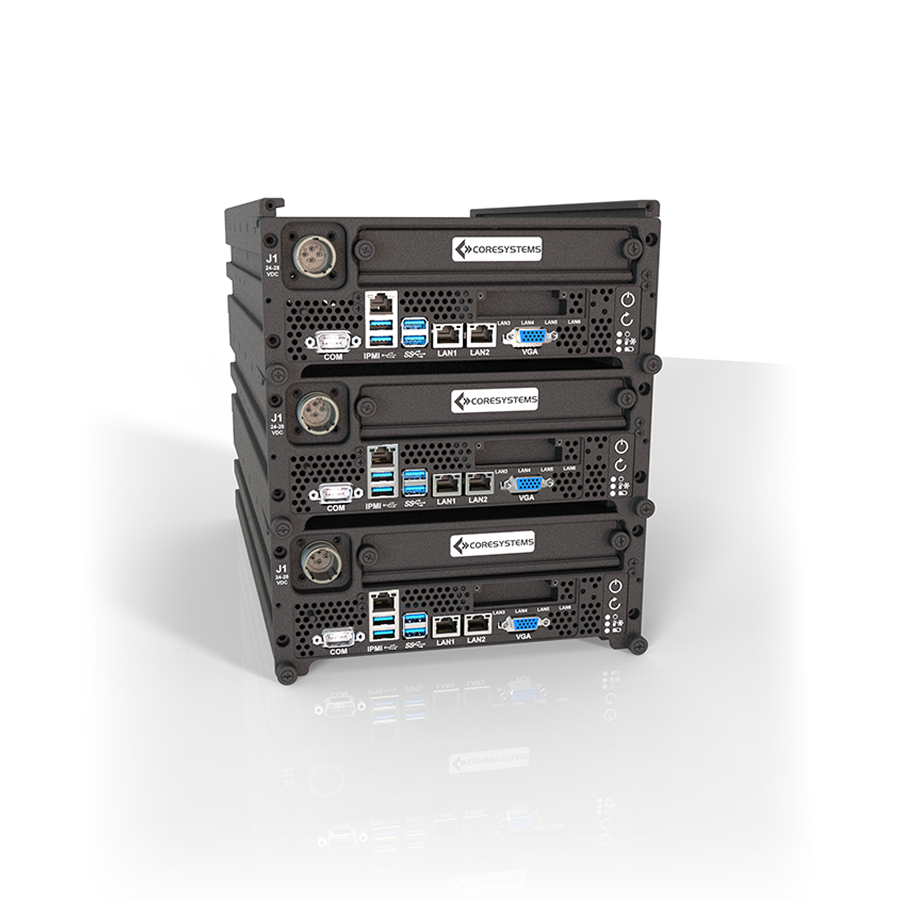

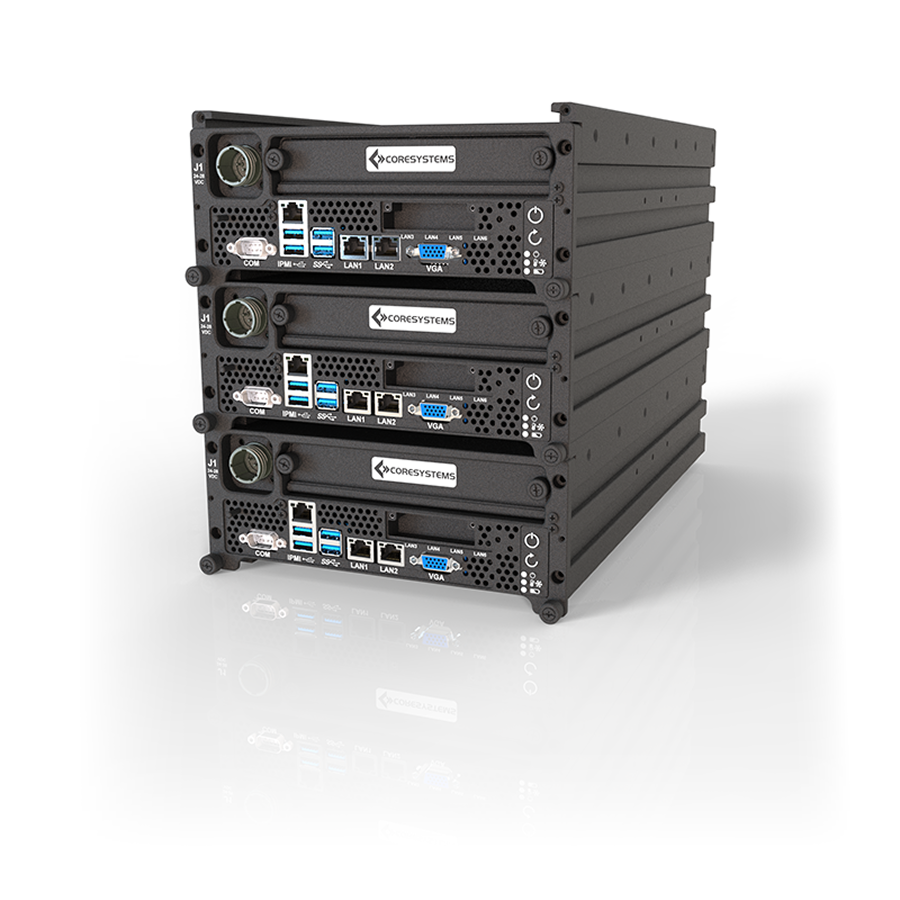

Rugged 3-Node ATMOS Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged 3-Node ATMOS

Technical Specifications
Height 5.6 in
Width 11.5 in
Depth 11.0 in
Weight 20 lbs
Power 24-28VDC Input Power per node
RAM 256GB REG ECC RAM (per node); 1024GB REG ECC RAM (per system)
Processor Intel E3845 CPU - 1.91GHz Quad-core - 10W TDP (per unit)
Storage 4TB NVMe (per node); 12TB NVMe (per system)

Rugged 3-Node ATMOS

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

Rugged 3-Node ATMOS
