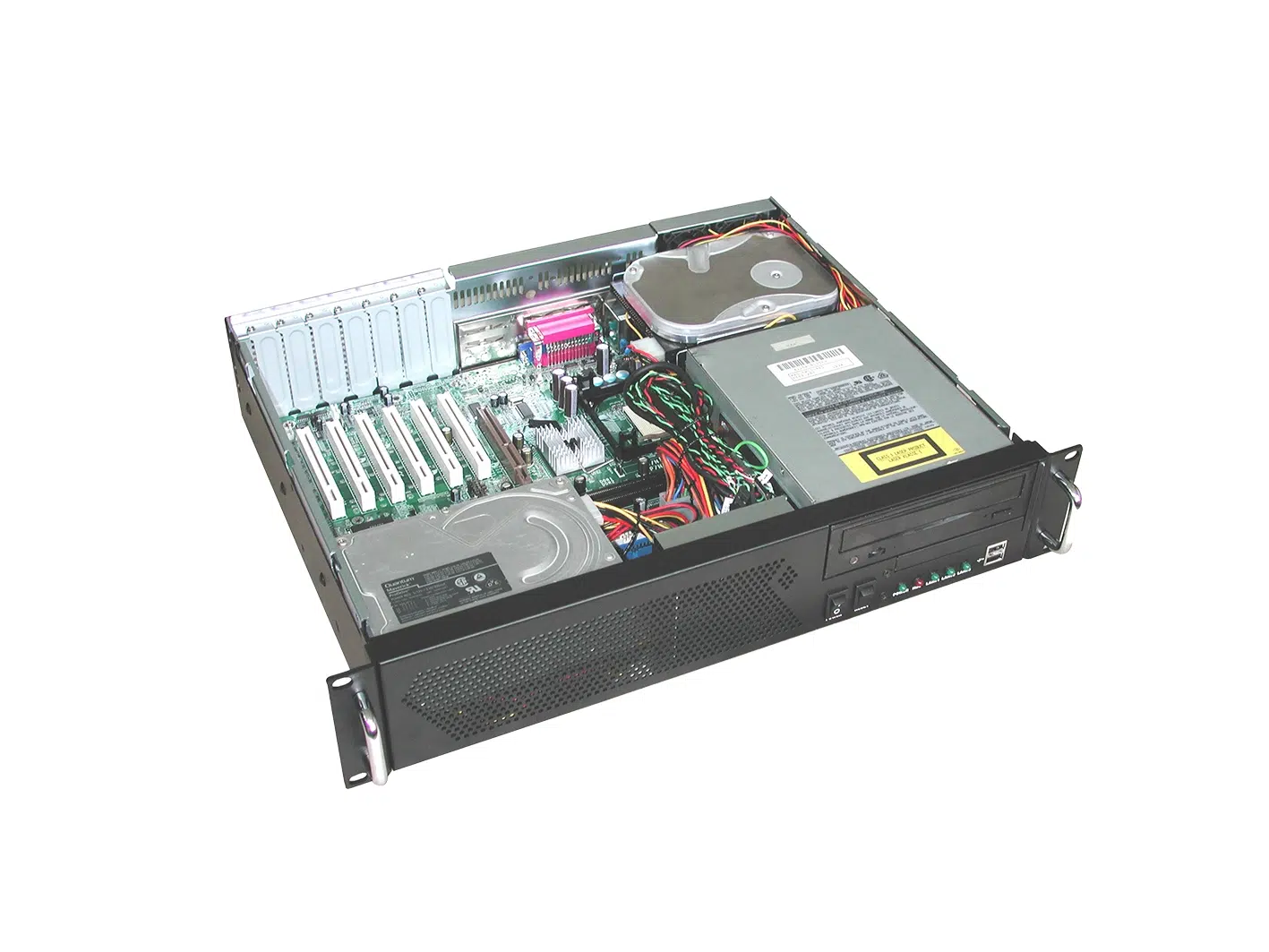

Industrial R214

The R214 is a robust, 2U server designed for industrial environments that demand space efficiency and powerful performance. The R214 supports modern Intel Xeon processors, delivering exceptional computing power for data-intensive tasks.

Industrial-Grade Durability
Modern Processor Support
GPU Support
Efficient Cooling
Storage Flexibility

3.50" Height
13.9" Depth
19.00" Width
18.5 lbs Weight


Height	3.50 in
Width	19.00 in
Depth	13.9 in
Weight	18.5 lbs
CPU	13th Gen Intel Core i9 Processor, 4th Gen Intel Xeon Scalable Processor
RAM	256GB, 512GB
Expansion Slots	Qty: 7, low profile
USB Ports	2
Cooling	2x (80mm = 42.5CFM ea.) & 2x (40x 28mm = 15CFM ea.)( Optional) Fans
Power	500W AC
System Board	Extended ATX Motherboard
Environmental Specifications	Tested to meet military environmental specifications.

Height

3.50 in

Width

19.00 in

Depth

13.9 in

Weight

18.5 lbs

CPU

13th Gen Intel Core i9 Processor, 4th Gen Intel Xeon Scalable Processor

RAM

256GB, 512GB

Expansion Slots

Qty: 7, low profile

USB Ports

Cooling

2x (80mm = 42.5CFM ea.) & 2x (40x 28mm = 15CFM ea.)( Optional) Fans

Power

500W AC

System Board

Extended ATX Motherboard

Environmental Specifications

Tested to meet military environmental specifications.


Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)

Environmental Specifications

Tested to meet military environmental specifications.

Operational Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Storage Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Humidity

MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)

Altitude

MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport

Vibration

MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis

Shock

MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock

Other

MIL-STD-461F CE & RE emissions (with 461 filter option)

Industrial R214 Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Technical Specifications


Height	3.50 in
Width	19.00 in
Depth	13.9 in
Weight	18.5 lbs

Height

3.50 in

Width

19.00 in

Depth

13.9 in

Weight

18.5 lbs

Military Testing


Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)

Operational Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Storage Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Humidity

MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)

Altitude

MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport

Vibration

MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis

Shock

MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock

Other

MIL-STD-461F CE & RE emissions (with 461 filter option)
