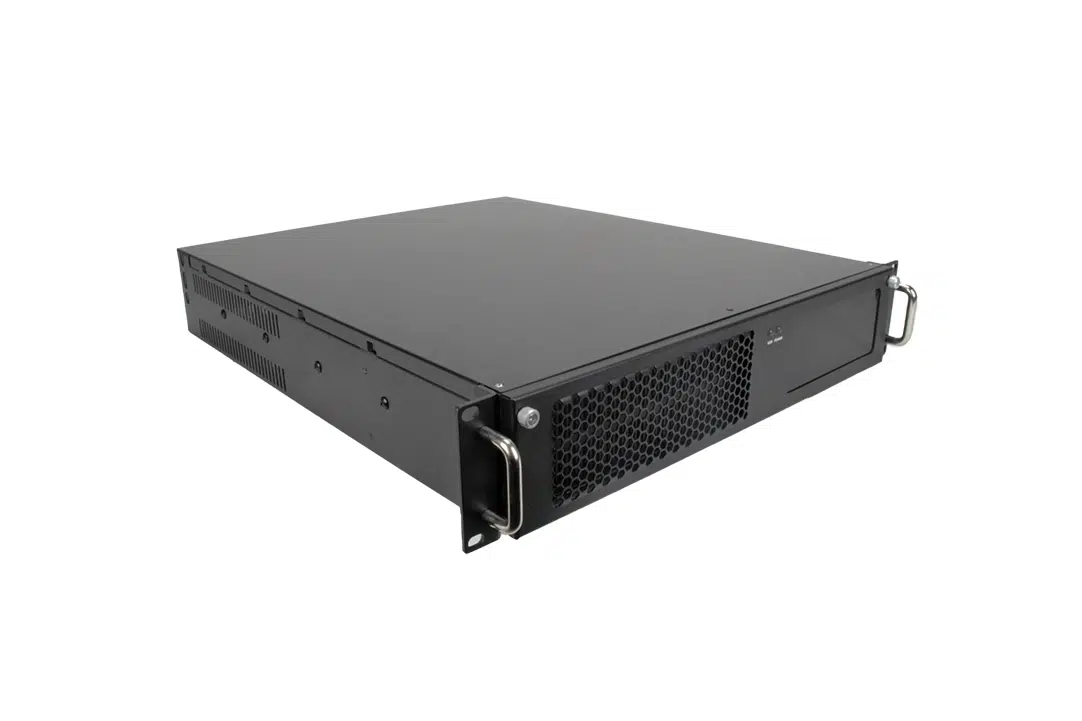

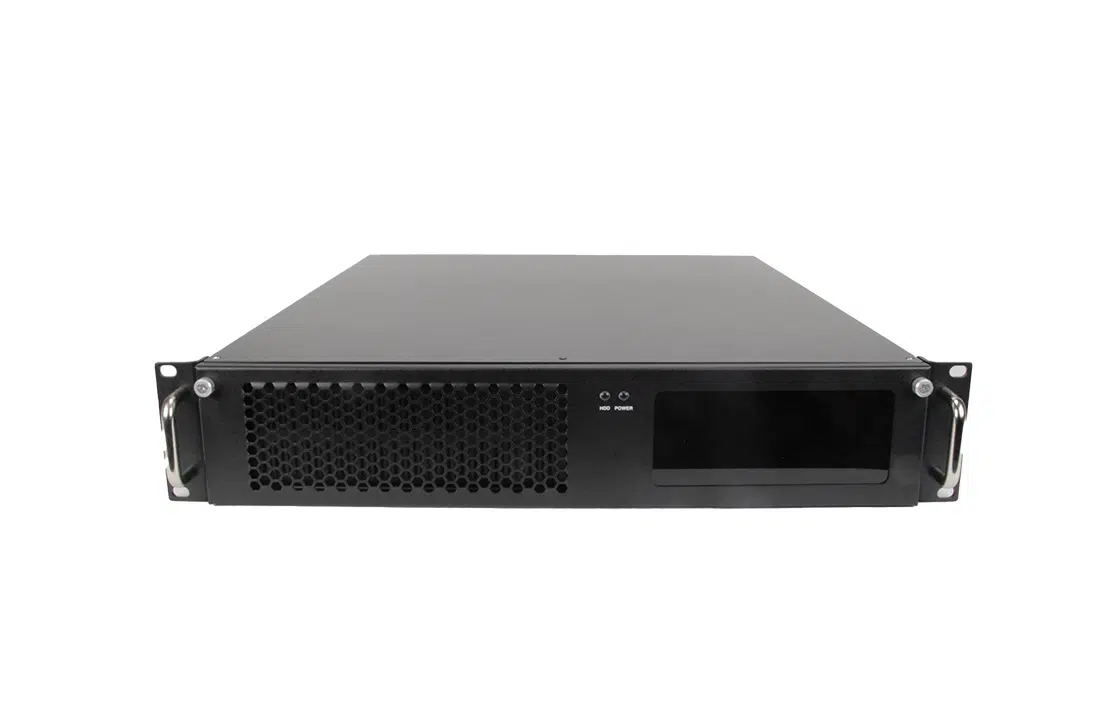

Industrial R220

Industrial Servers

The R220 is a robust, 2U server designed for industrial environments that demand space efficiency and powerful performance. The R220 supports modern Intel Xeon processors, delivering exceptional computing power for data-intensive tasks.

2U Industrial-Grade Durability
Modern Processor Support
GPU Support
Efficient Cooling
Storage Flexibility
Built for high-efficiency operations
Supports multiple networking configurations
Ruggedized for tough environments

3.50" Height
20.1" Depth
19.00" Width
22.7 lbs Weight


Height	3.50 in
Width	19.00 in
Depth	20.1 in
Weight	22.7 lbs
CPU	13th Gen Intel Core i9 Processor, 4th Gen Intel Xeon Scalable Processor
RAM	256GB, 512GB
Expansion Slots	Qty: 3, full height
USB Ports	2
Cooling	3 x (80mm=42.5CFM ea.) Fans
Power	600W AC
System Board	Extended ATX Motherboard
Environmental Specifications	Tested to meet military environmental specifications.

Height

3.50 in

Width

19.00 in

Depth

20.1 in

Weight

22.7 lbs

CPU

13th Gen Intel Core i9 Processor, 4th Gen Intel Xeon Scalable Processor

RAM

256GB, 512GB

Expansion Slots

Qty: 3, full height

USB Ports

Cooling

3 x (80mm=42.5CFM ea.) Fans

Power

600W AC

System Board

Extended ATX Motherboard

Environmental Specifications

Tested to meet military environmental specifications.


Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)

Environmental Specifications

Tested to meet military environmental specifications.

Operational Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Storage Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Humidity

MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)

Altitude

MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport

Vibration

MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis

Shock

MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock

Other

MIL-STD-461F CE & RE emissions (with 461 filter option)
