Rugged HPE Servers

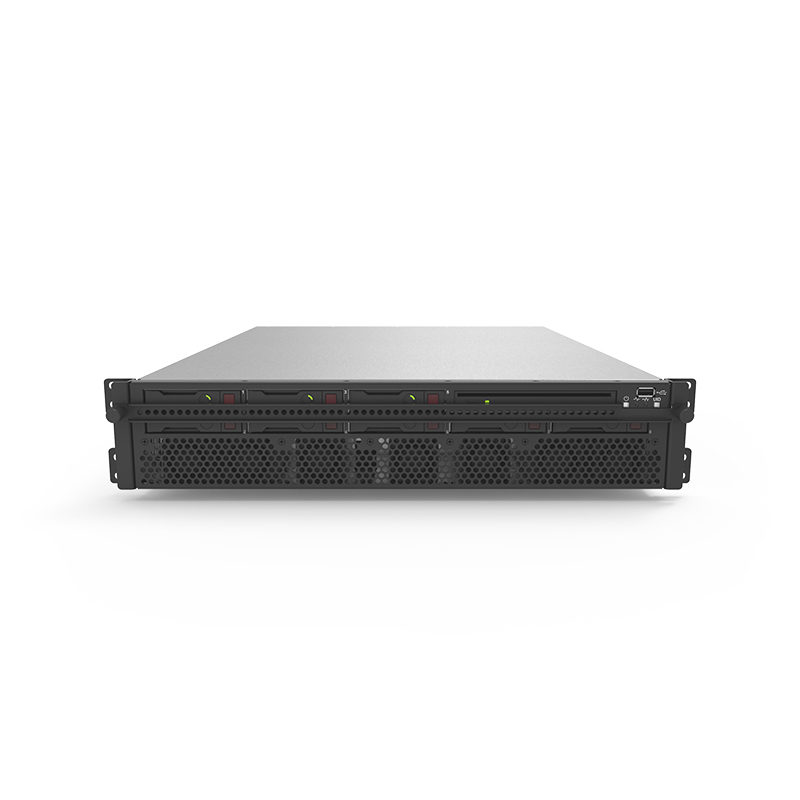

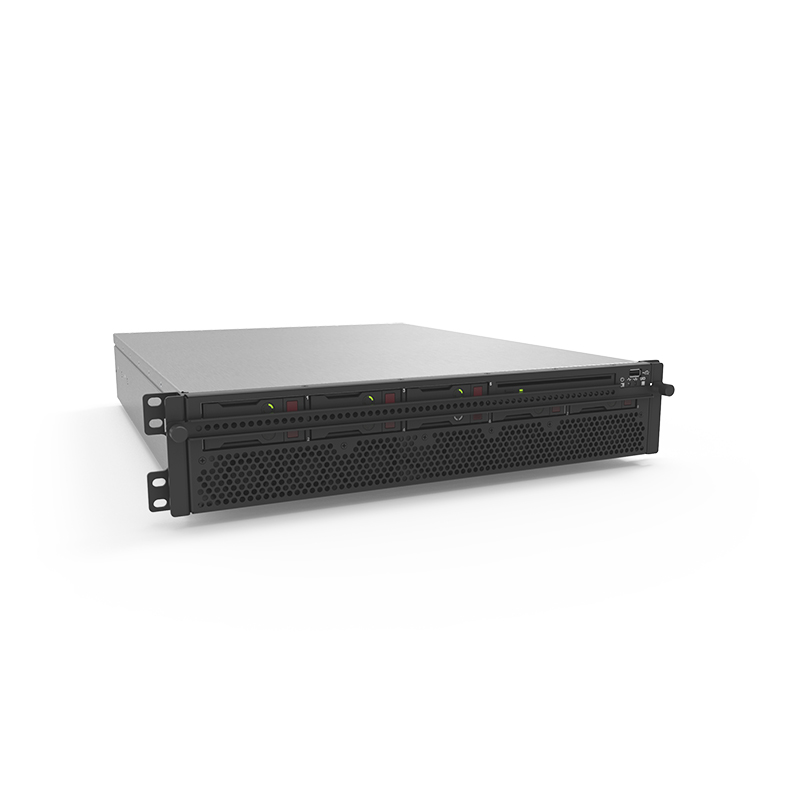

Rugged 2U DL360RS

The Rugged DL360RS 2U server is based on the HPE industry leading DL360 Server platform and has a 21.00″ short depth chassis.

  • Redefines dense compute by delivering security, agility, and unmatched expandability for various military environments.
  • Includes best memory and I/O expandability—packed in a rugged 2U/2-socket rackmount design.
  • Supports the Intel® Xeon® Processor Scalable Family with up to 28 cores, plus 2666 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max.
  • 12 NVDIMMs and 10 NVMe

Datasheet

  • Redefines dense compute by delivering security, agility, and unmatched expandability for various military environments.
  • Includes best memory and I/O expandability—packed in a rugged 2U/2-socket rackmount design.
  • Supports the Intel® Xeon® Processor Scalable Family with up to 28 cores, plus 2666 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max.
  • 12 NVDIMMs and 10 NVMe

Datasheet

Rugged HPE Servers

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 21.00 in
Weight 31.00 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 4th Gen Intel Dual Xeon Scalable Processor, 13th Gen Intel Core i9 Processor
USB Ports 3
Power 500W AC, 800W, 1600W
Chassis Type Lightweight aluminum chassis
Networking 4x1GbE embedded + Choice of FlexibleLOM or Standup cards
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

2019-Core-Systems-Datasheet-2U-G10-DL360RS.pdf

Rugged HPE Servers

Related Designs

Military-Ready Design

Rugged 2U DL360RS Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged 2U DL360RS

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 21.00 in
Weight 31.00 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 4th Gen Intel Dual Xeon Scalable Processor, 13th Gen Intel Core i9 Processor
USB Ports 3
Power 500W AC, 800W, 1600W
Chassis Type Lightweight aluminum chassis

Rugged 2U DL360RS

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

Rugged 2U DL360RS
