Rugged HPE Servers

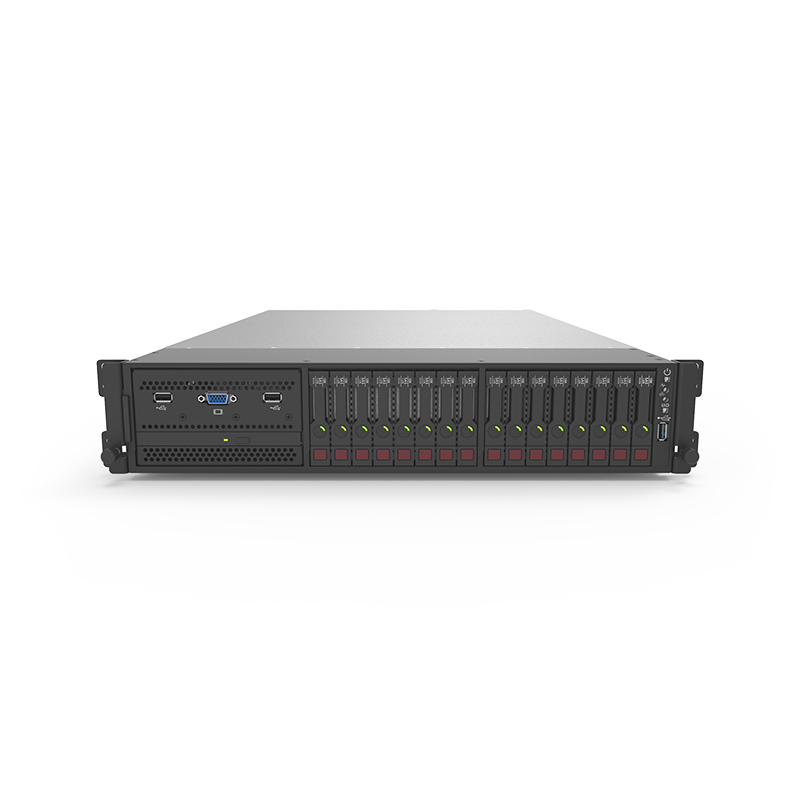

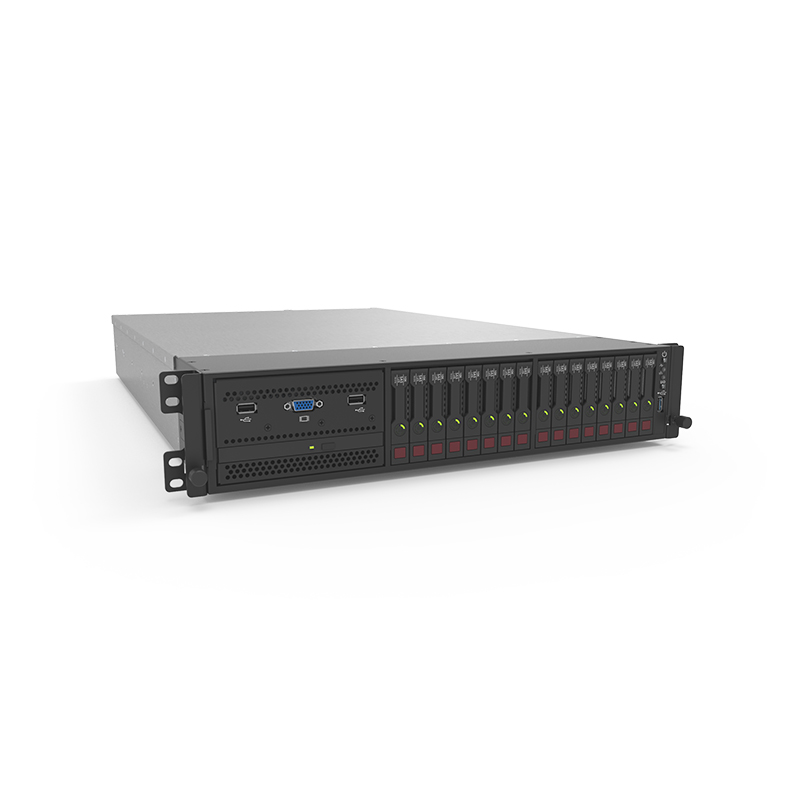

Rugged 2U DL380RS

The Rugged DL380RS T-Series 2U server is a rugged short-depth server from HPE built by Core Systems and made to handle extreme environments of all types. The DL380RS is based on the world's best-selling server and includes the latest GEN10 technology.

  • Includes latest Intel® E5-2600v4 processors and 2400MHz DDR4 memory.
  • Designed to adapt to the needs of any environment, offering enhanced reliability, serviceability, and continuous availability.
  • The DL380RS supports Microsoft® Windows® and Linux® operating systems, as well as VMware® and Citrix® virtualization environments.

Datasheet

  • Includes latest Intel® E5-2600v4 processors and 2400MHz DDR4 memory.
  • Designed to adapt to the needs of any environment, offering enhanced reliability, serviceability, and continuous availability.
  • The DL380RS supports Microsoft® Windows® and Linux® operating systems, as well as VMware® and Citrix® virtualization environments.

Datasheet

Rugged HPE Servers

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 26.00 in
Weight 31.00 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 4th Gen Intel Dual Xeon Scalable Processor, 13th Gen Intel Core i9 Processor
External Bays 24
USB Ports 4
Power 100/240VAC
Expansion Slots Qty: 6, PCIe
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

2019-Core-Systems-Datasheet-3U-G10-DL380RS.pdf

Rugged HPE Servers

Related Designs

Military-Ready Design

Rugged 2U DL380RS Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged 2U DL380RS

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 26.00 in
Weight 31.00 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 4th Gen Intel Dual Xeon Scalable Processor, 13th Gen Intel Core i9 Processor
External Bays 24
USB Ports 4
Power 100/240VAC
Expansion Slots Qty: 6, PCIe

Rugged 2U DL380RS

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

Rugged 2U DL380RS
