Rugged 2U MLD-2

Rugged Displays

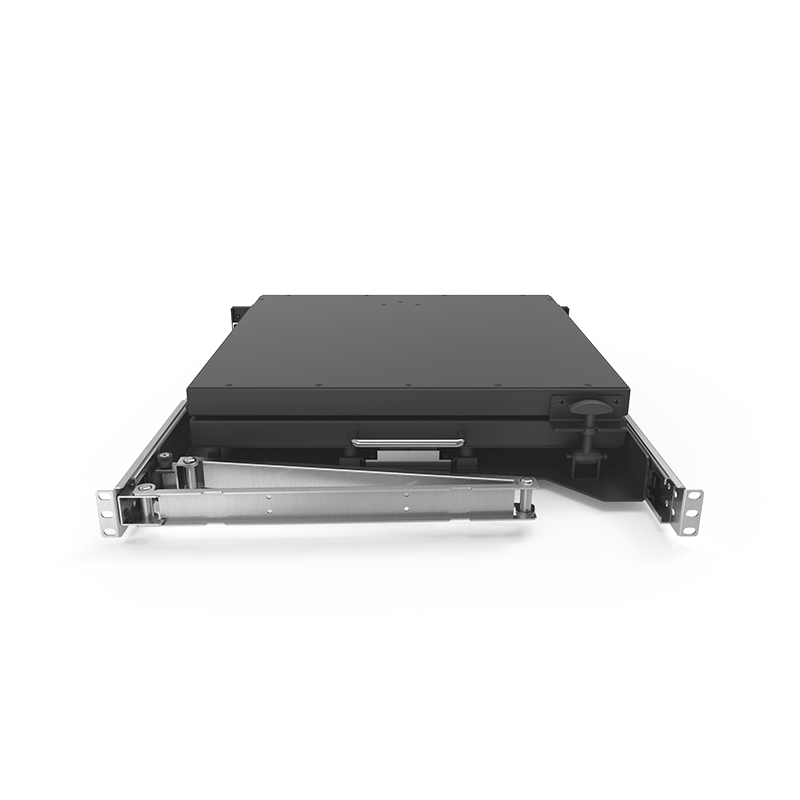

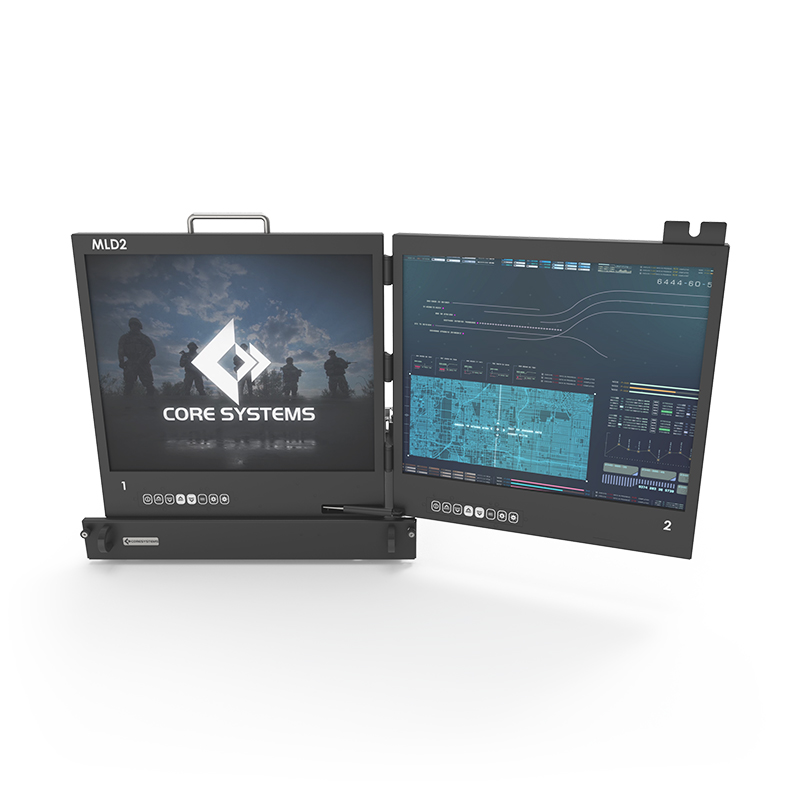

The rugged 2U MLD-2 is a rugged rackmount LCD with side-by-side Dual 19″ LED Displays that has been tested to meet military standards.

  • Dual 19” display
  • Native pixel resolution of 1280 x 1024
  • Anti-reflective glass.
  • Utilizes 2U heigh
  • Less than 20 inches deep.
  • 2x HD Displays
  • Application-Specific Design
  • Military-Grade Design

Datasheet

  • Dual 19” display
  • Native pixel resolution of 1280 x 1024
  • Anti-reflective glass.
  • Utilizes 2U heigh
  • Less than 20 inches deep.
  • 2x HD Displays
  • Application-Specific Design
  • Military-Grade Design

Datasheet
Height 3.50 in
Width 19.00 in
Depth 20.00 in
Weight 28.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 2x
Brightness 250
Colors 16.7M
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Related Product Designs

All products can be customized to your specs and requirements.
