Rugged Displays

Rugged 2U MLD-2K

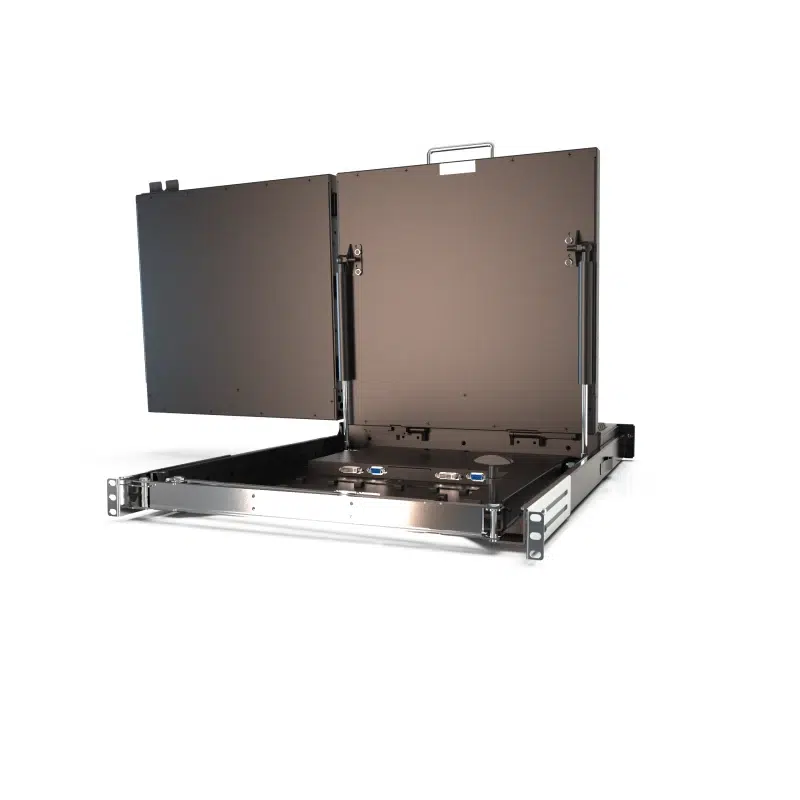

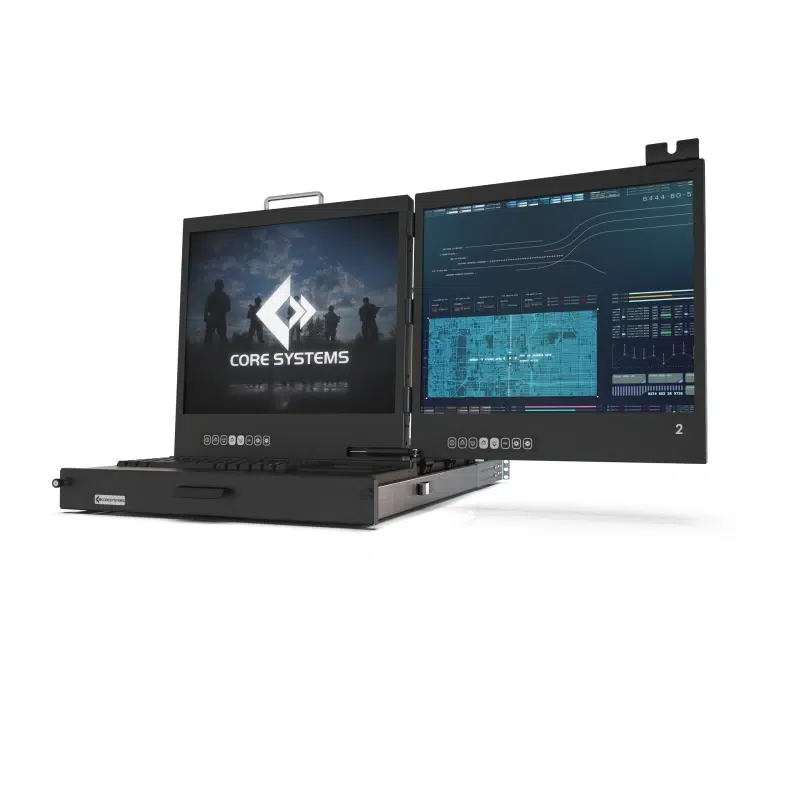

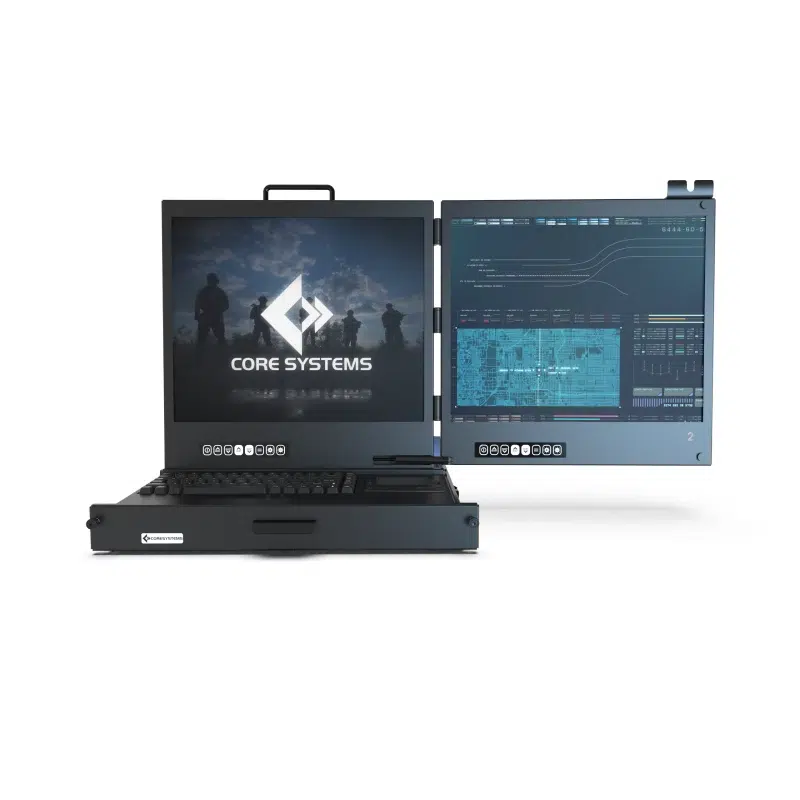

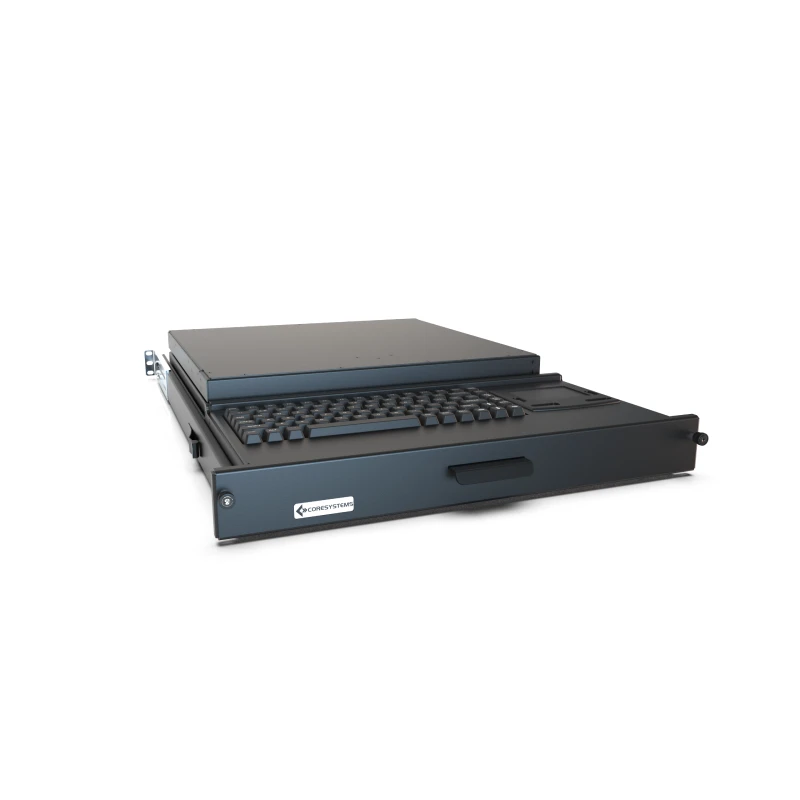

The rugged MLD2K from Core Systems features dual 19" LCD displays in a side-by-side configuration.

  • Dual 19″ displays with a native pixel resolution of 1280 x 1024.
  • Includes independent DVI and VGA inputs.
  • Options for A/R protective glass, EMI filters, and a resistive or capacitive touchscreen.
  • Utilizes 2U height and is 28 inches deep.

Datasheet

  • Dual 19″ displays with a native pixel resolution of 1280 x 1024.
  • Includes independent DVI and VGA inputs.
  • Options for A/R protective glass, EMI filters, and a resistive or capacitive touchscreen.
  • Utilizes 2U height and is 28 inches deep.

Datasheet

Rugged Displays

Technical Specifications
Height 3.50 in
Width 19.00 in
Depth 28.00 in
Weight 39.50 lbs
Resolution 1280 x 1024
Display Size 19
Screens 2x
Brightness 250
Colors 16.7M
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

2019-Core-Systems-Datasheet-MLD2K.pdf

Rugged Displays

Related Designs

Military-Ready Design

Rugged 2U MLD-2K Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Latest Technology

Your system comes equipped with the most powerful computing technology in the industry.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Rugged 2U MLD-2K

Technical Specifications
Height 3.50 in
Width 19.00 in
Depth 28.00 in
Weight 39.50 lbs
Resolution 1280 x 1024
Display Size 19
Screens 2x
Brightness 250
Colors 16.7M

Rugged 2U MLD-2K

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

Rugged 2U MLD-2K
