Rugged 3U MLD-3

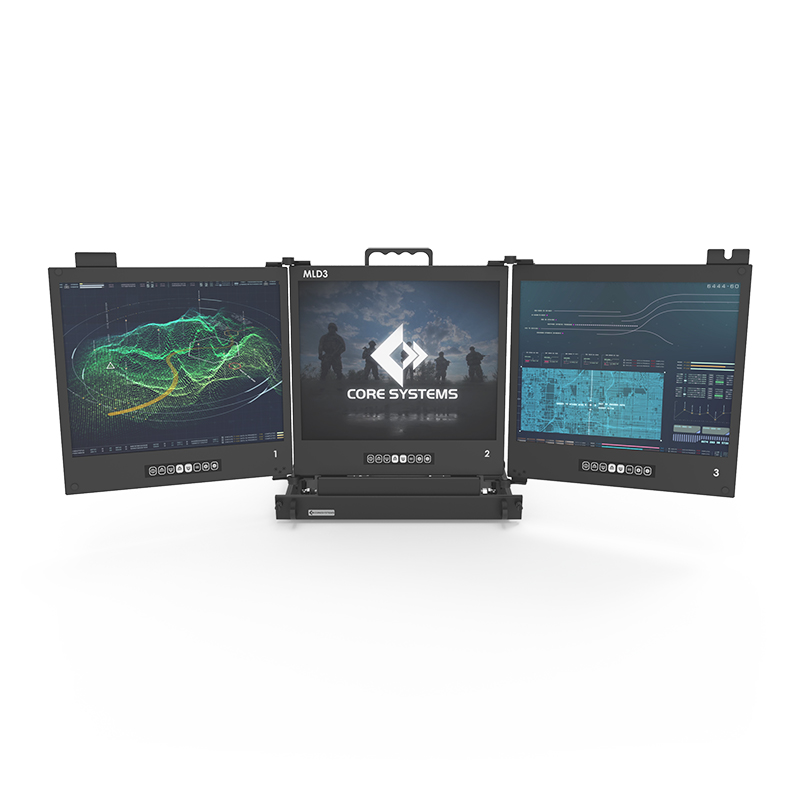

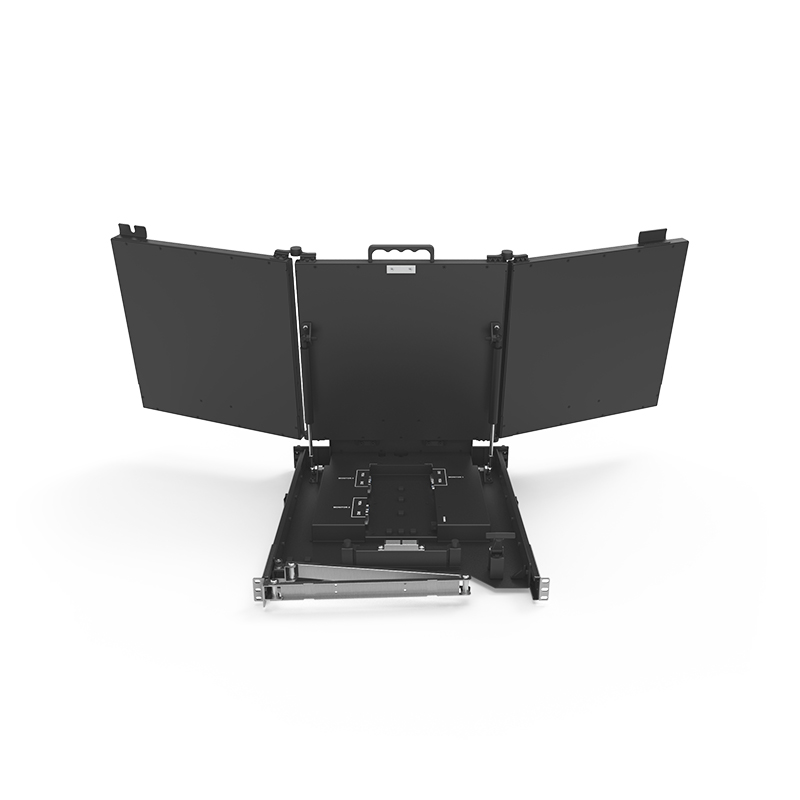

The rugged MLD-3 is a 3U Rackmount LCD with Triple 19" LED Displays and is tested to perform in the harshest environments the military is faced with.

  • 3x 19” displays with a native pixel resolution of 1280 x 1024.
  • 3x inputs for both DVI-D and VGA signals.
  • When all three monitors are fully extended, the MLD3K provides a true panoramic viewing experience.
  • Utilizes 3U height and is 20 inches deep.

Datasheet

  • 3x 19” displays with a native pixel resolution of 1280 x 1024.
  • 3x inputs for both DVI-D and VGA signals.
  • When all three monitors are fully extended, the MLD3K provides a true panoramic viewing experience.
  • Utilizes 3U height and is 20 inches deep.

Datasheet

Request A Quote For The Rugged 3U MLD-3

Fill out the form below for pricing and information on the Rugged 3U MLD-3

Rugged Displays

Technical Specifications
Height 5.25 in
Width 19.00 in
Depth 20.00 in
Weight 45.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 3x
Brightness 350
Colors 16.7M
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

2019-Core-Systems-Datasheet-MLD3.pdf

Rugged Displays

Related Designs

Military-Ready Design

Rugged 3U MLD-3 Features

Rugged Chassis

Space-saving design built for your application.

Latest Technology

We provide the latest computing technology to give you the edge you need out in the field.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Request A Quote For The Rugged 3U MLD-3

Fill out the form below for pricing and information on the Rugged 3U MLD-3

Rugged 3U MLD-3

Technical Specifications
Height 5.25 in
Width 19.00 in
Depth 20.00 in
Weight 45.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 3x
Brightness 350
Colors 16.7M

Rugged 3U MLD-3

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

Rugged 3U MLD-3
