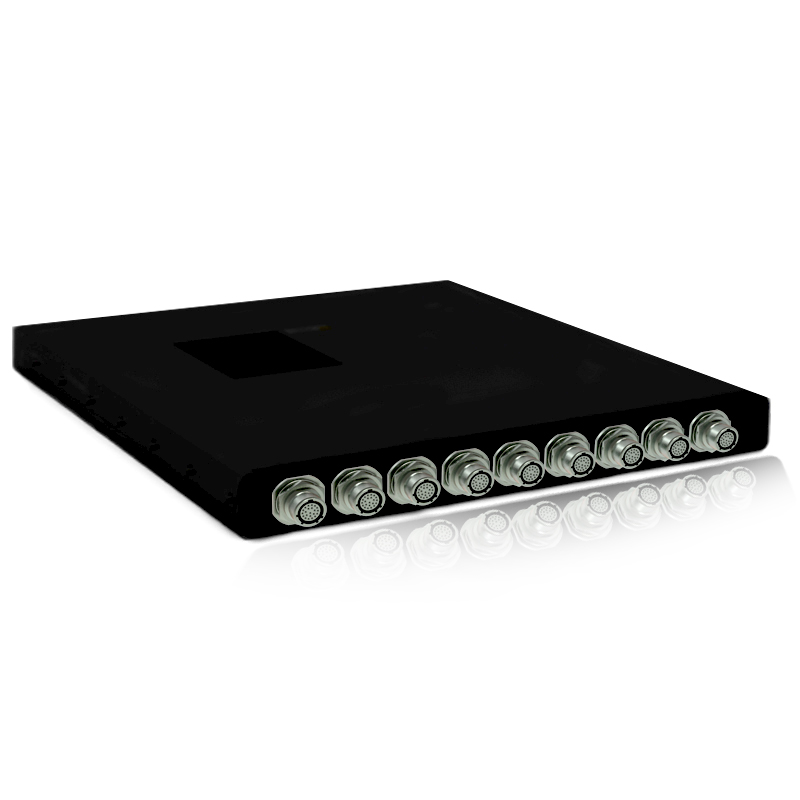

Rugged 7060DX5-32 Arista Switch

The ruggedized 7060DX5-32 is a compact 1RU system designed for military deployments with robust 400G capabilities. It boasts a high density of 400G ports, offering flexible configurations of 400G, 200G, 50G, 25G, and 10G, providing adaptability to diverse network requirements. With scalable options, the 7060DX5-32 supports a maximum of 32 ports of 400GbE or 128 ports of 100G, ensuring versatile connectivity and empowering military organizations to optimize their network infrastructure for mission-critical operations.

Compact 1RU system with 400G capabilities.
High density of 400G ports supporting flexible configurations of 400G, 200G, 50G, 25G, and 10G.
Scalable options with a maximum of 32 ports of 400GbE or 128 ports of 100G, ensuring versatile connectivity.

1.5" Height
19" Depth
19" Width
22 lbs Weight

Rugged Arista

Technical Specifications


Height	1.5 in
Width	19 in
Depth	19 in
Weight	22 lbs
Power	100/240VAC
Switch Ports	48
Port Type	10 Gigabit Ethernet
Operational Temperature Testing	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature Testing	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity Testing	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude Testing	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration Testing	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock Testing	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other Testing	MIL-STD-461F CE & RE emissions
Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)


Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)
