Rugged Arista

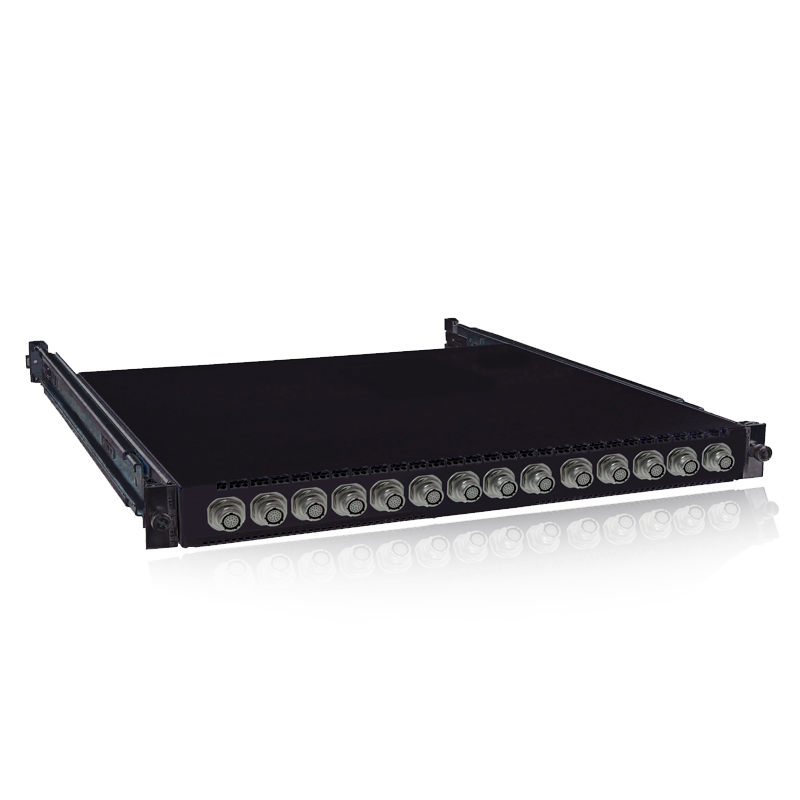

Rugged 7280TR-48C6 Arista Switch

The ruggedized Arista 7280TR-48C6 switch is purpose-built for military applications, offering high-density, scalable, and feature-rich fixed configuration switches. These switches combine deep buffering for lossless forwarding, internet-scale table sizes, and comprehensive Layer 2 and Layer 3 features.

  • High-density, scalable, and feature-rich fixed configuration switches.
  • Deep buffering for lossless forwarding, internet-scale table sizes, and comprehensive Layer 2 and Layer 3 features.
  • Advanced EOS capabilities

  • High-density, scalable, and feature-rich fixed configuration switches.
  • Deep buffering for lossless forwarding, internet-scale table sizes, and comprehensive Layer 2 and Layer 3 features.
  • Advanced EOS capabilities

Request A Quote For The Rugged 7280TR-48C6 Arista Switch

Fill out the form below for pricing and information on the Rugged 7280TR-48C6 Arista Switch

Rugged Arista

Technical Specifications
Height 1.5 in
Width 19 in
Depth 19 in
Weight 22 lbs
Switch Ports 22
Ports 48
Port Type 10 Gigabit Ethernet
Operational Temperature Testing MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature Testing MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity Testing MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude Testing MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration Testing MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock Testing MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other Testing MIL-STD-461F CE & RE emissions
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

Coming Soon

Rugged Arista

Related Designs

Military-Ready Design

Rugged 7280TR-48C6 Arista Switch Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Request A Quote For The Rugged 7280TR-48C6 Arista Switch

Fill out the form below for pricing and information on the Rugged 7280TR-48C6 Arista Switch

Rugged 7280TR-48C6 Arista Switch

Technical Specifications
Height 1.5 in
Width 19 in
Depth 19 in
Weight 22 lbs
Switch Ports 22
Ports 48
Port Type 10 Gigabit Ethernet
Operational Temperature Testing MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature Testing MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity Testing MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude Testing MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration Testing MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock Testing MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other Testing MIL-STD-461F CE & RE emissions
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Rugged 7280TR-48C6 Arista Switch

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

Rugged 7280TR-48C6 Arista Switch
