Rugged AR1

Rugged Mission Computers

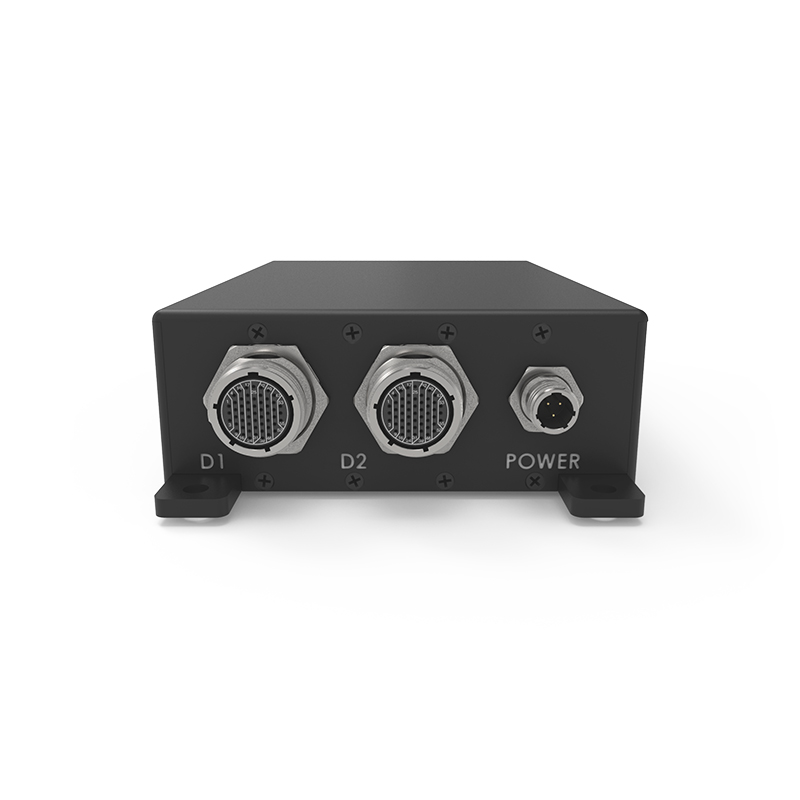

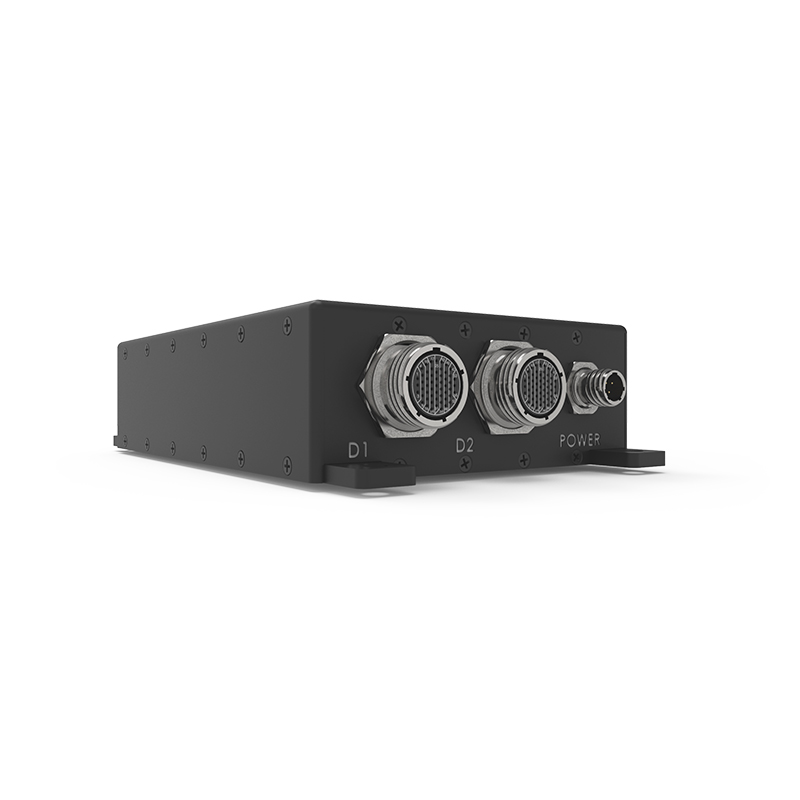

The AR1 is a small, rugged, and SWaP optimized tactical mission computer with the latest Intel Gen Quad Core CPU.

Fully conduction-cooled
Allows for the addition of up to two internal cards (1553, GPS, D/A, etc) for expanded I/O capability
Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts
Completely sealed chassis built to survive extreme temperature, shock, and vibration

Datasheet


Height	2.00 in
Width	5.25 in
Depth	7.75 in
Weight	5.00 lbs
Power	28VDC
RAM	2GB
Storage	One (1) internal SATA or SAS 2.5” HDD
Expansion Slots	Two (2) internal mPCIe slots, multiple mPCIe slot combinations are available
Cores	4-12x
Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)


Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)

Built Rugged to Last Long

Core Systems provides a line of rugged mission computers that add versatility to your mission.

Rugged mission computers can be designed to meet the specifications of your mission.

2019-Core-Systems-Datasheet-AR1.pdf

Fill out the form for pricing and information

Built with an all-aluminum chassis designed to handle any extreme.

We provide the latest computing technology to give you the edge you need out in the field.

With room for expansion, your system has the versatility your mission requires.
