Rugged AR107 - Core Systems

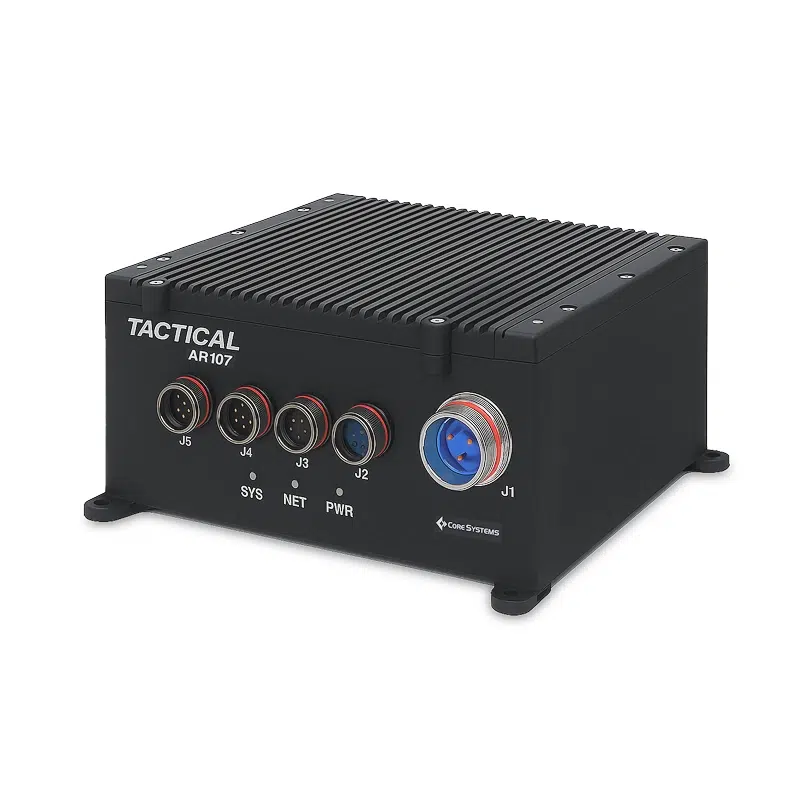

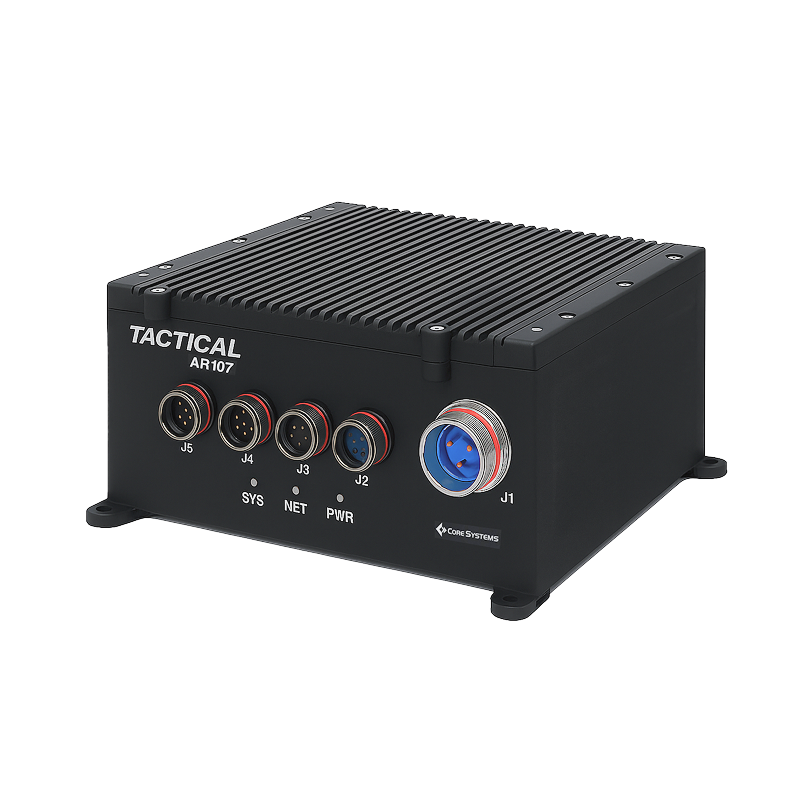

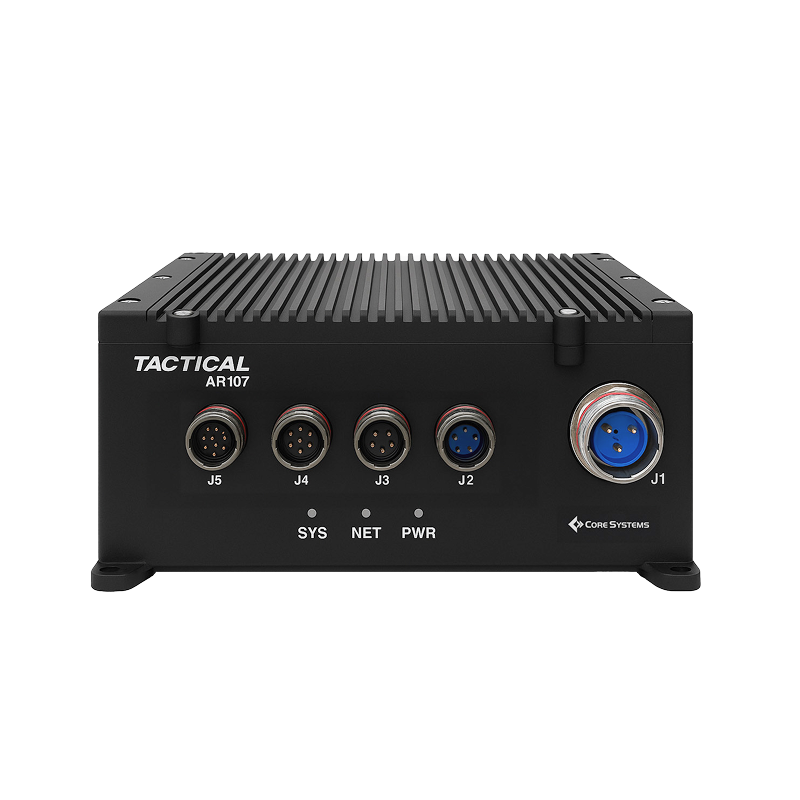

Rugged AR107

Rugged Mission Computers

The Rugged AR107 is a compact, hardened rugged computer built to perform where standard mission computers fail. It delivers enterprise-grade processing power, reliable uptime, and secure operation for mission-critical applications in defense, industrial, and edge computing environments.

Designed for reliability at the edge, this rugged industrial computer combines high-performance processing, extended durability, and secure operation. The Rugged AR107 is ideal for defense, transportation, energy, and remote industrial and military deployments.

  • Fully conduction-cooled
  • Small Form Factor (SFF)
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts
  • Completely sealed chassis built to survive extreme temperature, shock, and vibration
  • Intel Core™ Ultra 9, 24 cores
  • Onboard UPS battery backup
  • Tested to meet military standards
  • Built in the USA

Datasheet

Designed for reliability at the edge, this rugged industrial computer combines high-performance processing, extended durability, and secure operation. The Rugged AR107 is ideal for defense, transportation, energy, and remote industrial and military deployments.

  • Fully conduction-cooled
  • Small Form Factor (SFF)
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts
  • Completely sealed chassis built to survive extreme temperature, shock, and vibration
  • Intel Core™ Ultra 9, 24 cores
  • Onboard UPS battery backup
  • Tested to meet military standards
  • Built in the USA

Datasheet
Height 3.50 in
Width 8.10 in
Depth 9.10 in
Weight 7 lbs
Power Onboard UPS battery backup
RAM Up to 96GB DDR5
Processor 24x Cores - Intel Core Ultra 9
Video 2x HDMI 2.1; 2x Display Ports
Network 4x 10GbE; 2x 2.5GbE
Security 1x TPM 2.0
USB Ports 3x USB Type-A; 1x USB Type-C
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
