Rugged Mission Computers


Rugged AR3

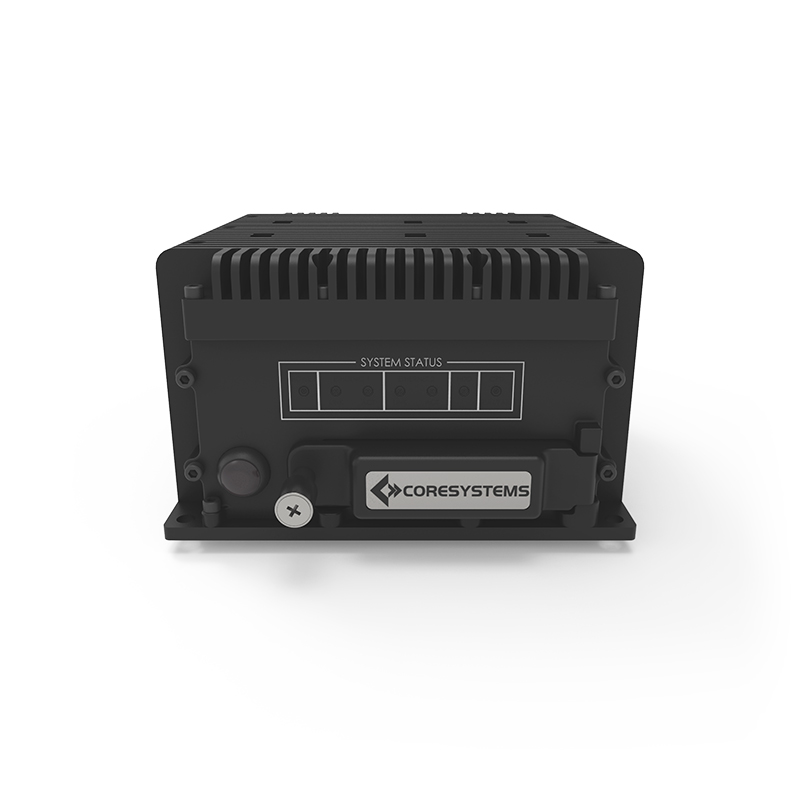

The AR3 is a small, rugged, and SWaP-optimized tactical mission computer with the latest Intel Quad Core CPU.

  • Fully conduction-cooled and allows for the addition of internal cards for expanded IO capability.
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts.
  • Completely sealed and is built to survive extreme temperature, shock, and vibration.

  • Fully conduction-cooled and allows for the addition of internal cards for expanded IO capability.
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts.
  • Completely sealed and is built to survive extreme temperature, shock, and vibration.

Request A Quote For The Rugged AR3


Fill out the form below for pricing and information on the Rugged AR3

Rugged Mission Computers


Technical Specifications

Height 4.40 in
Width 7.50 in
Depth 7.30 in
Weight 6.50 lbs
Power 28VDC
RAM 8GB
Cores 4-12x
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific


Built Rugged to Last Long

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Application-Specific


Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Coming Soon

Rugged Mission Computers


Related Designs

Military-Ready Design


Rugged AR3 Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Request A Quote For The Rugged AR3


Fill out the form below for pricing and information on the Rugged AR3

Rugged AR3


Technical Specifications

Height 4.40 in
Width 7.50 in
Depth 7.30 in
Weight 6.50 lbs
Power 28VDC
RAM 8GB

Rugged AR3


Military Testing

Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific


Built Rugged to Last Long

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Application-Specific


Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.
