Rugged Mission Computers

Rugged AR5

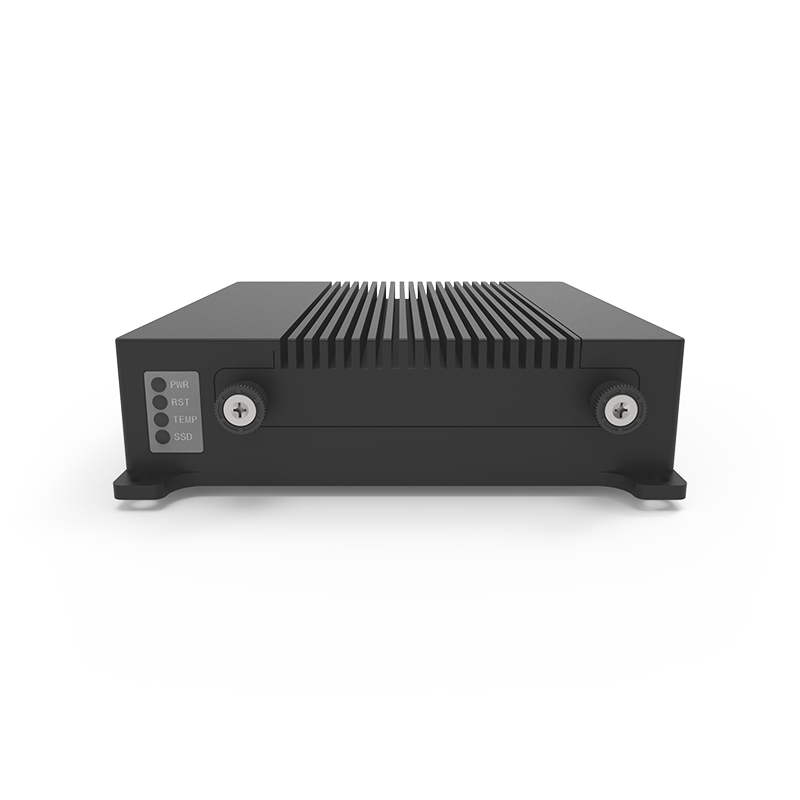

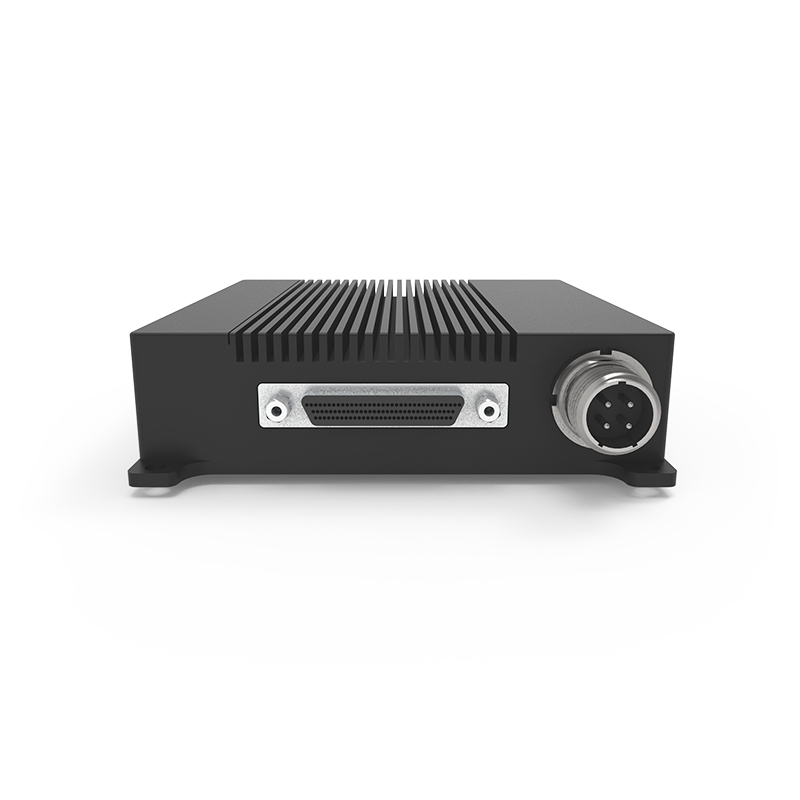

The Rugged AR5 tactical mission computer from Core Systems is fully sealed and conduction cooled. The AR5 has one removable sealed tray for CPU and SSD drive. It also includes 38999 MIL-Circular connectors for I/O and power.

  • Latest Intel® Chipset technology with 1.91GHz max clock speed.
  • Tested to meet MIL-STD-810G & DO-160G Shock, Vibration, Thermal, Altitude, and Humidity.
  • 2x USB 3.0 and two USB 2.0 ports support keyboard, mouse, and other devices.
  • IncludesRS-232 port, three 8254 timer/counters, and I2C support.
  • 8x Gigabit Ethernet (GbE) ports with remote boot support and PoE functionality.

Datasheet

  • Latest Intel® Chipset technology with 1.91GHz max clock speed.
  • Tested to meet MIL-STD-810G & DO-160G Shock, Vibration, Thermal, Altitude, and Humidity.
  • 2x USB 3.0 and two USB 2.0 ports support keyboard, mouse, and other devices.
  • IncludesRS-232 port, three 8254 timer/counters, and I2C support.
  • 8x Gigabit Ethernet (GbE) ports with remote boot support and PoE functionality.

Datasheet

Request A Quote For The Rugged AR5

Fill out the form below for pricing and information on the Rugged AR5

Rugged Mission Computers

Technical Specifications
Height 1.10 in
Width 4.70 in
Depth 5.60 in
Weight 2.00 lbs
Power 28VDC
RAM 8GB
Processor Intel E3845 CPU - 1.91GHz Quad-core - 10W TDP
Storage 1x 128GB Solid State Drive
I/O 8x Gb Ethernet; 2x USB 2.0, 1x USB 3.0; Audio; Video Displayport, 2x PCIe
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of rugged mission computers that add versatility to your mission.

Rugged Design

Built Rugged to Last Long

Rugged mission computers can be designed to meet the specifications of your mission.

2019-Core-Systems-Datasheet-AR5.pdf

Rugged Mission Computers

Related Designs

Military-Ready Design

Rugged AR5 Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Request A Quote For The Rugged AR5

Fill out the form below for pricing and information on the Rugged AR5

Rugged AR5

Technical Specifications
Height 1.10 in
Width 4.70 in
Depth 5.60 in
Weight 2.00 lbs
Power 28VDC
RAM 8GB
Processor Intel E3845 CPU - 1.91GHz Quad-core - 10W TDP
Storage 1x 128GB Solid State Drive
I/O 8x Gb Ethernet; 2x USB 2.0, 1x USB 3.0; Audio; Video Displayport, 2x PCIe

Rugged AR5

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of rugged mission computers that add versatility to your mission.

Rugged Design

Built Rugged to Last Long

Rugged mission computers can be designed to meet the specifications of your mission.
