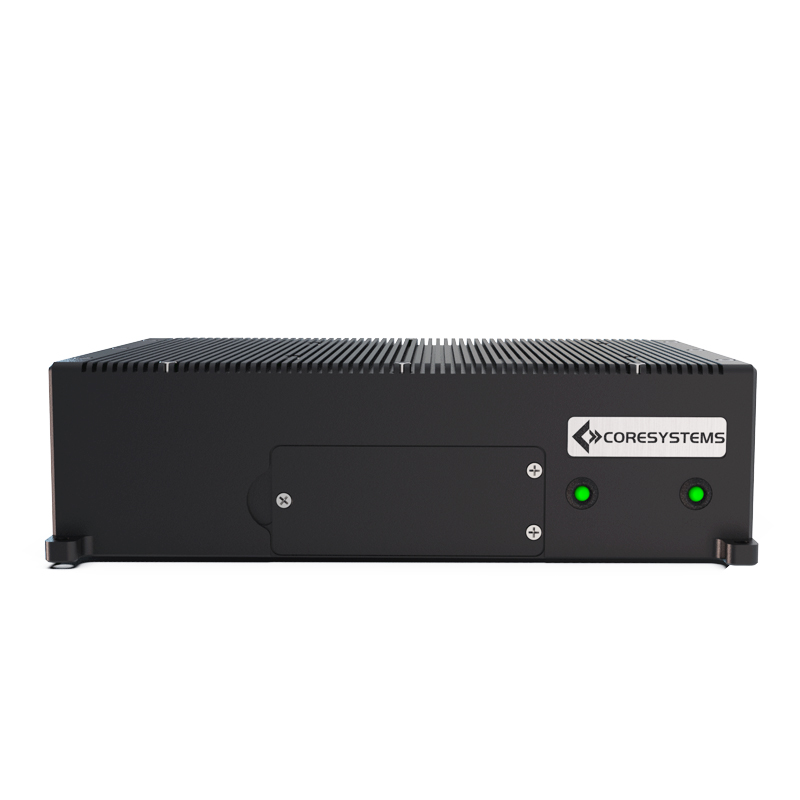

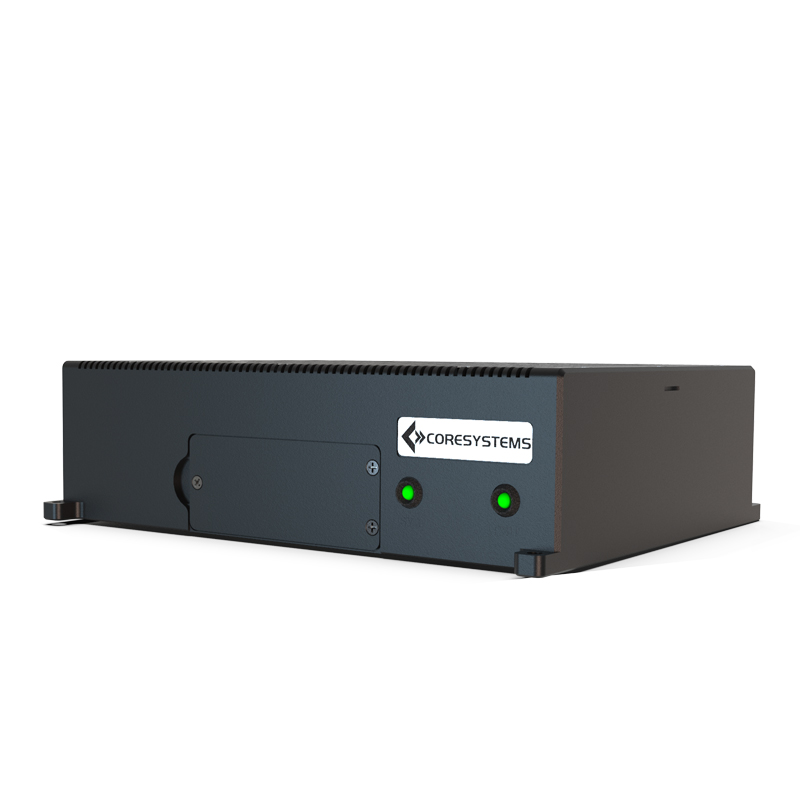

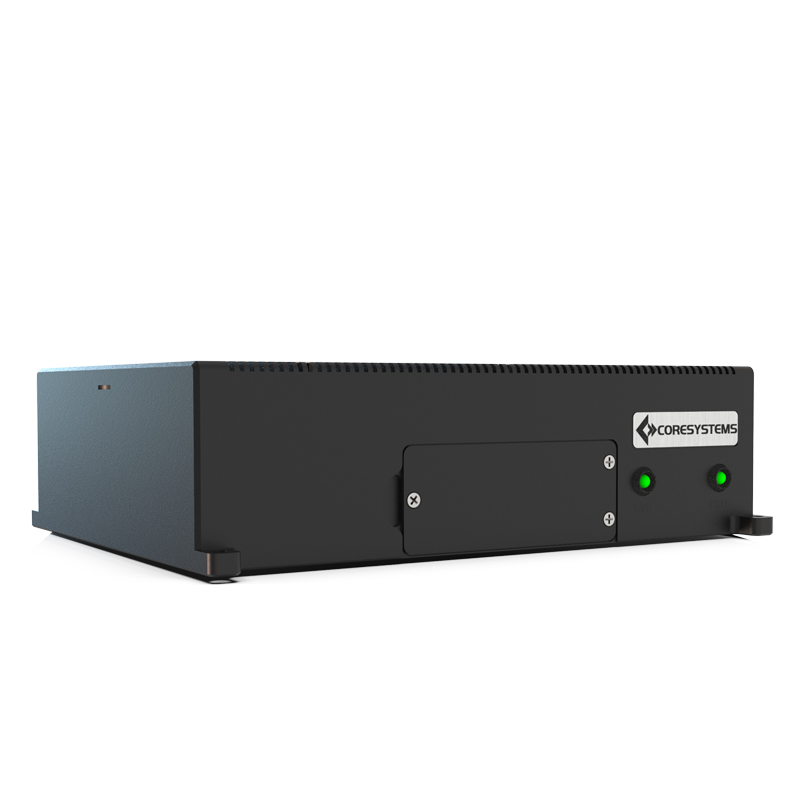

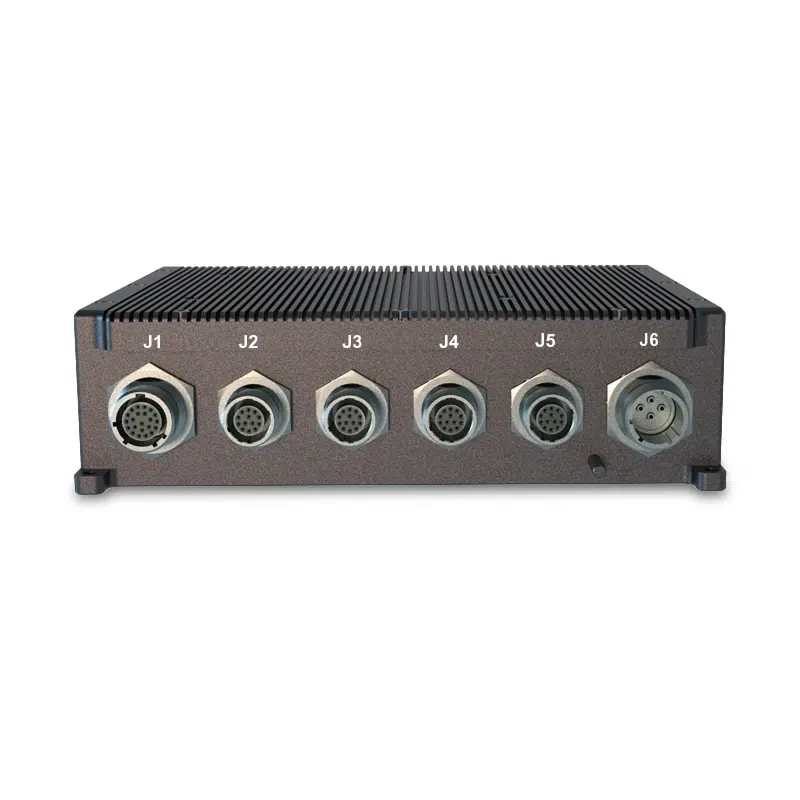

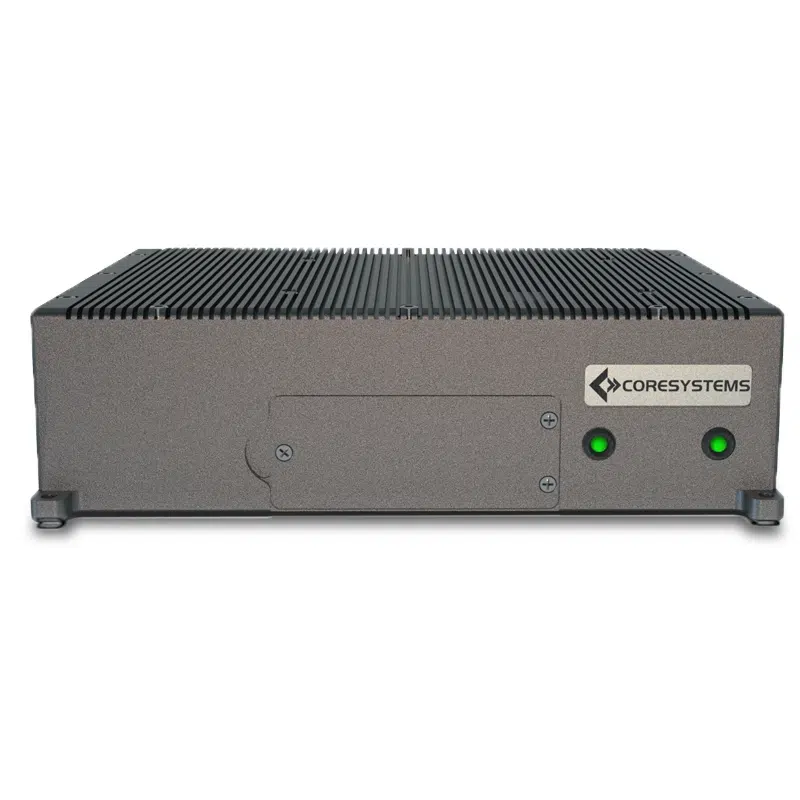

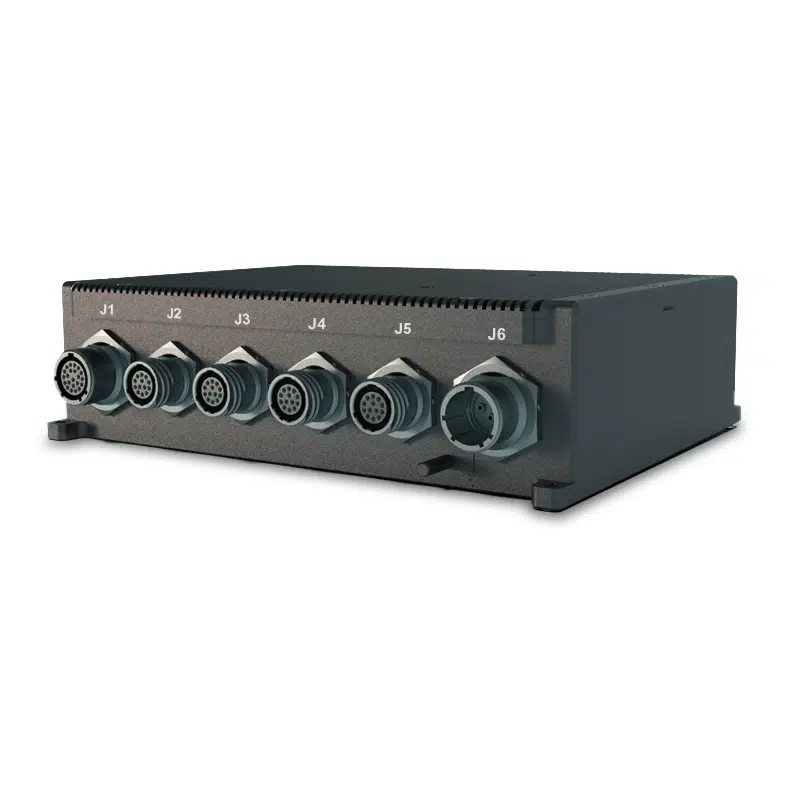

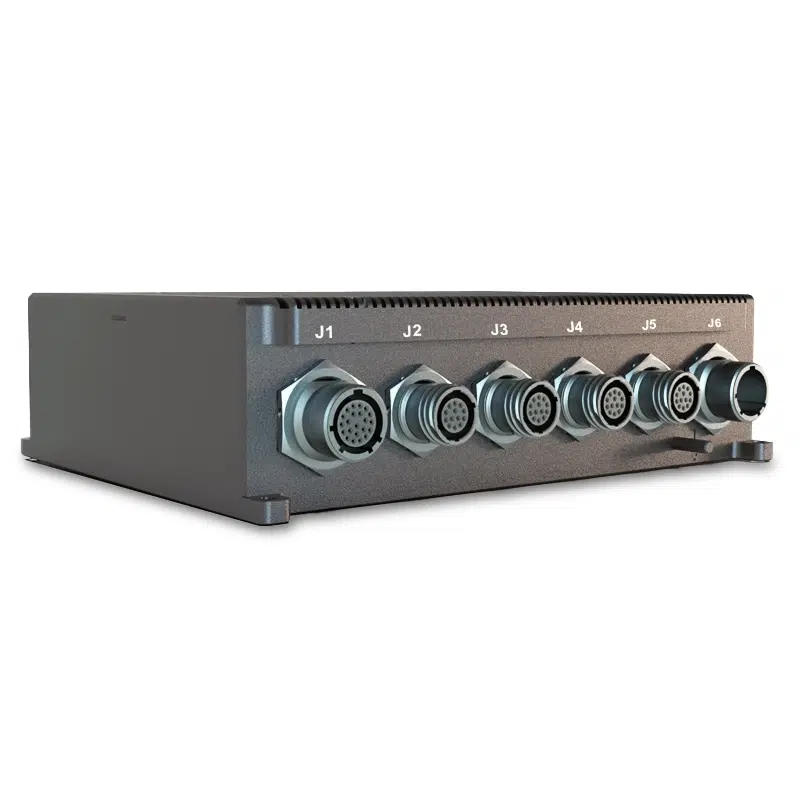

Rugged AR8

The AR8 is a small, rugged, and SWaP optimized Cross-Domain Solution built for extreme environments.

  • Fully conduction-cooled
  • Small Form Factor (SFF)
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts
  • Completely sealed chassis built to survive extreme temperature, shock, and vibration

Datasheet

  • Fully conduction-cooled
  • Small Form Factor (SFF)
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts
  • Completely sealed chassis built to survive extreme temperature, shock, and vibration

Datasheet

Request A Quote For The Rugged AR8

Fill out the form below for pricing and information on the Rugged AR8

Rugged Mission Computers

Technical Specifications
Height 1.75 in
Width 7.5 in
Depth 7.65 in
Weight 3 lbs
Power 28VDC
RAM 64GB ECC RAM
Processor Intel® Xeon® E-2276ML, SIX CORE 2.7GHz
Expansion 3x Mini PCIe Modules
Ethernet 4x GbE Ports with On-Board Magnetics
Video VGA
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

rugged-ar8-datasheet-web.pdf

Rugged Mission Computers

Related Designs

Military-Ready Design

Rugged AR8 Features

Rugged Chassis

Space-saving design built for your application.

Latest Technology

We provide the latest computing technology to give you the edge you need out in the field.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Request A Quote For The Rugged AR8

Fill out the form below for pricing and information on the Rugged AR8

Rugged AR8

Technical Specifications
Height 1.75 in
Width 7.5 in
Depth 7.65 in
Weight 3 lbs
Power 28VDC
RAM 64GB ECC RAM
Processor Intel® Xeon® E-2276ML, SIX CORE 2.7GHz

Rugged AR8

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

Rugged AR8
