Rugged AR902 - Core Systems

Rugged AR902

Rugged Mission Computers

The Rugged AR902 is a tactical computer designed to deliver high performance and reliability in extreme military environments. Powered by the Intel® Core™ Ultra 9 285K processor running up to 5.7 GHz, this rugged system supports real-time data processing, mission planning, sensor fusion, and edge analytics. With 96 GB of high-speed DDR5 memory and a 1.92 TB NVMe SSD, the AR902 handles critical mission datasets and applications.

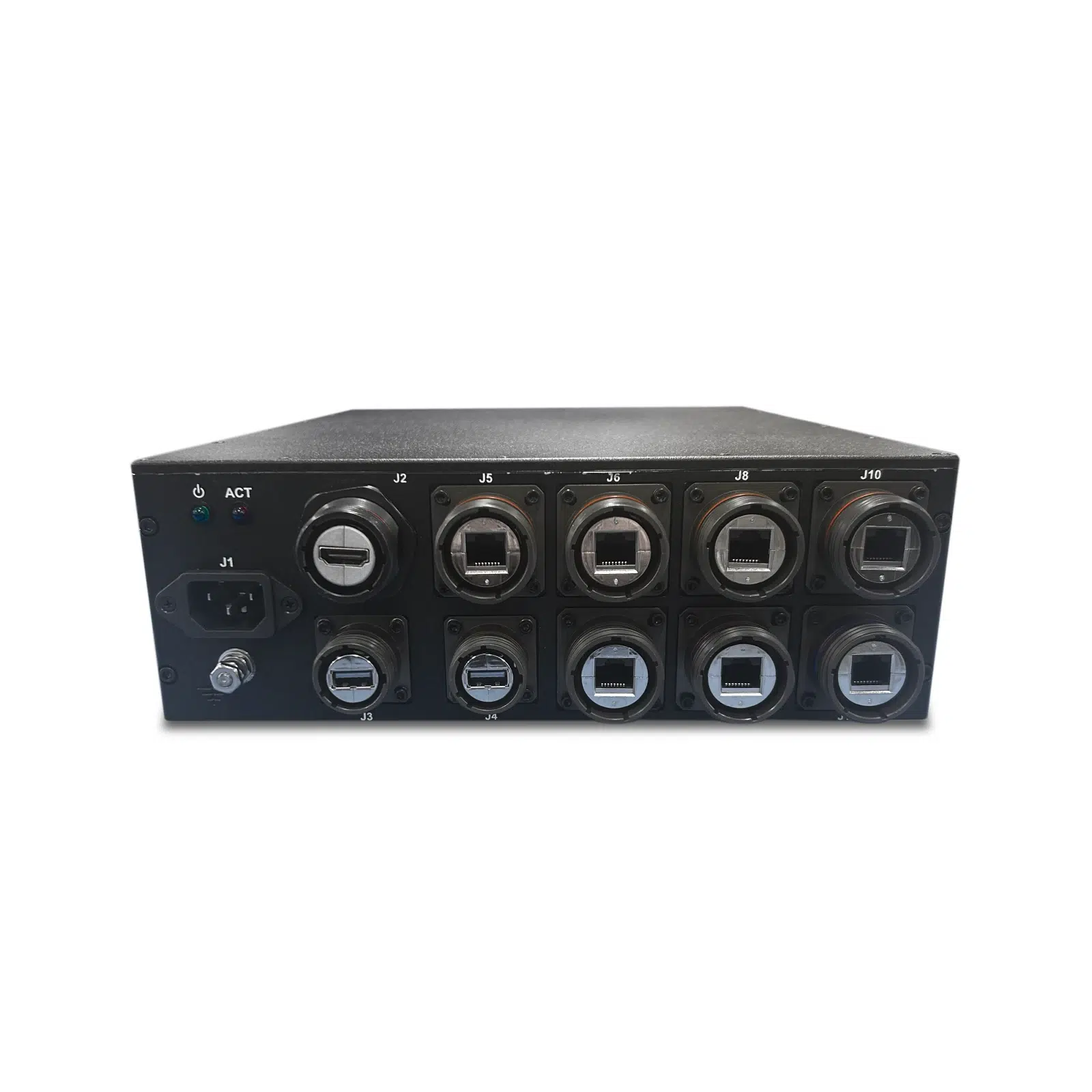

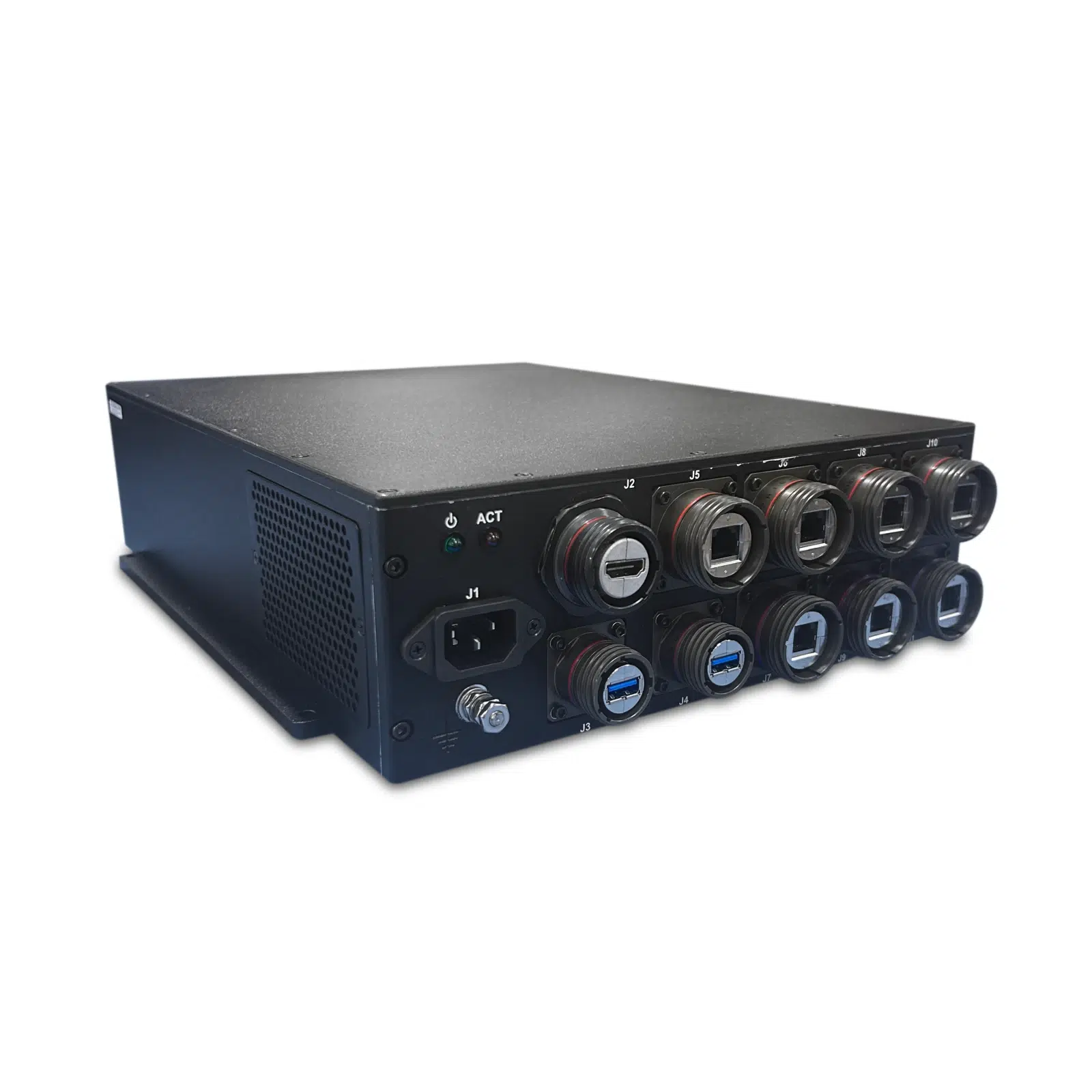

The AR902 features seven RJ45 Ethernet ports for networking across multiple devices. Additional I/O includes two USB 3.0 ports and a dedicated HDMI video output for display integration. Housed in a SWaP-optimized rugged chassis, the AR902 combines a compact form factor with durability and thermal efficiency. The unit is MIL-SPEC tested for shock, vibration, and environmental resilience, ensuring dependable operation in harsh conditions.

  • Fully conduction-cooled
  • Small Form Factor (SFF)
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts
  • Completely sealed chassis built to survive extreme temperature, shock, and vibration

Datasheet

The AR902 features seven RJ45 Ethernet ports for networking across multiple devices. Additional I/O includes two USB 3.0 ports and a dedicated HDMI video output for display integration. Housed in a SWaP-optimized rugged chassis, the AR902 combines a compact form factor with durability and thermal efficiency. The unit is MIL-SPEC tested for shock, vibration, and environmental resilience, ensuring dependable operation in harsh conditions.

  • Fully conduction-cooled
  • Small Form Factor (SFF)
  • Utilizes proprietary thermal transfer technology to cool the system without the use of moving parts
  • Completely sealed chassis built to survive extreme temperature, shock, and vibration

Datasheet
Height 3.48 in
Width 11.375 in
Depth 13.60 in
Weight 9 lbs
Power 500W AC
RAM Up to 96GB DDR5
Processor Intel® Core™ Ultra 9 Processor 285K
HDD 1× 1.92TB NVME SSD
Ethernet 7x RJ45 Connectors
Video Port 1x HDMI
USB Ports 2x USB 3.0 Ports
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
