Rugged Mission Computers

Rugged ATMOS Server

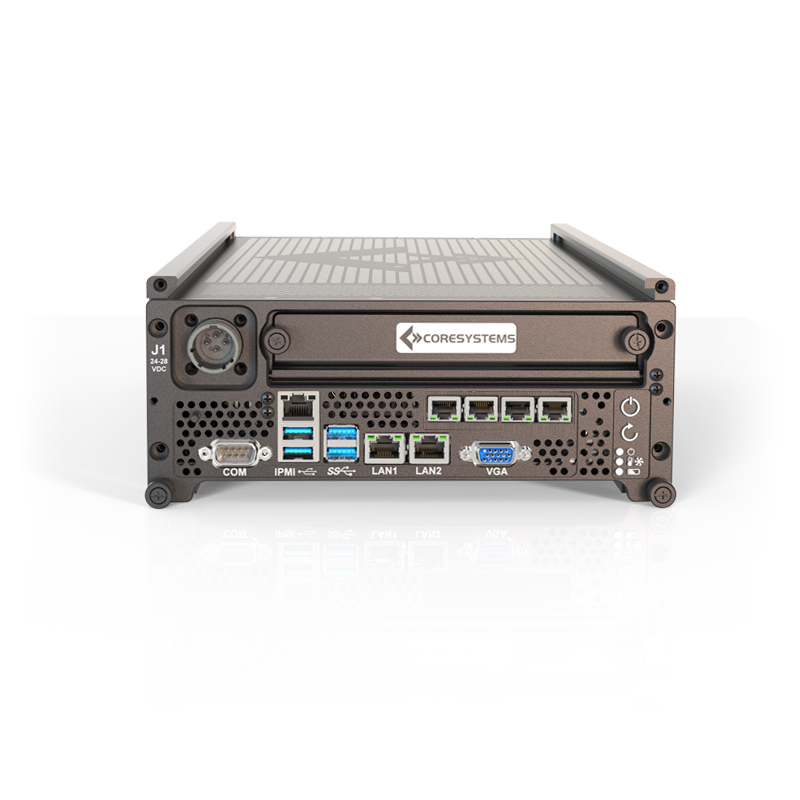

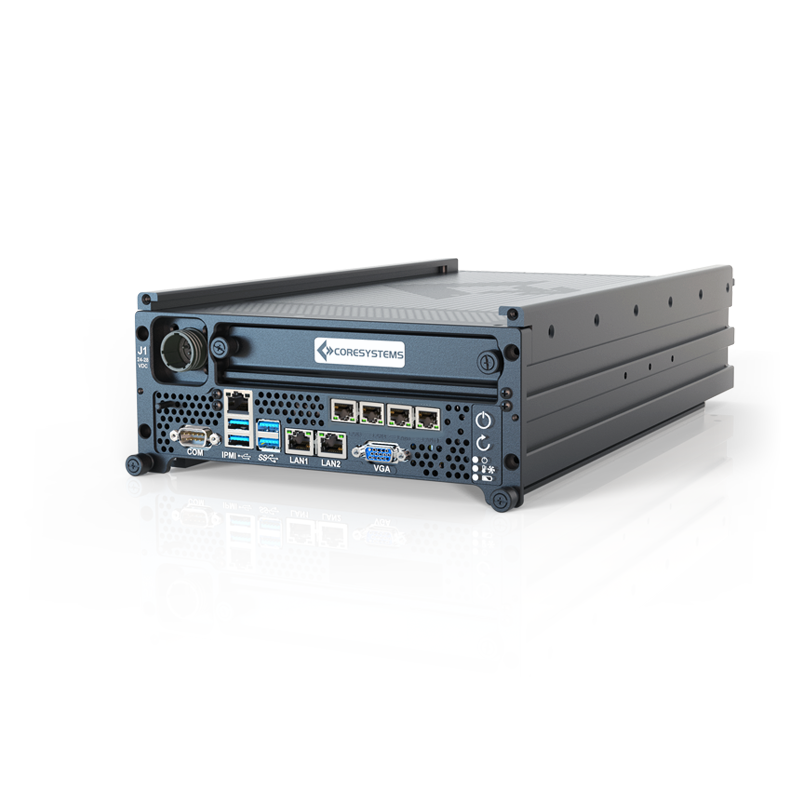

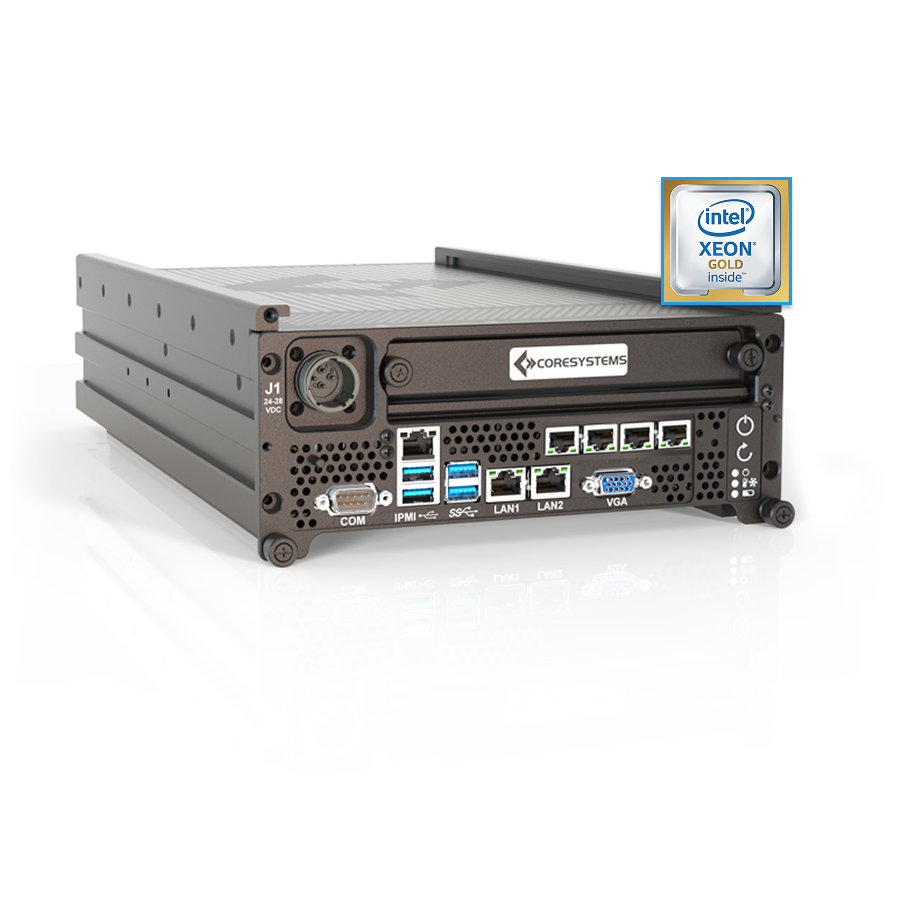

The Rugged ATMOS server is an independent stackable node server with the latest Intel® Xeon® scalable CPU. This server can act as a standalone unit or be connected to multiple enclaves via the stackable ATMOS Chassis Rail System. Each ATMOS node is equipped with onboard UPS battery backup for uninterrupted C2 on-the-move operations.

  • 32x Physical Xeon® Gold Scalable Cores
  • Up to 2TB ECC RAM
  • 4x NVME Hot-Swap SSD Drives
  • Optional 4-Port NIC card or NVIDIA GPU Card
  • Onboard UPS Battery Backup
  • Rugged MIL-Spec Chassis
  • Stackable Chassis Rail System
  • Native 24-28VDC Power Input
  • Optional AC-DC External Power Supply

Datasheet

  • 32x Physical Xeon® Gold Scalable Cores
  • Up to 2TB ECC RAM
  • 4x NVME Hot-Swap SSD Drives
  • Optional 4-Port NIC card or NVIDIA GPU Card
  • Onboard UPS Battery Backup
  • Rugged MIL-Spec Chassis
  • Stackable Chassis Rail System
  • Native 24-28VDC Power Input
  • Optional AC-DC External Power Supply

Datasheet

Rugged Mission Computers

Technical Specifications
Height 3.5 in
Width 8.5 in
Depth 14.75 in
Weight 13 lbs
Power 28VDC
RAM Up to 2TB per Node
Processor 32x Intel® Xeon® Scalable Cores
Storage 4x NVME Hot-Swap SSD Drives
Network 2x 10G onboard NIC Ports; 1x 4-Port 10G NIC Card
Graphics (Optional) NVIDIA GPU Card
Security TPM 2.0 Module
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

Rugged-ATMOS-Compute-Datasheet-1.pdf

Request A Quote For The Rugged ATMOS Server

Fill out the form below for pricing and information on the Rugged ATMOS Server

Rugged Mission Computers

Related Designs

Military-Ready Design

Rugged ATMOS Server Features

Rugged Chassis

Space-saving design built for your application.

Latest Technology

Your system comes equipped with the most powerful computing technology in the industry.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Rugged ATMOS Server

Technical Specifications
Height 3.5 in
Width 8.5 in
Depth 14.75 in
Weight 13 lbs
Power 28VDC
RAM Up to 2TB per Node
Processor 32x Intel® Xeon® Scalable Cores
Storage 4x NVME Hot-Swap SSD Drives

Rugged ATMOS Server

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long
