Rugged Cisco Systems

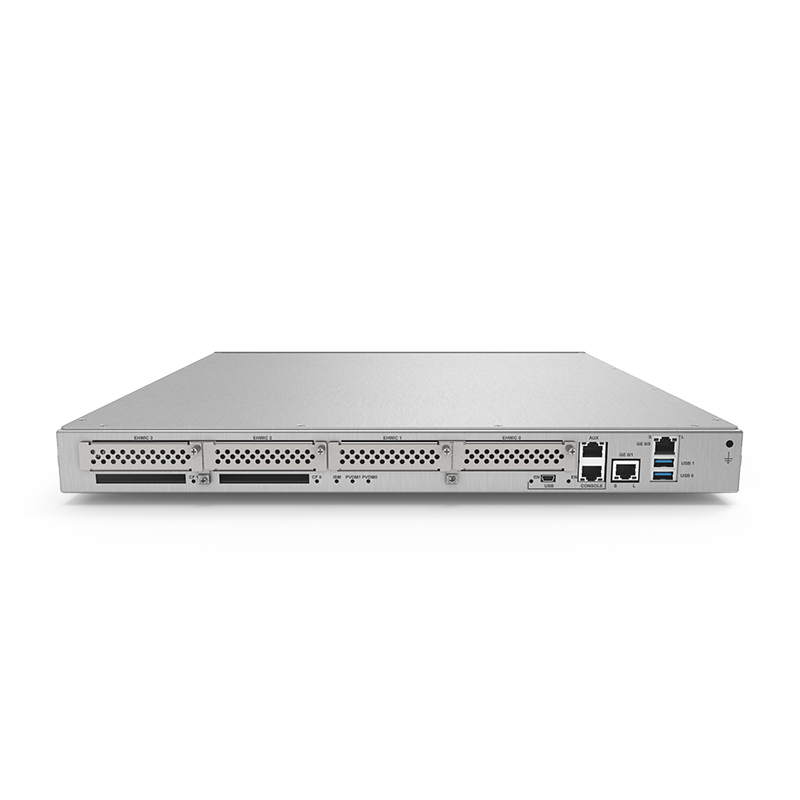

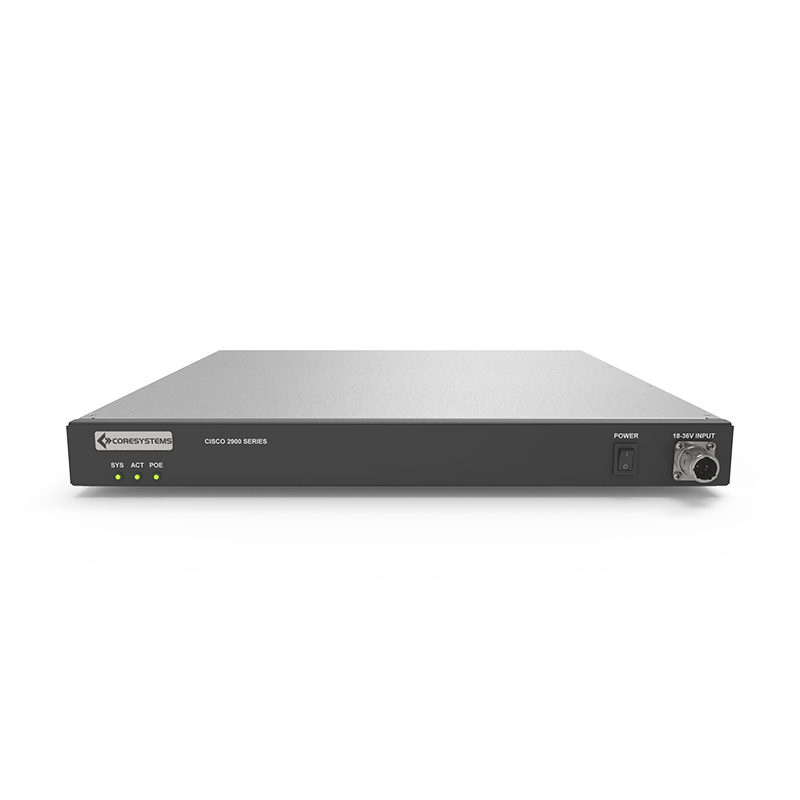

Rugged Cisco 2901 Router

The Rugged Core Systems 2901 Cisco Integrated Services Router (ISR) has been carefully redesigned and repackaged using aluminum over steel to reduce the depth and weight.

  • 2x integrated 10/100/1000 Ethernet ports
  • 4x enhanced high-speed WAN interface card slots
  • 1x onboard Internal Service Module for application services
  • Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE
  • To comply with DO-160 aircraft power requirements, Core Systems converts the AC power to a mil-circular 38999 connector for 18-36VDC.

  • 2x integrated 10/100/1000 Ethernet ports
  • 4x enhanced high-speed WAN interface card slots
  • 1x onboard Internal Service Module for application services
  • Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE
  • To comply with DO-160 aircraft power requirements, Core Systems converts the AC power to a mil-circular 38999 connector for 18-36VDC.

Request A Quote For The Rugged Cisco 2901 Router

Fill out the form below for pricing and information on the Rugged Cisco 2901 Router

Rugged Cisco Systems

Technical Specifications
Height 1.75 in
Width 17.25 in
Depth 17.05 in
Weight 8.80 lbs
Power 28VDC, 150W
Expansion Slots Qty: 1, full height
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Rugged Design

Modern Battlefield Tech

Core Systems has provides a number of ruggedized Cisco products that are built to meet MIL-Spec Standards.

Application-Specific

Built Rugged to Last Long

We build and design ruggedized routers and switches that can be customized for your mission.

Coming Soon

Rugged Cisco Systems

Related Designs

Military-Ready Design

Rugged Cisco 2901 Router Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Request A Quote For The Rugged Cisco 2901 Router

Fill out the form below for pricing and information on the Rugged Cisco 2901 Router

Rugged Cisco 2901 Router

Technical Specifications
Height 1.75 in
Width 17.25 in
Depth 17.05 in
Weight 8.80 lbs
Power 28VDC, 150W
Chassis Type
Expansion Slots Qty: 1, full height

Rugged Cisco 2901 Router

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Rugged Design

Modern Battlefield Tech

Core Systems has provides a number of ruggedized Cisco products that are built to meet MIL-Spec Standards.

Application-Specific

Built Rugged to Last Long

We build and design ruggedized routers and switches that can be customized for your mission.

Rugged Cisco 2901 Router
