Rugged Cisco Systems

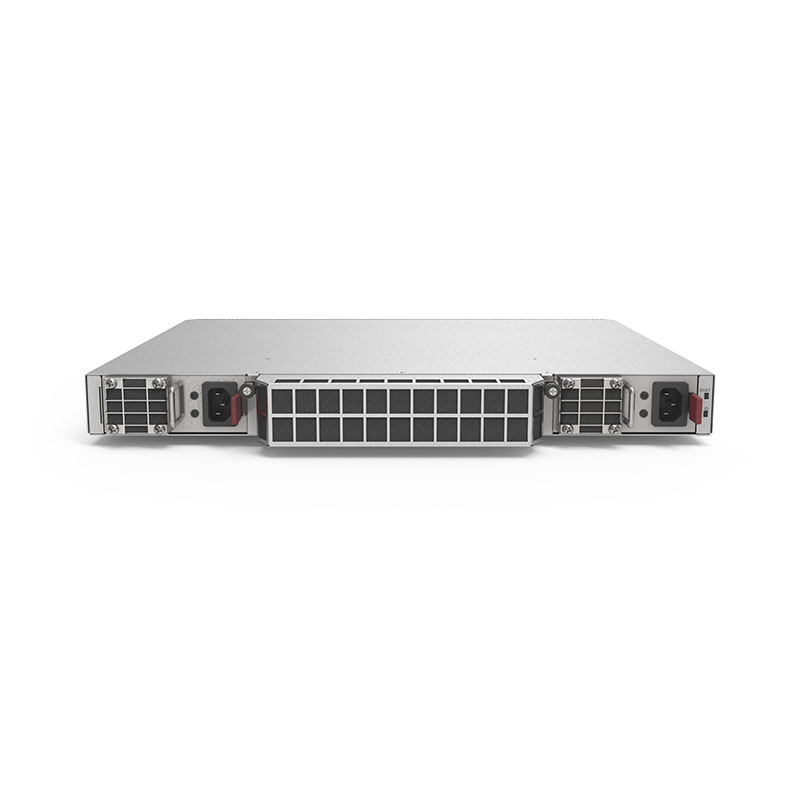

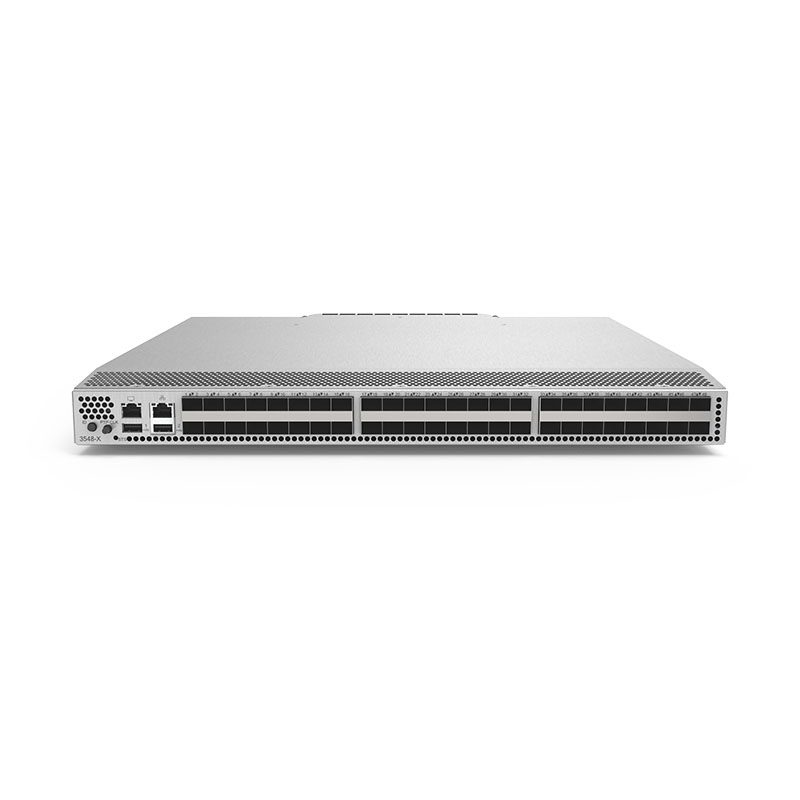

Rugged Cisco 3548 Switch

The rugged 3548 is a hardened 2U 3548 Cisco Ethernet Switch machined out of solid aircraft aluminum sheets to lighten the chassis for payload sensitive requirements.

  • Perfect for applications that require thermal, shock, vibration, altitude, and humidity conditions not offered by the standard commercial Cisco version.
  • Milled from solid blocks of aircraft aluminum to provide unmatched structural rigidity.
  • Unmatched structural rigidity.
  • 0.25″ to 0.50″ thick 6061T-651 strain-hardened structural aircraft aluminum
  • All the components on the Cisco board are potted for vibration resistance.
  • Boards are conformal-coated for humidity and tin whiskering

  • Perfect for applications that require thermal, shock, vibration, altitude, and humidity conditions not offered by the standard commercial Cisco version.
  • Milled from solid blocks of aircraft aluminum to provide unmatched structural rigidity.
  • Unmatched structural rigidity.
  • 0.25″ to 0.50″ thick 6061T-651 strain-hardened structural aircraft aluminum
  • All the components on the Cisco board are potted for vibration resistance.
  • Boards are conformal-coated for humidity and tin whiskering

Request A Quote For The Rugged Cisco 3548 Switch

Fill out the form below for pricing and information on the Rugged Cisco 3548 Switch

Rugged Cisco Systems

Technical Specifications
Height 1.50 in
Width 17.40 in
Depth 18.00 in
Weight 20.00 lbs
Cooling 80mm high speed, high volume vans
Power 24/28VDC
Chassis Type Lightweight aluminum chassis
Expansion Slots Qty: 1, full height
Ports 48x 10/100/10000 Gigabit Ethernet (BASE-T) Downlinks (over Copper); 2x 10 Gigabit Ethernet (10GBASE-CX4) Uplinks, Compatible w/ Copper Twinax Media; 1x 10 Gbps Multi-mode Fiber (10GBASE-LRM), Compatible w/ 62.5 micron / 500 modal Bandwidth; 1x 1 Gbps Multi-mode Fiber (1000BASE-SX), Compatible w/ 50.0 micron / 500 modal Bandwidth; 1x EIA/TIA-232 Serial Console (Out-of-band management); 1x 100BASE-T Management Ethernet (In-band management)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has provides a number of ruggedized Cisco products that are built to meet MIL-Spec Standards.

Rugged Design

Built Rugged to Last Long

We build and design ruggedized routers and switches that can be customized for your mission.

Coming Soon

Rugged Cisco Systems

Related Designs

Military-Ready Design

Rugged Cisco 3548 Switch Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Request A Quote For The Rugged Cisco 3548 Switch

Fill out the form below for pricing and information on the Rugged Cisco 3548 Switch

Rugged Cisco 3548 Switch

Technical Specifications
Height 1.50 in
Width 17.40 in
Depth 18.00 in
Weight 20.00 lbs
Cooling 80mm high speed, high volume vans
Power 24/28VDC
Chassis Type Lightweight aluminum chassis
Expansion Slots Qty: 1, full height
Ports 48x 10/100/10000 Gigabit Ethernet (BASE-T) Downlinks (over Copper); 2x 10 Gigabit Ethernet (10GBASE-CX4) Uplinks, Compatible w/ Copper Twinax Media; 1x 10 Gbps Multi-mode Fiber (10GBASE-LRM), Compatible w/ 62.5 micron / 500 modal Bandwidth; 1x 1 Gbps Multi-mode Fiber (1000BASE-SX), Compatible w/ 50.0 micron / 500 modal Bandwidth; 1x EIA/TIA-232 Serial Console (Out-of-band management); 1x 100BASE-T Management Ethernet (In-band management)

Rugged Cisco 3548 Switch

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has provides a number of ruggedized Cisco products that are built to meet MIL-Spec Standards.

Rugged Design

Built Rugged to Last Long

We build and design ruggedized routers and switches that can be customized for your mission.
