Rugged E50UG-01 - Core Systems

Rugged E50UG-01

Rugged Cisco Series Switches

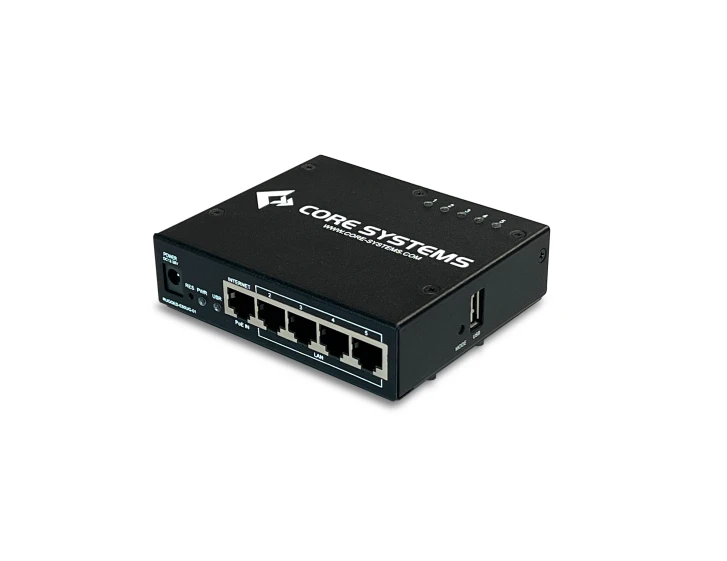

Mission-Ready Networking – Now Ruggedized for Military Environments The proven reliability of the hEX router has been transformed into a rugged military-grade solution, engineered for harsh field conditions and tactical deployments. Built into a hardened enclosure compliant with MIL-STD-810 and designed for extreme shock, vibration, and temperature fluctuations, this upgraded unit doubles the performance of the original — now featuring 512 MB of RAM and a modern ARM dual-core processor for high-speed data routing in mission-critical applications. With 5x Gigabit Ethernet ports and a full-size USB port for secure local storage or streaming, this ruggedized router offers dependable, high-throughput connectivity for command posts, mobile operations centers, and field-deployed teams — all while maintaining low power consumption and compact size for easy integration into any rugged system.

  • Ruggedized hEX router for tactical deployments
  • MIL-STD-810 tested for extreme conditions
  • Upgraded CPU and RAM for high performance

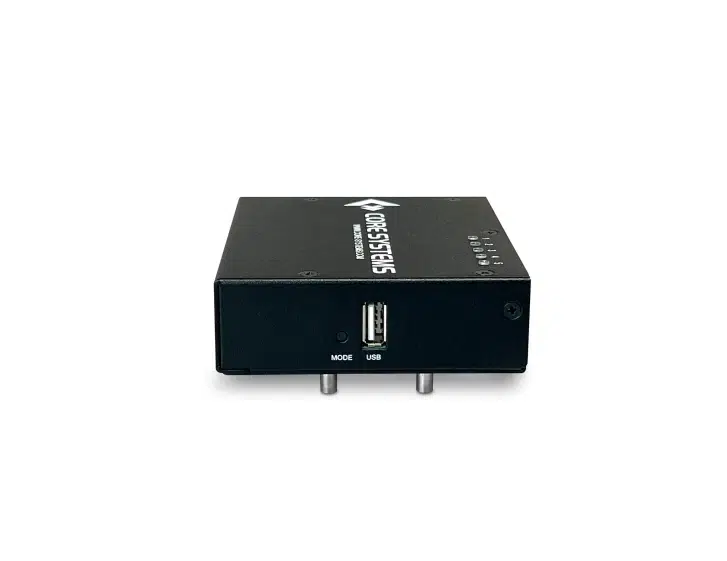

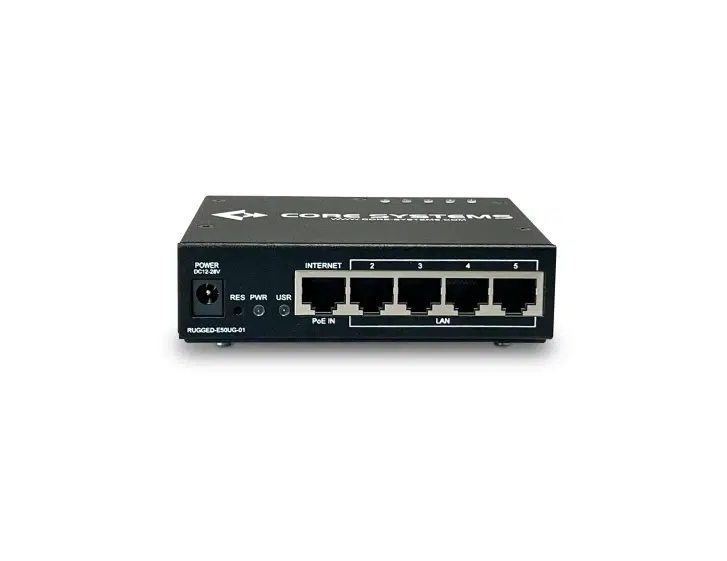

  • 5× Gigabit ports + USB for flexible connectivity
  • Compact, low-power design for field use

  • Ruggedized hEX router for tactical deployments
  • MIL-STD-810 tested for extreme conditions
  • Upgraded CPU and RAM for high performance
  • 5× Gigabit ports + USB for flexible connectivity
  • Compact, low-power design for field use
Height 4.45 in
Width 3.50 in
Depth 1.10 in
Weight 0.5 lbs
CPU EN7562CT
USB Ports 1
Power 12-28 V
Switch Ports 5
Ports 5 × 10/100/1000 Mbps Ethernet ports
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
