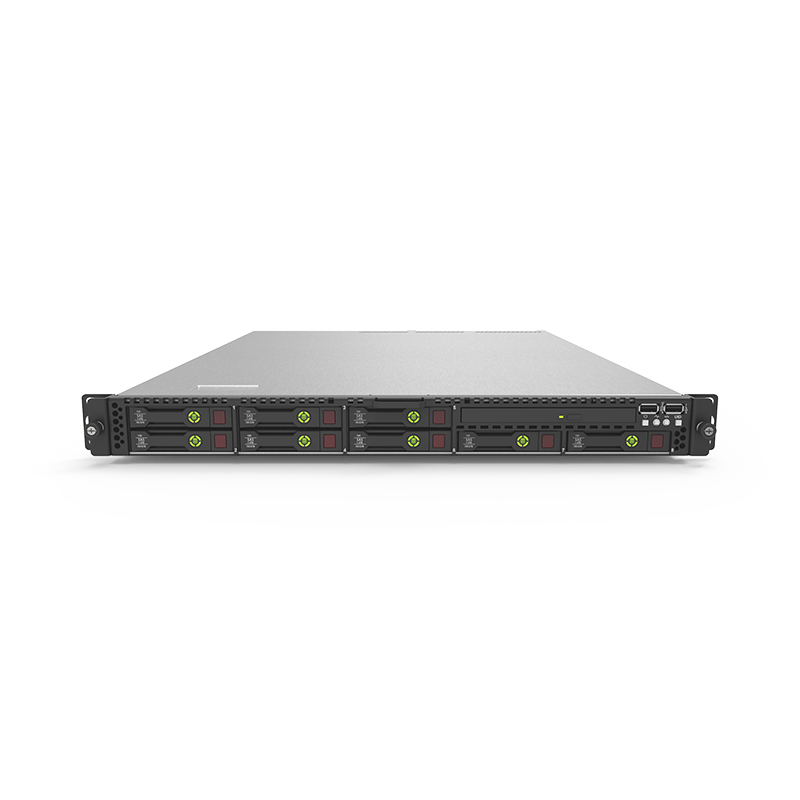

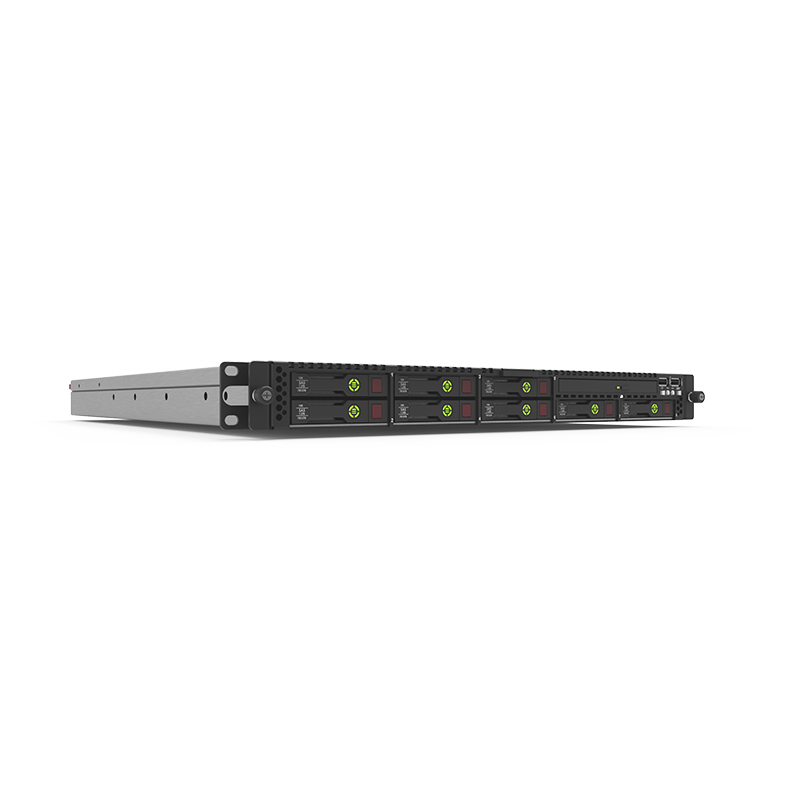

Rugged 1U DL160RS

Rugged HPE Servers

The Rugged DL160RS 1U server is based on the HPE industry leading DL160 Server platform and has a 22.00″ short depth chassis.

  • Based on Hewlett Packard Enterprise’s (HPE) industry-leading DL160 Server platform. Updated to Gen 10 plus and Gen 11.
  • Fully rugged 1U compute platform.
  • Latest HPE ProLiant and Intel® Chipset technology offerings.
  • 92% efficient power supply.
  • Enables users to minimize the operational costs of energy and space.

Datasheet

  • Based on Hewlett Packard Enterprise’s (HPE) industry-leading DL160 Server platform. Updated to Gen 10 plus and Gen 11.
  • Fully rugged 1U compute platform.
  • Latest HPE ProLiant and Intel® Chipset technology offerings.
  • 92% efficient power supply.
  • Enables users to minimize the operational costs of energy and space.

Datasheet
Height 1.75 in
Width 17.75 in
Depth 22.00 in
Weight 26.50 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 4th Gen Intel Dual Xeon Scalable Processor
External Bays 8
USB Ports 4
Power 110-220VAC, 28VDC, 700W, 900W
Chassis Type Lightweight aluminum chassis
RAM 256GB, 512GB, 1TB
Expansion Slots Qty: 1, full height
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

2019-Core-Systems-Datasheet-1U-G10-DL160RS.pdf

Related Product Designs

All products can be customized to your specs and requirements.

Request A Quote Today

Fill out the form for pricing and information

Military-Ready Design

Rugged 1U DL160RS Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged 1U DL160RS

Technical Specifications
Height 1.75 in
Width 17.75 in
Depth 22.00 in
Weight 26.50 lbs
CPU 4th Gen Intel Xeon Scalable Processor, 4th Gen Intel Dual Xeon Scalable Processor
External Bays 8
USB Ports 4
Power 110-220VAC, 28VDC, 700W, 900W
Chassis Type Lightweight aluminum chassis
RAM 256GB, 512GB, 1TB
Expansion Slots Qty: 1, full height

Rugged 1U DL160RS

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Application-Specific

Built Rugged to Last Long

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.
