Rugged M108 1U Short Depth Military Rackmount Server - Core Systems

Rugged M108

Rugged Servers

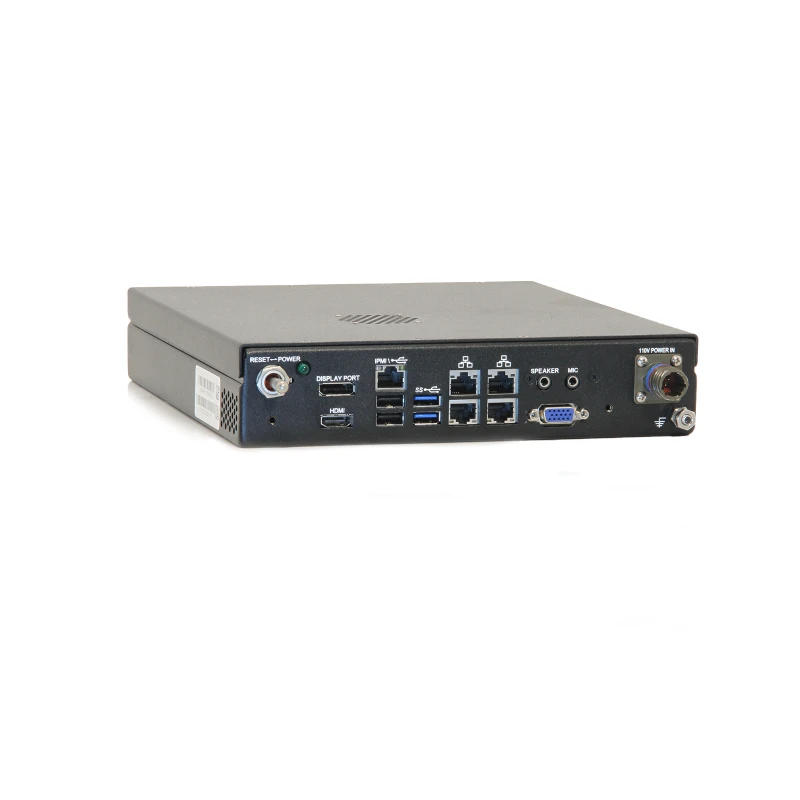

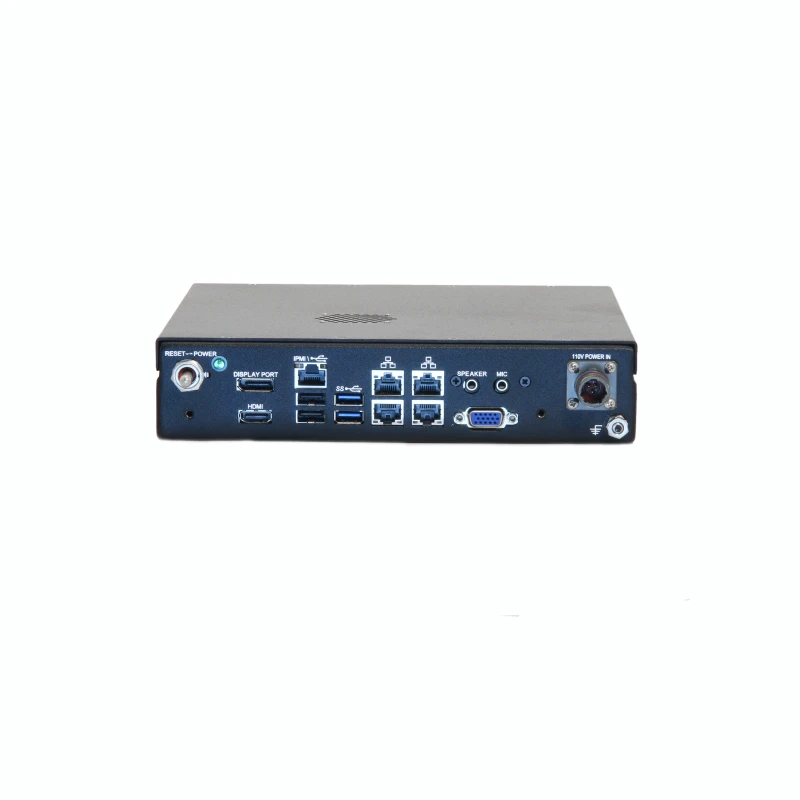

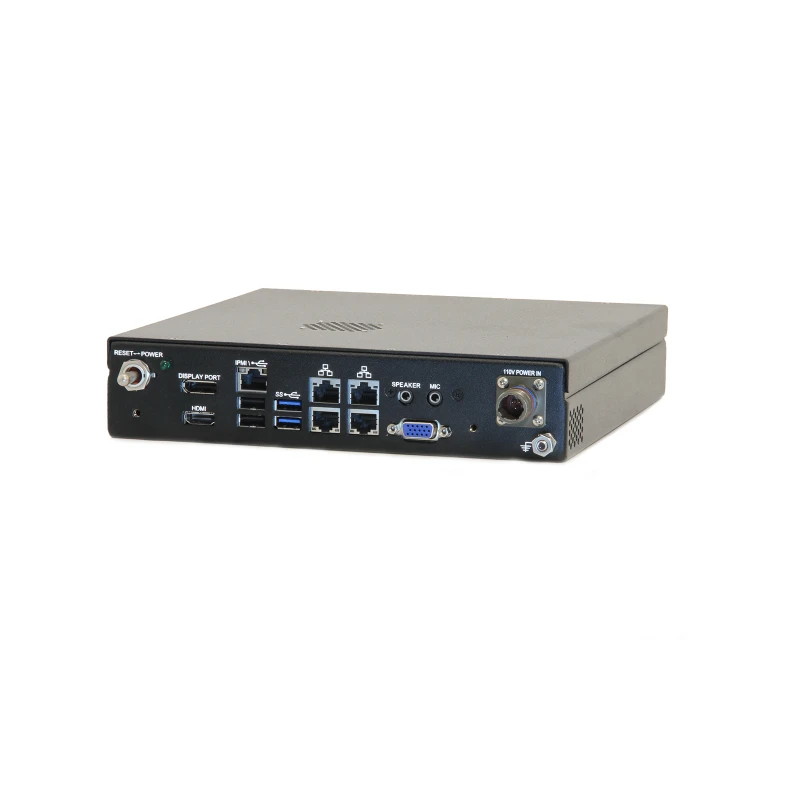

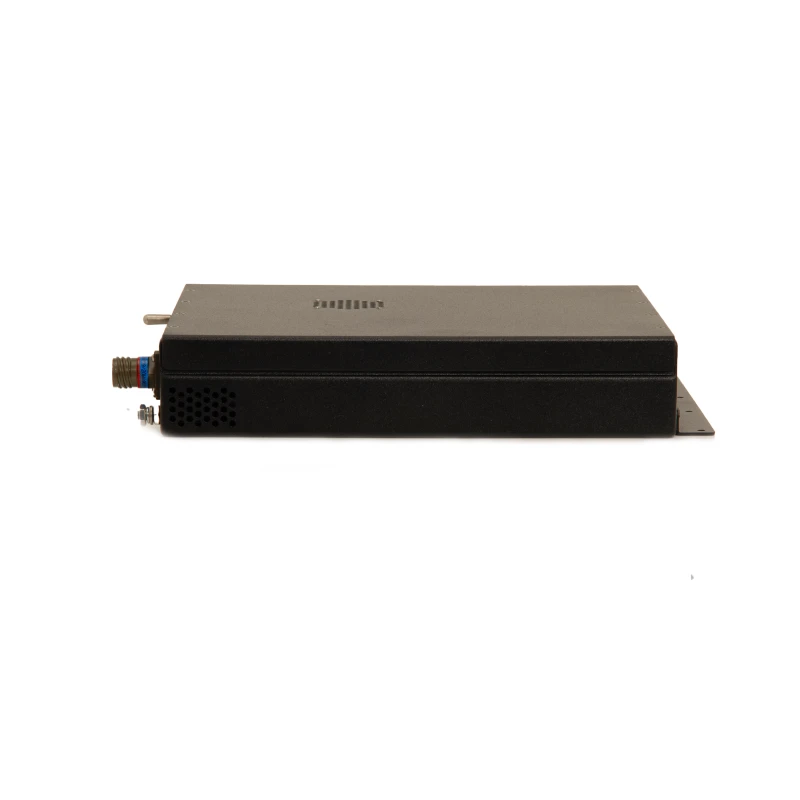

The M108 is a compact 1U server designed for half-rack enclosures, with a width of 9.5", depth of 8", and standard 1U height. Perfect for space-constrained environments, it features front-facing I/O for convenient access, including 4x USB ports, HDMI, DisplayPort, MIL-Connector, 5x Ethernet ports, speaker/microphone jack, and a VGA port.

  • Ultra-sturdy, all-aluminum chassis
  • The M108 supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 processors
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Rugged Server M108
Rugged Server M108
Rugged Server M108
Rugged Server M108
Rugged Server M108
Rugged Server M108
Rugged Server M108
Rugged Server M108
Rugged Server M108
Rugged Server M108

  • Ultra-sturdy, all-aluminum chassis
  • The M108 supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 processors
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available
Height 1.75 in
Width 9.5 in
Depth 8 in
Weight 8-11 lbs
CPU Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6
RAM 512GB, 1TB, 2TB
Expansion Slots Qty: 1, full height
USB Ports 4
PCIE Expansion Multiple slot combinations available
Cooling Thermostatically controlled via motherboard
Power 110v MIL-Connector
System Board Extended ATX Motherboard
Chassis Type Lightweight aluminum chassis
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
