Rugged M112

Rugged Servers

The M112 is a rugged short-depth 1U server made for applications with a max 12" inch depth requirement. The SWaP-Optimized M112 is tested for military use and can be customized to fit your mission.

  • Ultra-sturdy, all-aluminum chassis
  • The M112 supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 processors
  • Supports shock-mounted, hot-swap drives and a shock-mounted DVDRW
  • Supports the latest NVIDIA GPUs
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

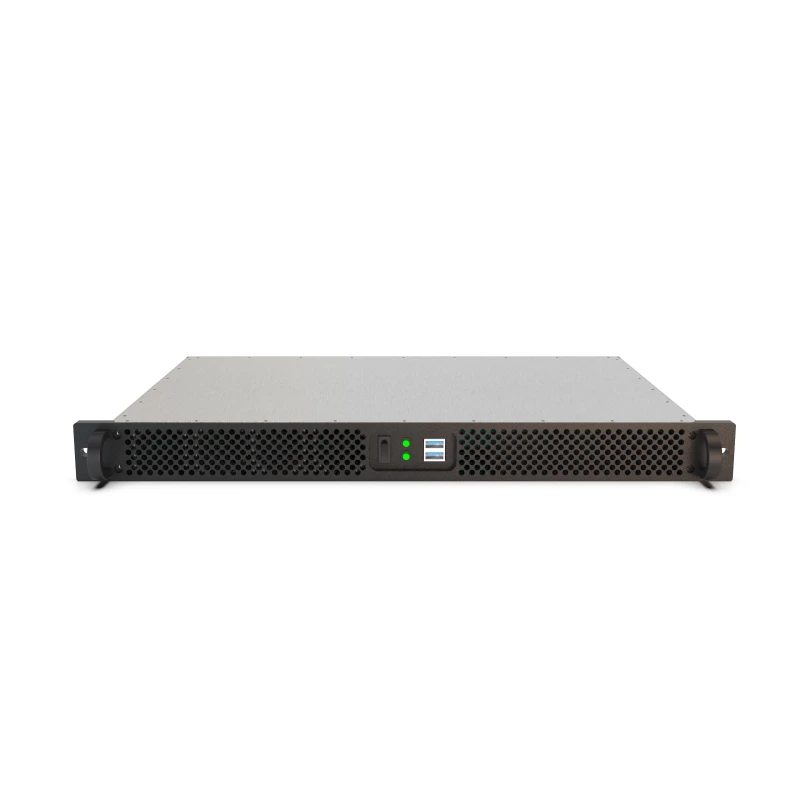

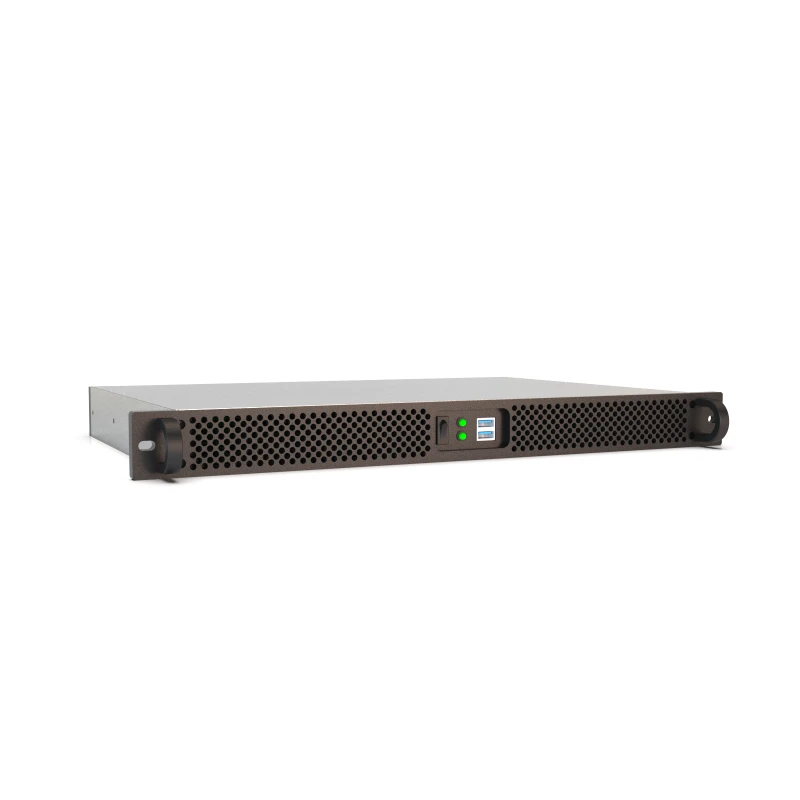

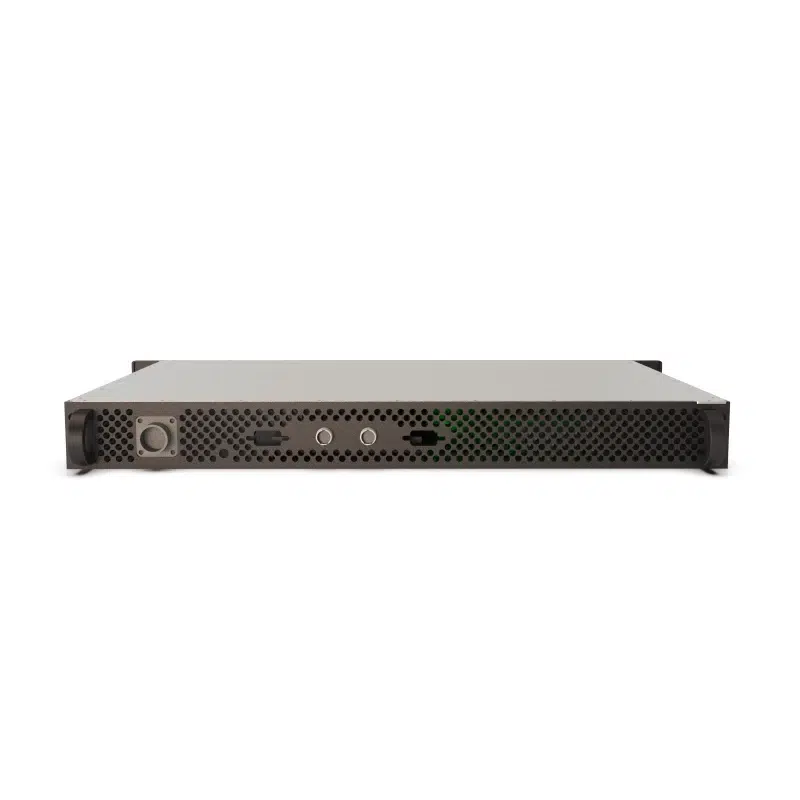

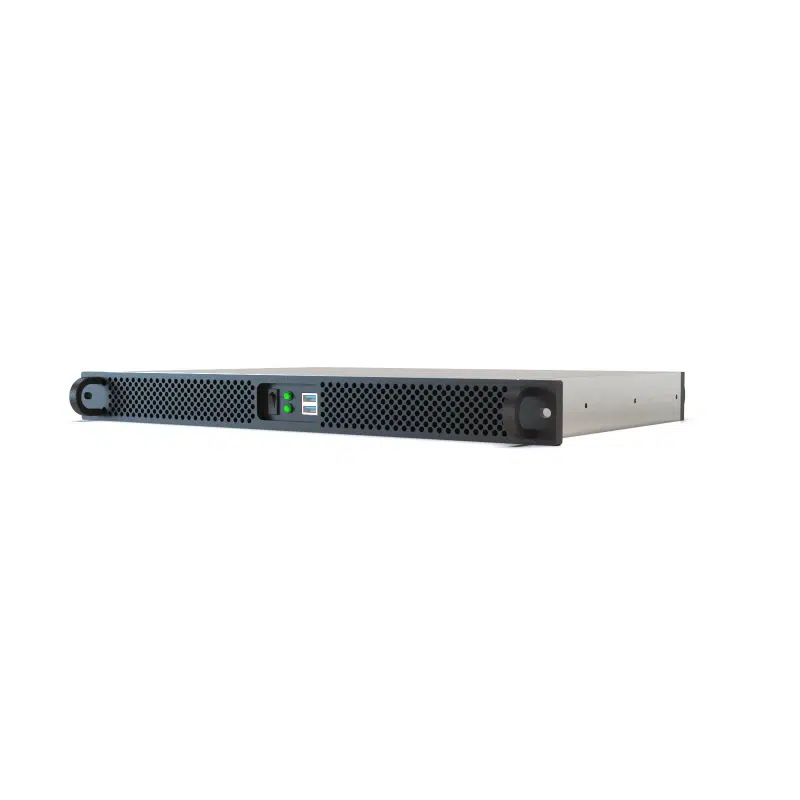

Rugged Server M112
Rugged Server M112
Rugged Server M112
Rugged Server M112
Rugged Server M112
Rugged Server M112
Rugged Server M112
Rugged Server M112

  • Ultra-sturdy, all-aluminum chassis
  • The M112 supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 processors
  • Supports shock-mounted, hot-swap drives and a shock-mounted DVDRW
  • Supports the latest NVIDIA GPUs
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet
Height 1.75 in
Width 19.00 in
Depth 12.00 in
Weight 15-21 lbs
CPU Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6
RAM Up to 2TB
Expansion Slots Qty: 1, full height
External Bays 2
USB Ports 4
PCIE Expansion Multiple slot combinations available
Cooling Thermostatically controlled via motherboard
Power 28VDC, 400W AC
System Board Extended ATX Motherboard
Chassis Type Lightweight aluminum chassis
GPU Latest NVIDIA GPUs
SSD Up to 15.36TB NVMe
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
