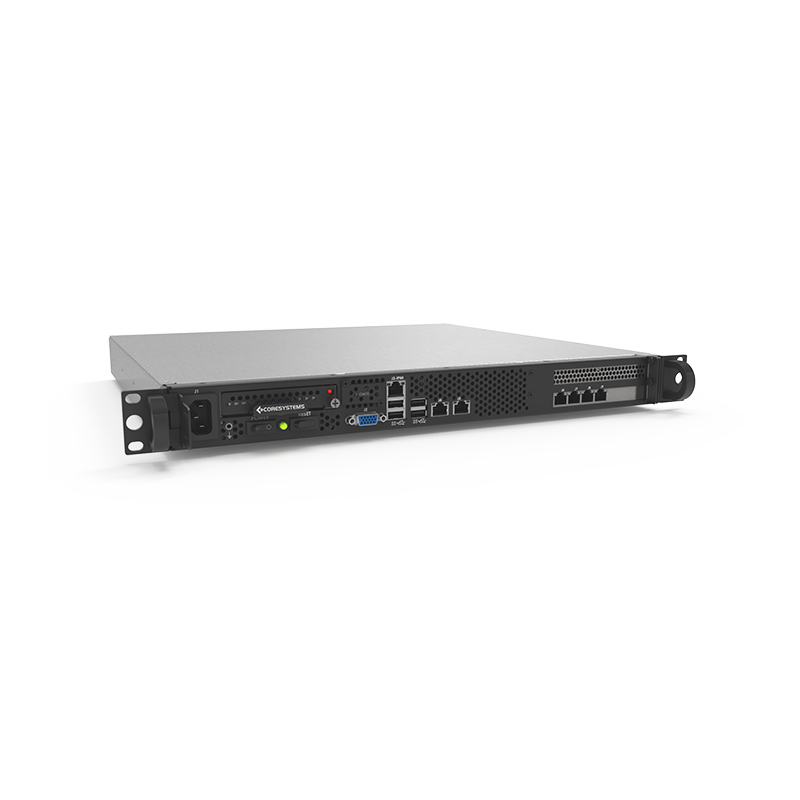

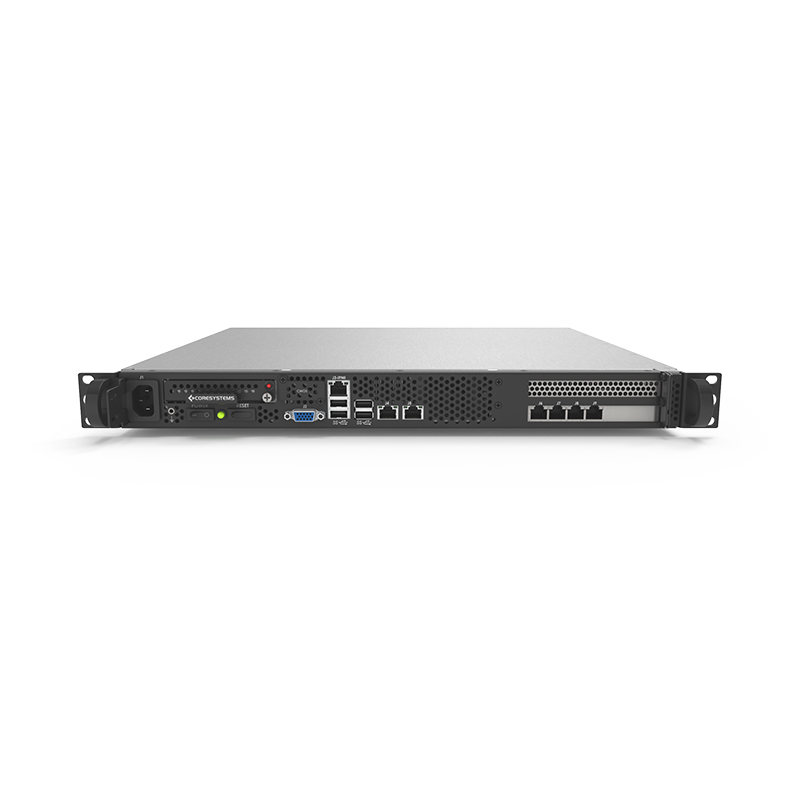

Rugged M116S-FIO

Rugged Servers

The M116S-FIO is a rugged 1U server with a front I/O and is made for applications that require short-depth solutions.

  • Rugged, sheet-metal chassis
  • The M116S-FIO supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 (coming soon) processors
  • Supports single and dual redundant power supplies in both AC and DC inputs
  • Supports Nvidia H100/H200, Nvidia L4, Nvidia L40 GPUs
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

  • Rugged, sheet-metal chassis
  • The M116S-FIO supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 (coming soon) processors
  • Supports single and dual redundant power supplies in both AC and DC inputs
  • Supports Nvidia H100/H200, Nvidia L4, Nvidia L40 GPUs
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet
Height 1.75 in
Width 17.75 in
Depth 16.00 in
Weight 15-21 lbs
CPU Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6 (coming soon)
RAM 512GB, 1TB, 2TB
Expansion Slots Qty: 2, full height
USB Ports 4
Cooling Thermostatically controlled via motherboard
Power 28VDC, 400W AC
System Board Supermicro WIO
Chassis Type Lightweight aluminum chassis
GPU Nvidia H100/H200, Nvidia L4, Nvidia L40
SSD NVMe 7.68TB, 15.36TB
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Designed, Built, and Tested in the USA

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Application-Specific

Battle-Proven Results

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Core-Systems-M116-FIO-Server-Datasheet.pdf

Related Product Designs

All products can be customized to your specs and requirements.

Request A Quote Today

Fill out the form for pricing and information

Military-Ready Design

Rugged M116S-FIO Features

Rugged Chassis

Space-saving design built for your application.

Latest Technology

Your system comes equipped with the most powerful computing technology in the industry.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Rugged M116S-FIO

Technical Specifications
Height 1.75 in
Width 17.75 in
Depth 16.00 in
Weight 15-21 lbs
CPU Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6 (coming soon)
Expansion Slots Qty: 2, full height
USB Ports 4
Cooling Thermostatically controlled via motherboard
Power 28VDC, 400W AC
System Board Supermicro WIO
Chassis Type Lightweight aluminum chassis
GPU Nvidia H100/H200, Nvidia L4, Nvidia L40
SSD NVMe 7.68TB, 15.36TB

Rugged M116S-FIO

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Designed, Built, and Tested in the USA

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Application-Specific

Battle-Proven Results

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.
