Rugged M1U-22

Rugged Displays

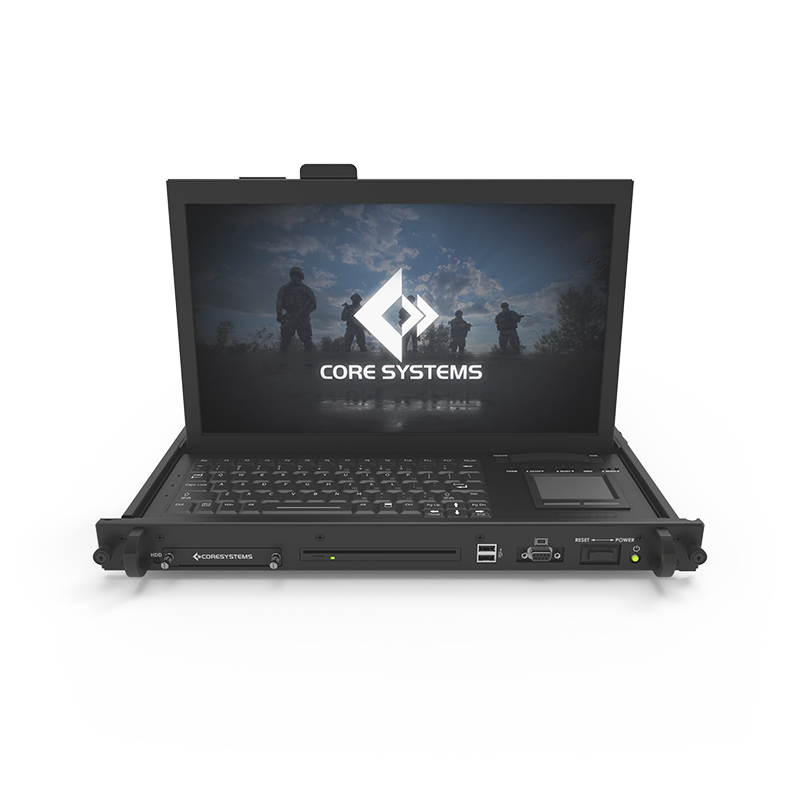

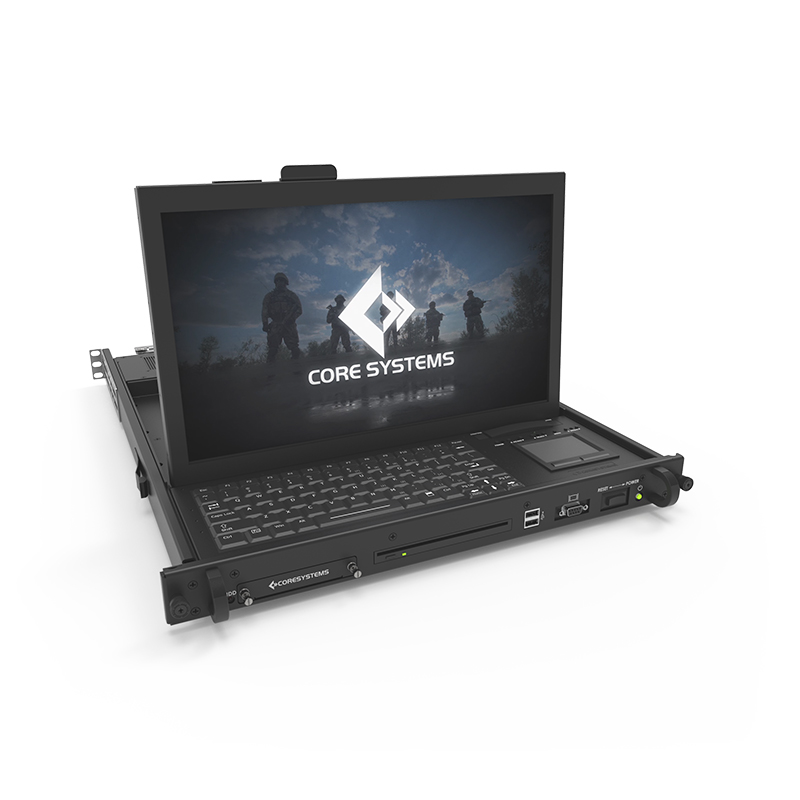

The rugged M1U-22 portable computer is a 1U 22" depth all-in-one integrated computer with a 17" HD display and keyboard.

  • Pull-Out 17″ Display
  • The M1U-22 has 1U short-depth design
  • Includes the latest Intel Quad-Core processors.
  • Includes sealed integrated USB keyboard with a touchpad.
  • Application-Specific
  • Military-Grade Design

  • Pull-Out 17″ Display
  • The M1U-22 has 1U short-depth design
  • Includes the latest Intel Quad-Core processors.
  • Includes sealed integrated USB keyboard with a touchpad.
  • Application-Specific
  • Military-Grade Design
Height 1.75 in
Width 19.00 in
Depth 22.00 in
Weight 20.00 lbs
Resolution 1920 x 1080
Display Size 17
Screens 1x
Brightness 400+ Nits
Keyboard Sealed integrated keyboard with touchpad
Input RGB/DVI/HDMI/HD-SDI/S-Video/Composite (Configurable)
Power Power options available
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
