Rugged Servers

Rugged M216S

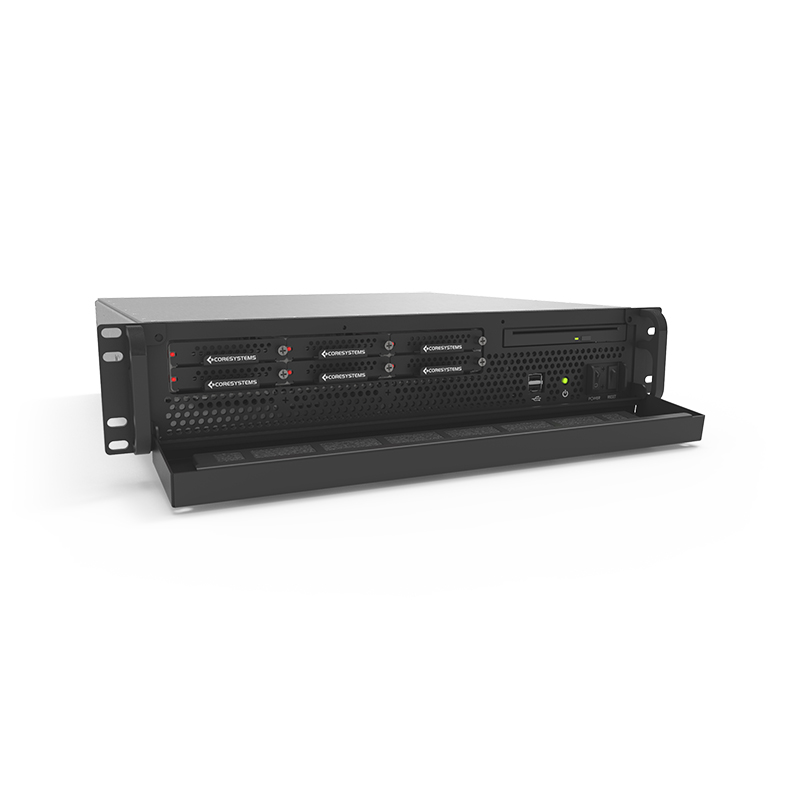

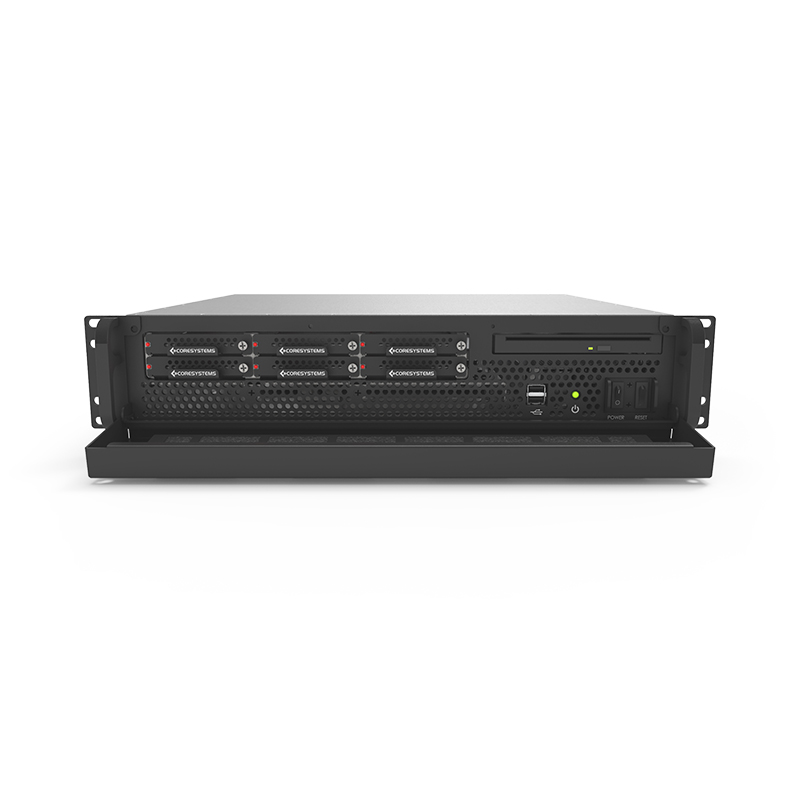

The M216S is a rugged 2U server built with sheet metal and made for applications that require short-depth solutions. The Rugged M216S server has been tested to meet military specifications.

  • Ultra-sturdy, all-aluminum chassis
  • The M216S supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 (coming soon) processors
  • Supports Nvidia H100/H200, Nvidia L4, Nvidia L40 GPUs
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

  • Ultra-sturdy, all-aluminum chassis
  • The M216S supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 (coming soon) processors
  • Supports Nvidia H100/H200, Nvidia L4, Nvidia L40 GPUs
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

Datasheet

Request A Quote For The Rugged M216S

Fill out the form below for pricing and information on the Rugged M216S

Rugged Servers

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 16.00 in
Weight 18-22 lbs
CPU Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6 (coming soon)
RAM 512GB, 1TB, 2TB
Expansion Slots Qty: 3, full height
External Bays 6
USB Ports 6
Power 120/240VAC, 28VDC, 650W
System Board Extended ATX Motherboard
Chassis Type Lightweight aluminum chassis
GPU Nvidia H100/H200, Nvidia L4, Nvidia L40
SSD NVMe 7.68TB, 15.36TB
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Datasheet

Rugged Design

Designed, Built, and Tested in the USA

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Application-Specific

Short-Depth Design

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.

Core-Systems-M216s-Server-Datasheet.pdf

Rugged Servers

Related Designs

Military-Ready Design

Rugged M216S Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Request A Quote For The Rugged M216S

Fill out the form below for pricing and information on the Rugged M216S

Rugged M216S

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 16.00 in
Weight 18-22 lbs
CPU Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6 (coming soon)
Expansion Slots Qty: 3, full height
External Bays 6
USB Ports 6
Power 120/240VAC, 28VDC, 650W
System Board Extended ATX Motherboard
Chassis Type Lightweight aluminum chassis
GPU Nvidia H100/H200, Nvidia L4, Nvidia L40
SSD NVMe 7.68TB, 15.36TB

Rugged M216S

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Rugged Design

Designed, Built, and Tested in the USA

Core Systems provides a line of Rugged Rackmount Servers that are designed and built to meet or exceed MIL-STD-810F, MIL-STD-810G, MIL-STD-461F, and MIL-S-901D specs.

Application-Specific

Short-Depth Design

These fully-sealed short-depth servers come in a variety of sizes and are configurable and upgradeable to meet the standards needed for your mission.
