Rugged M320


The M320 Raptor is a short-depth 3U MIL-Spec server made for rugged applications with a maximum 20” depth requirement and is tested to military standards.

Rugged M320 3U Server

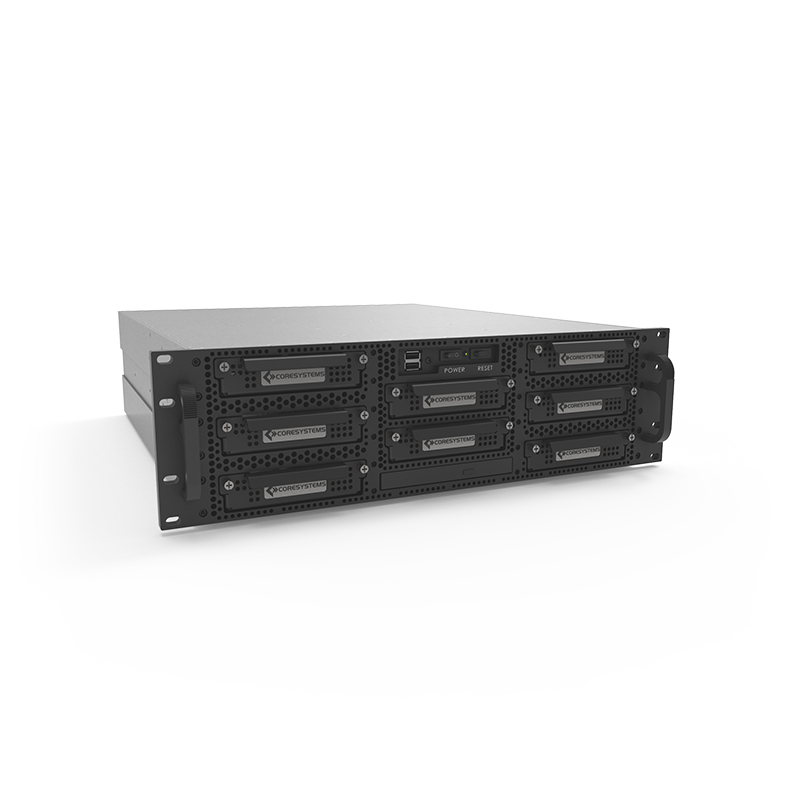

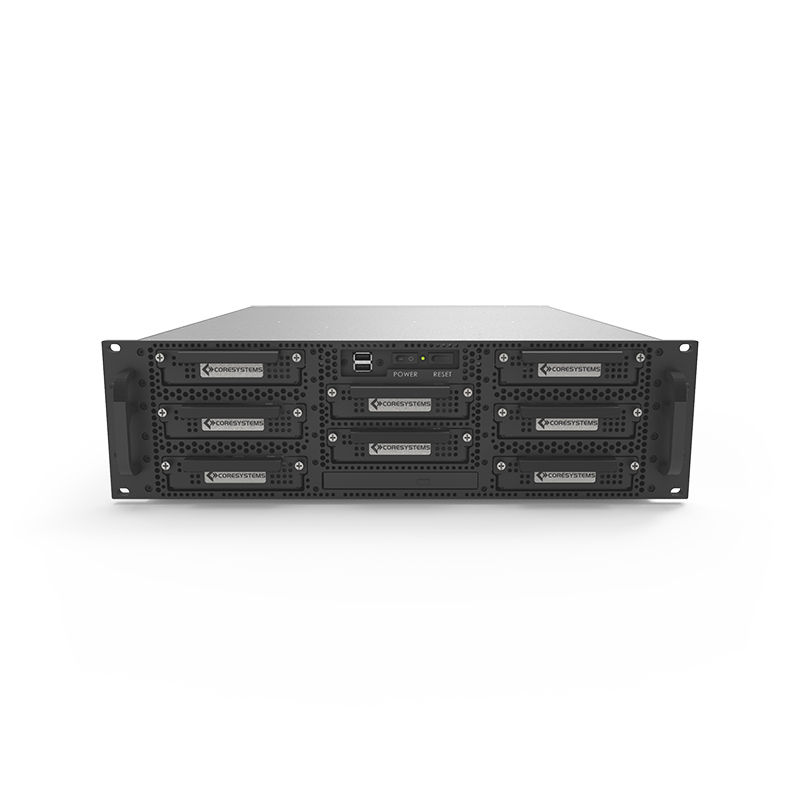

The M320 Raptor is a short- depth 3U server made for rugged applications with a maximum 20” depth requirement. The machined aircraft aluminum chassis provides a superior strength to weight ratio. The M320 rugged system has eight front-accessible hot-swap drives and dual Xeon v4 CPU’s with the option of six additional rear accessible PCI cards. All internal cabling is customized and secured to the chassis to optimize airflow and system cooling. The M320 server is built to survive high shock and vibration environments. Options for conformal coating and EMI filtering are offered on each system.


Technical Specifications


Environmental Specifications:

Operational Temperature Range: MIL-STD-810F/G, Method 501.5, Procedures I/II; -10C to +50C with solid state drives

Storage: MIL-STD-810F/G, Method 501.5, Procedures I/II; -40C to +75C

Humidity: MIL-STD-810F/G, Method 507.4; 48 hour, 95% RH 40-65C with humidity option

Altitude: MIL-STD-810F/G, Method 500.4; 12,500ft operation with 40,000ft transport

Vibration: MIL-STD-810F/G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hzz, 60min/axis with solid state drives

Shock: MIL-STD-810F/G, Method 516.6, Procedures I/V; 20g, 11msec functional shock; 40g 11msec crash hazard shock

Other: MIL-STD-461F/G CE102 & RE102; Meets using CORESYSTEMS optional 461 EMI Kit

Mechanical:

Height - 5.25 in (13.33 cm), Width - 17.75 in (45.08 cm), Depth - 20.00 in (50.8 cm), Weight - 30-35 lbs (13.6-15.8 kg)

CPU:

Intel® CPU architecture options from Intel embedded long-life roadmap; Vapor chamber technology heatsinks; Intel E5-2600v4 Series CPUs; Dual 10-Core or dual 12-Core CPU options

Expansion Slots:

Five (5) full-height, 3/4 length slot; multiple PCIe slot combinations are available

External Bays:

Option 1- (std) Two (2) removable hot swap SATA or SAS 2.5 HDDs; Option 2- Two (2) removable hot swap 2.5 SATA SSD HDDs; Option 3- (offered along with option 1 or 2) One (1) slim line CD/DVD (R/W) or Blu-ray ODD

Cooling:

90mm high speed, high volume fans (4 front mount + 2 PS); Thermostatically controlled via motherboard

Power Supply Options:

Option 1- (std) 600W AC power supply; Option 2- 28VDC power supply

System Board:

X9DR3-F, Socket 2011, 256GB ECC Reg. DDR3, PS/2 KB/M, DB9 Serial, VGA, 4-USB, 2-GBLAN, On-board SAS, IPMI w/ KVM over IP

Request a Quote for the Rugged M320 3U Server
