Rugged M322S - Core Systems

Rugged M322S

Rugged Servers

The M322S is a rugged 3U server built with aircraft aluminum and made for applications that require short-depth solutions. The Rugged M322S server has been tested to meet military specifications.

  • Ultra-sturdy, all-aluminum chassis
  • The M322S supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 processors
  • Supports Nvidia H100/H200, Nvidia L4, Nvidia L40 GPUs
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available

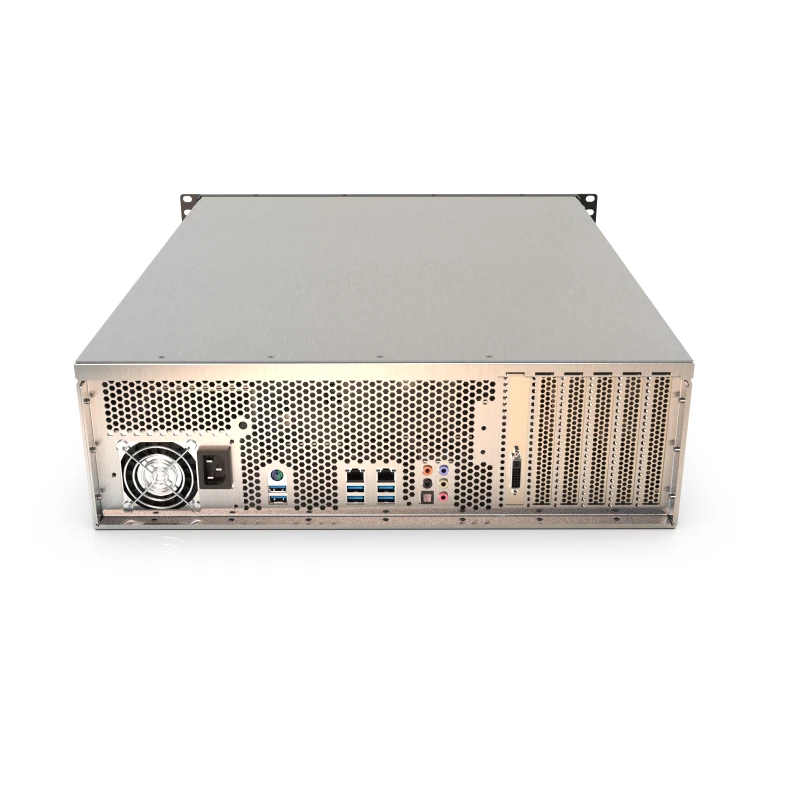

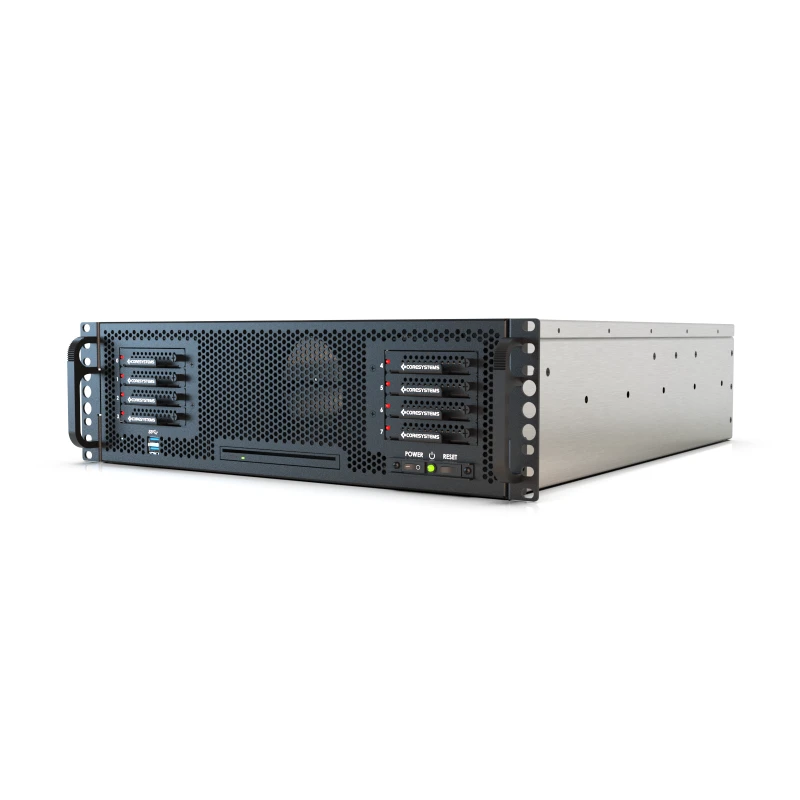

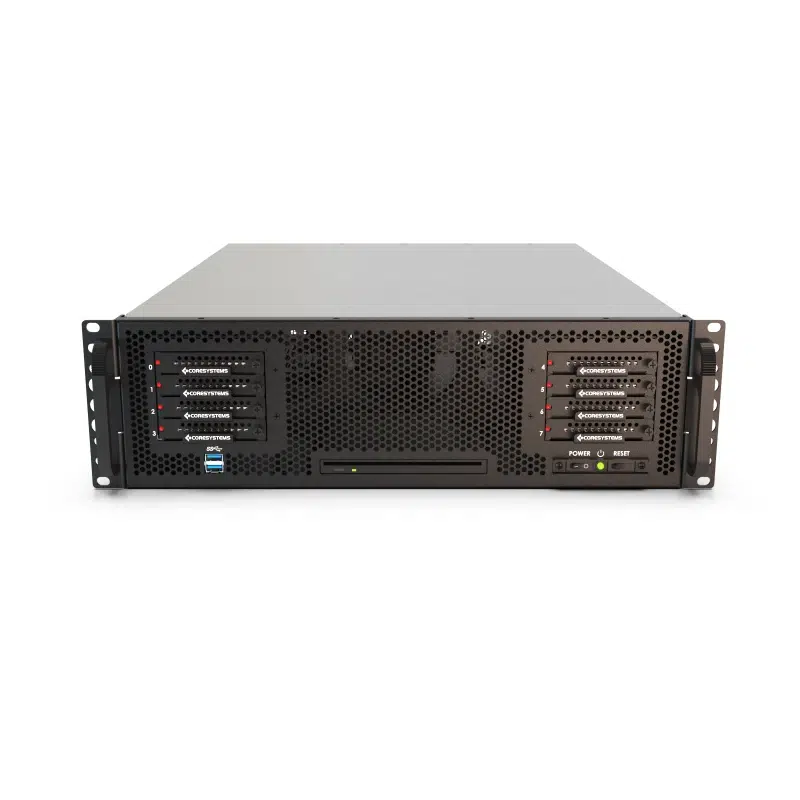

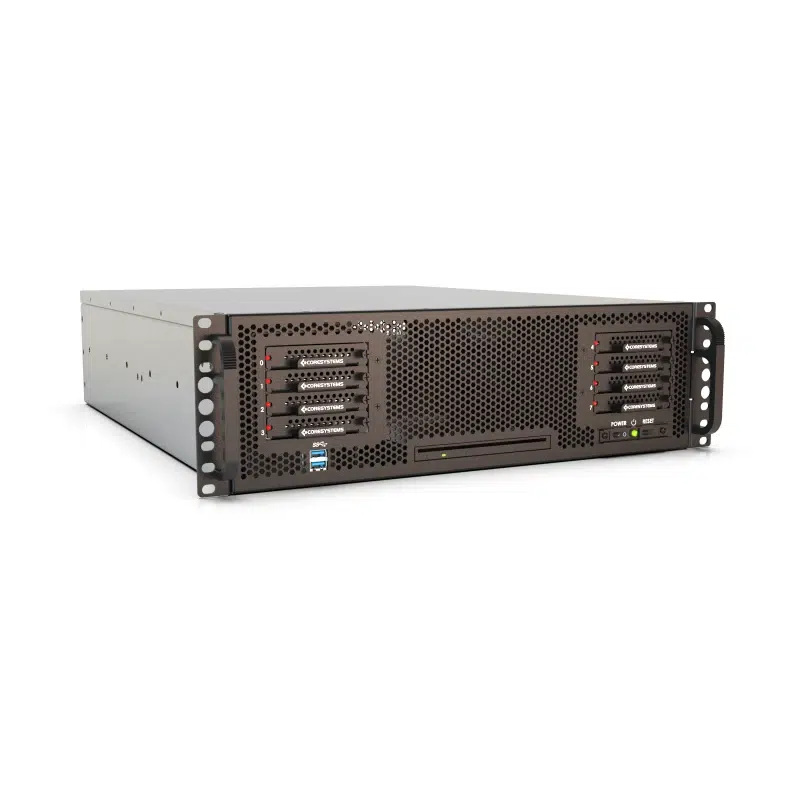

Rugged Server M322S
Rugged Server M322S
Rugged Server M322S
Rugged Server M322S
Rugged Server M322S
Rugged Server M322S
Rugged Server M322S
Rugged Server M322S

  • Ultra-sturdy, all-aluminum chassis
  • The M322S supports the latest Intel Xeon Scalable 4th and 5th Gen, Intel Xeon 6 processors
  • Supports Nvidia H100/H200, Nvidia L4, Nvidia L40 GPUs
  • Application-Specific Design
  • Military-Grade Design
  • Transit Options Available
Height 5.25 in
Width 17.75 in
Depth 22.00 in
Weight 30-35 lbs
CPU Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6
RAM 512GB, 1TB, 2TB
Expansion Slots Qty: 5, low profile
External Bays 2
USB Ports 4
PCIE Expansion Multiple slot combinations available
Cooling Thermostatically controlled via motherboard, 90mm high speed, high volume fans
Power 28VDC, 600W AC
System Board Extended ATX Motherboard
Chassis Type Lightweight aluminum chassis
GPU Nvidia H100/H200, Nvidia L4, Nvidia L40
SSD NVMe 7.68TB, 15.36TB
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
