Rugged ML-2026K - Core Systems

Rugged ML-2026K

Rugged Displays

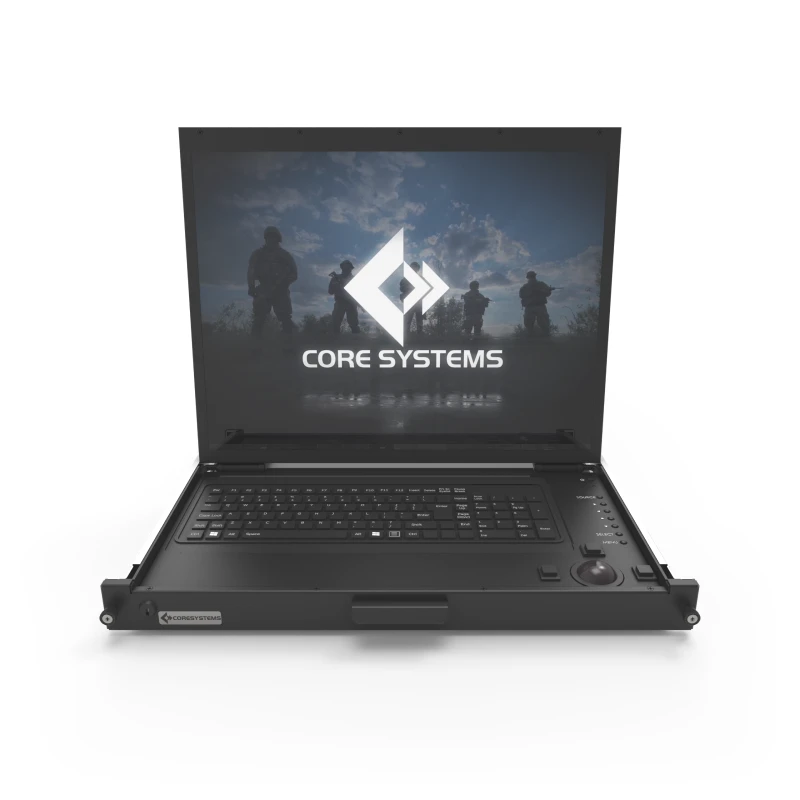

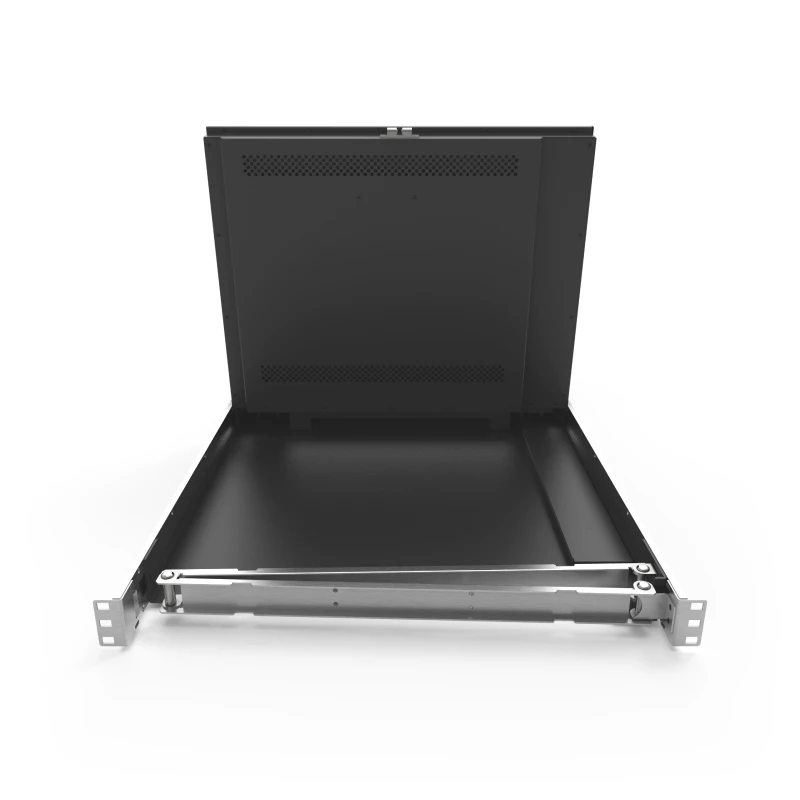

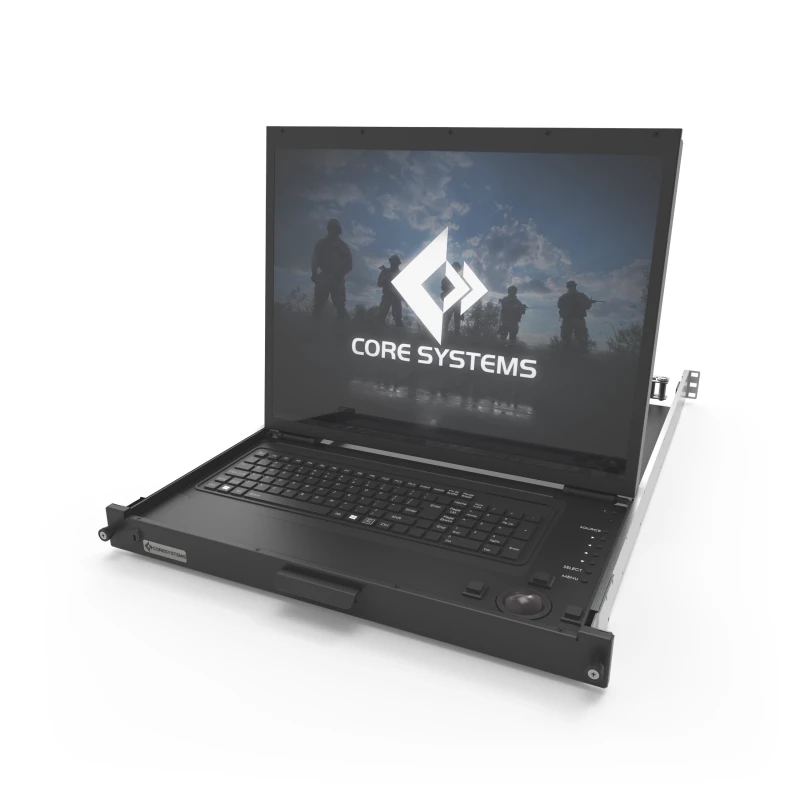

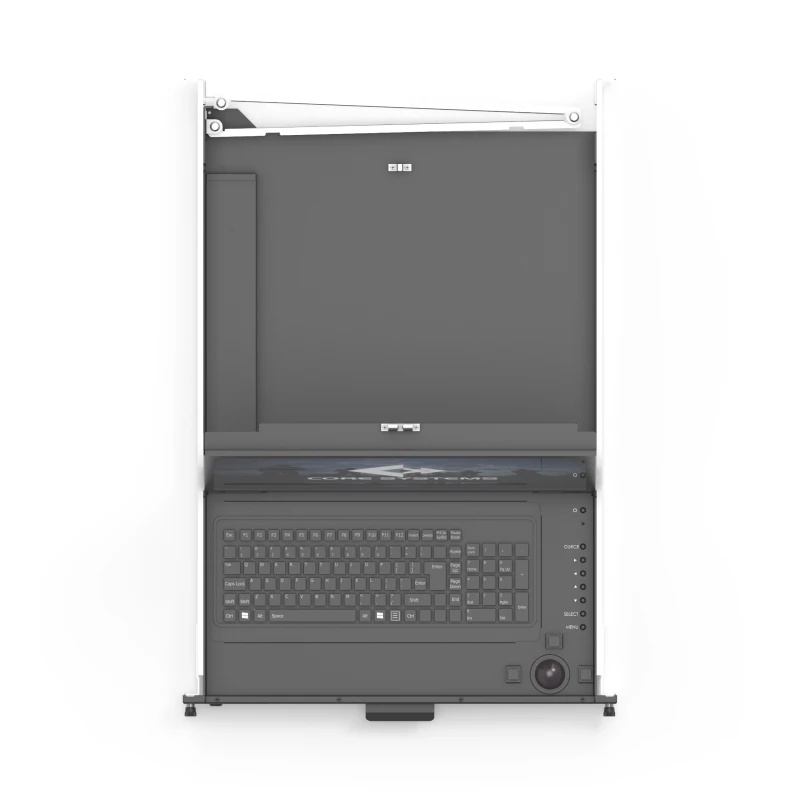

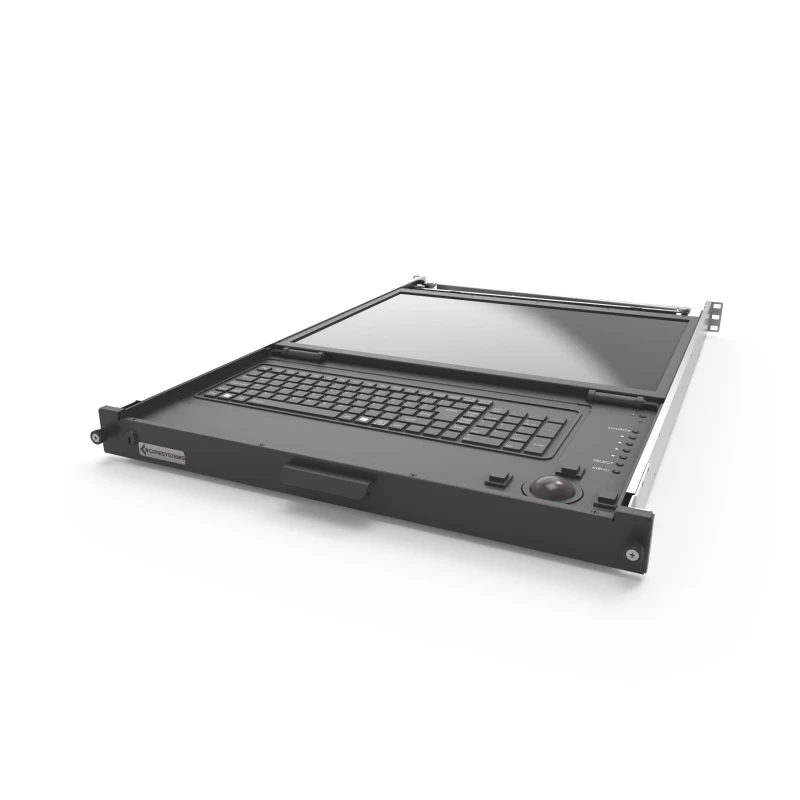

The rugged MLD2026K from Core Systems is an industry leading 20″ rackmount LCD in a 1U form factor. The layflat display features a reinforced quick-release cable retraction arm and a sealed keyboard and 38MM three button trackball. The screen is adjustable up to 90 degrees at a height of 15.3 inches.

  • Clamshell 20” display with a native pixel resolution of 1600 x 1200.

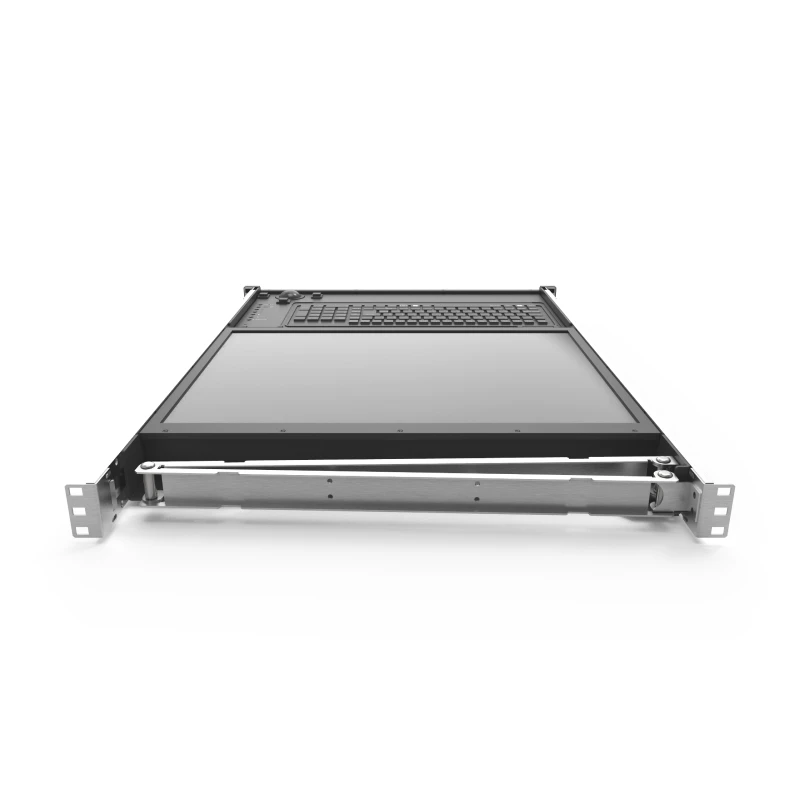

  • Reinforced quick-release cable retention arm.
  • Hulapoint pointing device.
  • 8 or 16 Port Integrated KVM w/ OSD
  • DVI and VGA input.
  • Anti-reflective glass.

Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K
Rugged Display ML-2026K

  • Clamshell 20” display with a native pixel resolution of 1600 x 1200.
  • Reinforced quick-release cable retention arm.
  • Hulapoint pointing device.
  • 8 or 16 Port Integrated KVM w/ OSD
  • DVI and VGA input.
  • Anti-reflective glass.
Height 1.75 in
Width 20.10 in
Depth 26.00 in
Weight 24.00 lbs
Resolution 1600 x 1200
Display Size 20
Screens 1x
Brightness 400+ Nits
KVM Option 8 or 16 Port Integrated KVM w/ OSD
Input RGB/DVI/HDMI/HD-SDI/S-Video/Composite (Configurable)
Power Power options available
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
