Rugged MLD-2 - Core Systems

Rugged MLD-2

Rugged Displays

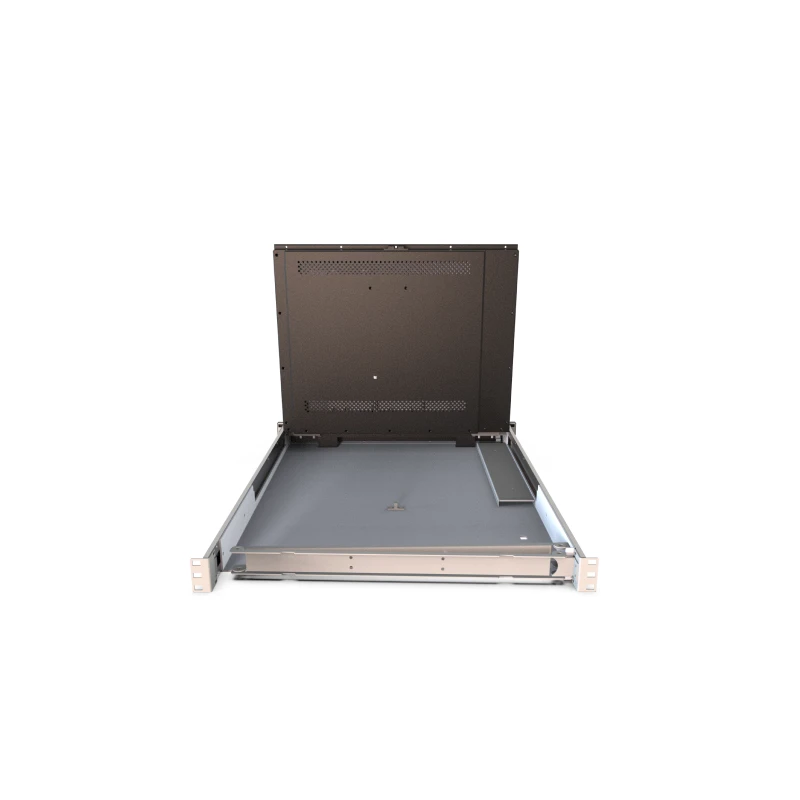

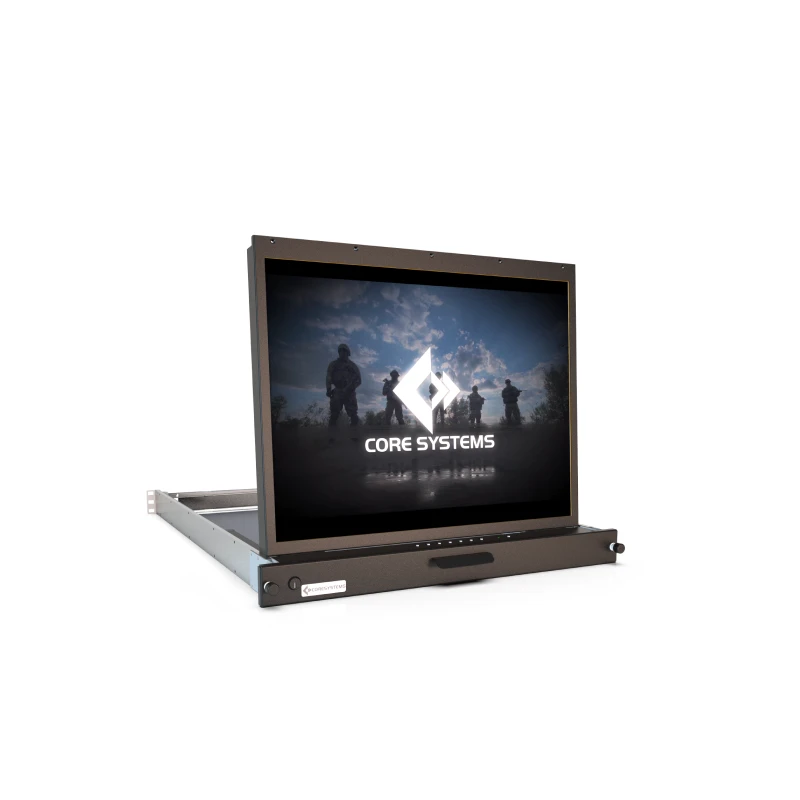

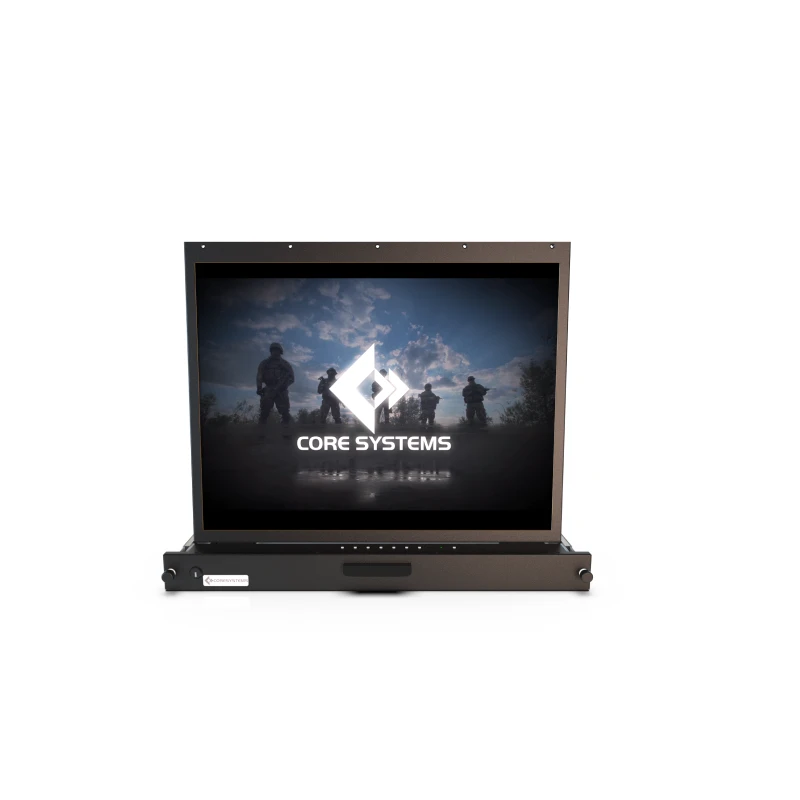

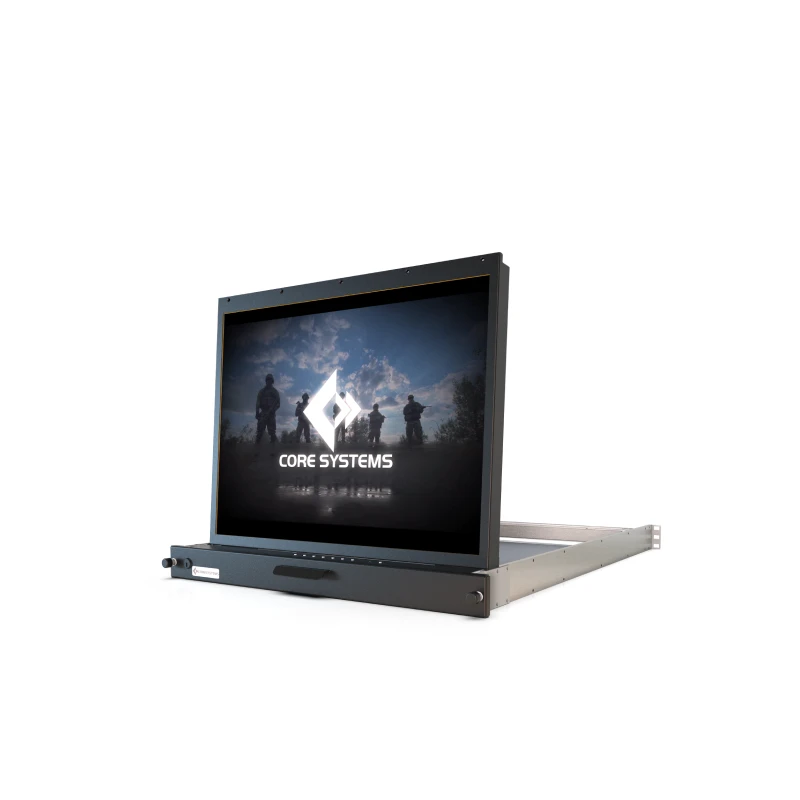

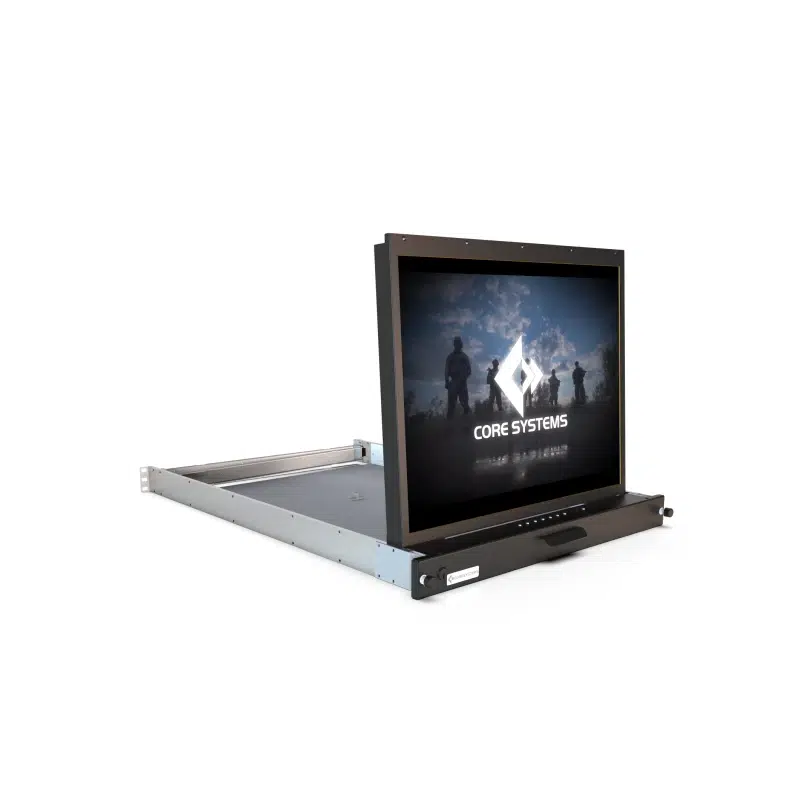

The ML-2026 1U 19" Layflat LCD from Core Systems is fully rugged and ready for military use.

  • Clamshell 19” display with a native pixel resolution of 1280 x 1024.
  • Reinforced quick-release cable retention arm.
  • Hulapoint pointing device.
  • 4 or 8-port KVM for use with multiple computers in a single rack.
  • DVI and VGA input.
  • Anti-reflective glass.

Rugged Display MLD-2
Rugged Display MLD-2
Rugged Display MLD-2
Rugged Display MLD-2
Rugged Display MLD-2
Rugged Display MLD-2
Rugged Display MLD-2
Rugged Display MLD-2
Rugged Display MLD-2
Rugged Display MLD-2

  • Clamshell 19” display with a native pixel resolution of 1280 x 1024.
  • Reinforced quick-release cable retention arm.
  • Hulapoint pointing device.
  • 4 or 8-port KVM for use with multiple computers in a single rack.
  • DVI and VGA input.
  • Anti-reflective glass.
Height 1.75 in
Width 19.00 in
Depth 25.00 in
Weight 35.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 1x
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
