Rugged MPM12 - 36x Buttons

Rugged Displays

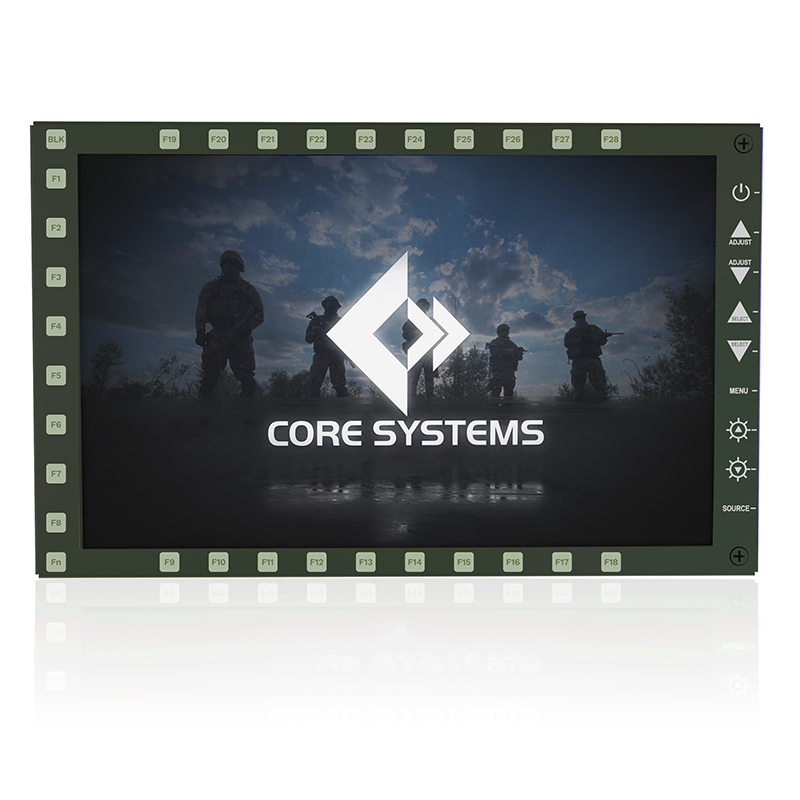

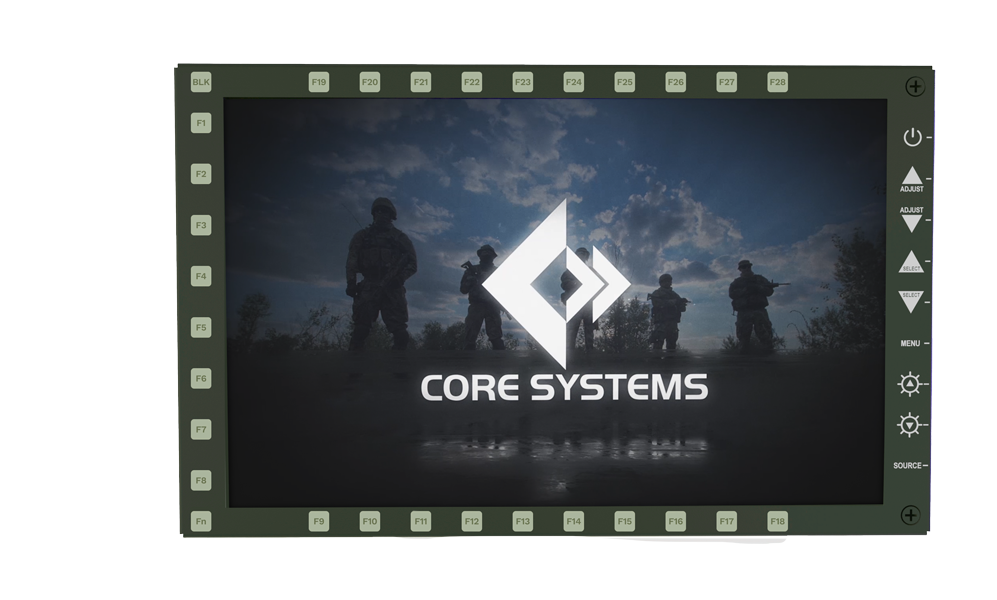

The rugged MPM12 is a 12-inch widescreen LCD with a 1280 x 800 resolution and anti-reflective, optically-bonded glass for clear visibility. It includes a 36-button front panel with 18 function buttons and an 8-button USB keypad for easy control.

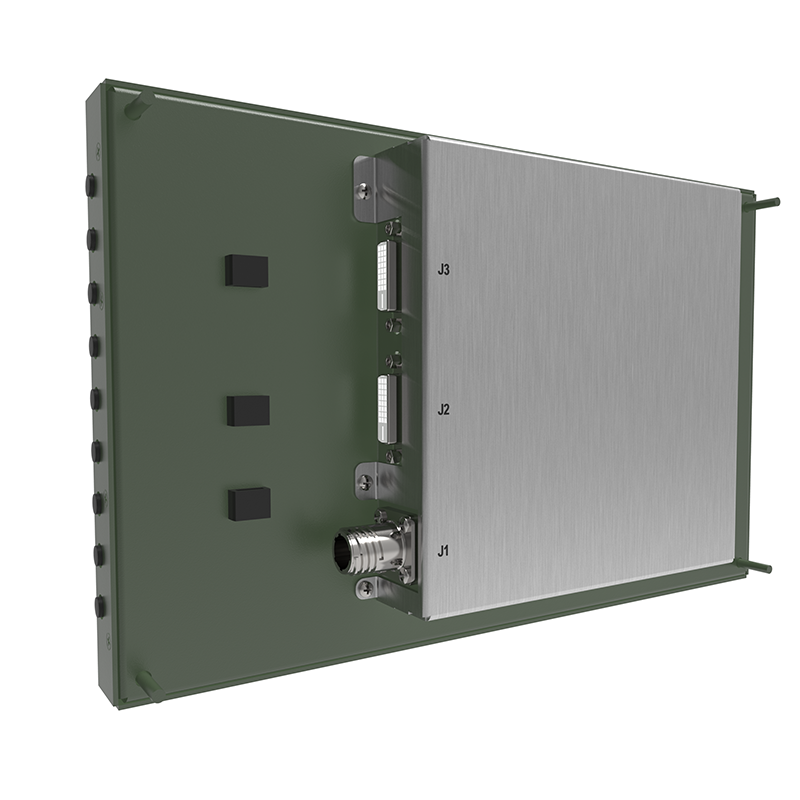

Equpped with USB, DVI, and MIL-Circular Power inputs, it’s versatile for various connections. The MPM12 is tested to MIL-Spec and DO-160E standards, the shock-mounted and is built to perform reliably in tough environments on land, in the air, and at sea, making it ideal for mission-critical operations.

  • Military-grade design
  • Anti-reflective glass
  • Shock-mounted, DO-160E tested
  • 12” Display

Datasheet

Equpped with USB, DVI, and MIL-Circular Power inputs, it’s versatile for various connections. The MPM12 is tested to MIL-Spec and DO-160E standards, the shock-mounted and is built to perform reliably in tough environments on land, in the air, and at sea, making it ideal for mission-critical operations.

  • Military-grade design
  • Anti-reflective glass
  • Shock-mounted, DO-160E tested
  • 12” Display

Datasheet
Height 7.50 in
Width 12.00 in
Depth 2.35 in
Weight 5 lbs
Resolution 1280 x 800
Display Size 12
Screens 1x
Response Time 35ms
Brightness Two buttons to control brightness
Colors 16.7 M
Display Luminance 1000 NITS
Display Surface Hardened Glass 6H
Display Input DVI-D x 1, Mil-Circular Power Connector
Power Power options available
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
