Rugged MPM7 - 36x Button

Rugged Displays

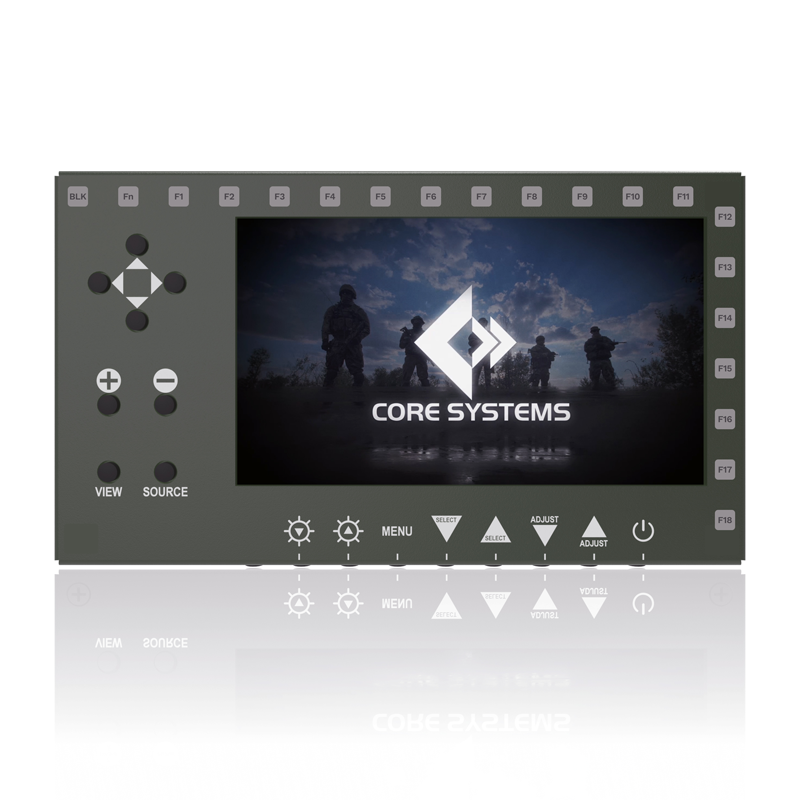

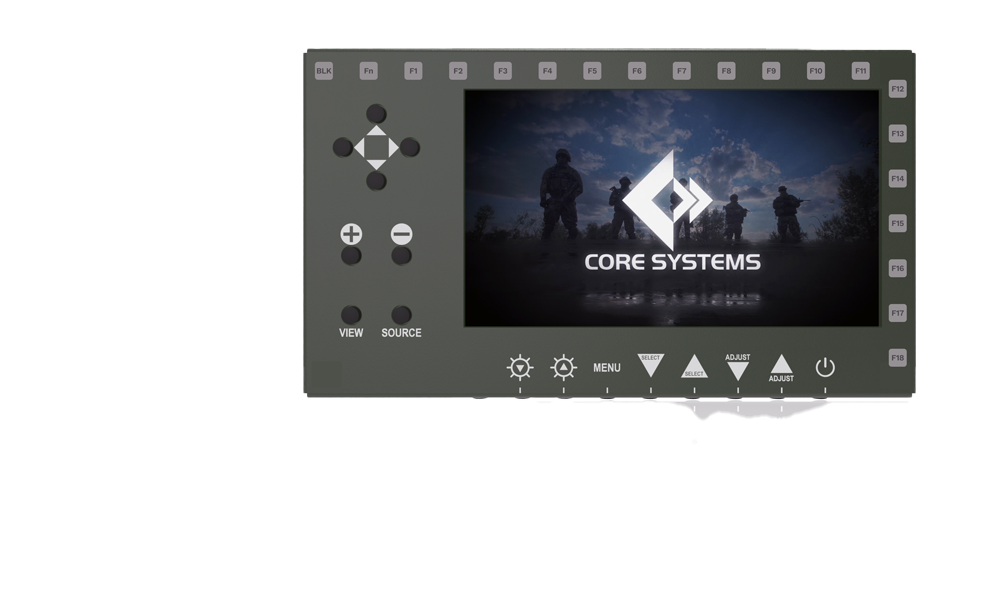

The rugged MPM7 is a 7-inch widescreen LCD with a 1920 x 1080 resolution and anti-reflective, optically-bonded glass for clear visibility. It includes a 36-button front panel with 18 function buttons and an 8-button USB keypad for easy control.

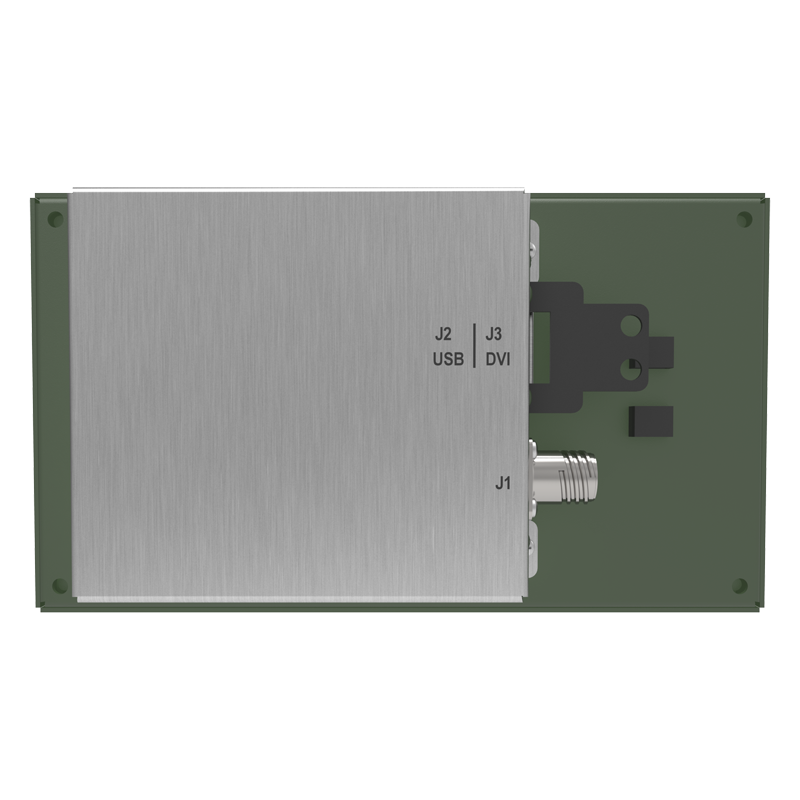

With USB, DVI, and MIL-Circular Power inputs, it’s versatile for various connections. Tested to MIL-Spec and DO-160E standards, the shock-mounted MPM7 is built to perform reliably in tough environments on land, in the air, and at sea, making it ideal for mission-critical operations.

Military-grade design
Anti-reflective glass
Shock-mounted, DO-160E tested
7” Display

5.25" Height
2.35" Depth
9.20" Width
3 lbs Weight

Datasheet


Height	5.25 in
Width	9.20 in
Depth	2.35 in
Weight	3 lbs
Resolution	1920 x 1080
Display Size	7
Screens	1x
Response Time	35ms
Brightness	Two buttons to control brightness
Colors	16.7M
Blanking	Enable/disable all externally visible indicators from emitting light via the "blanking command"
Display Surface	Hardened glass 6H
Display Luminance	1000 nits luminance
Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)


Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Built Rugged to Last Long

rugged-mp7-display-datasheet.pdf
