Rugged HPE Servers

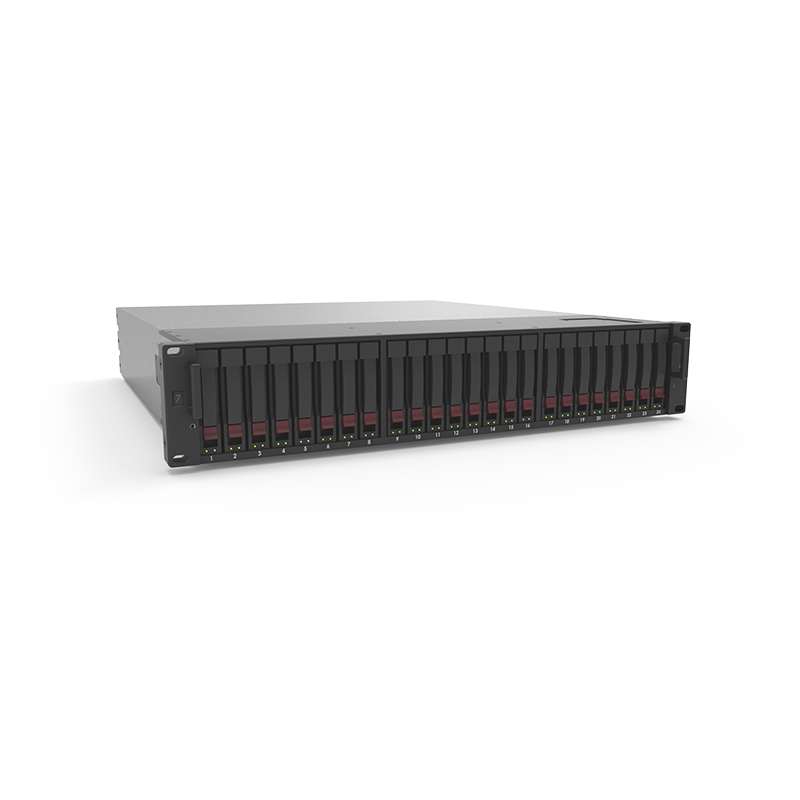

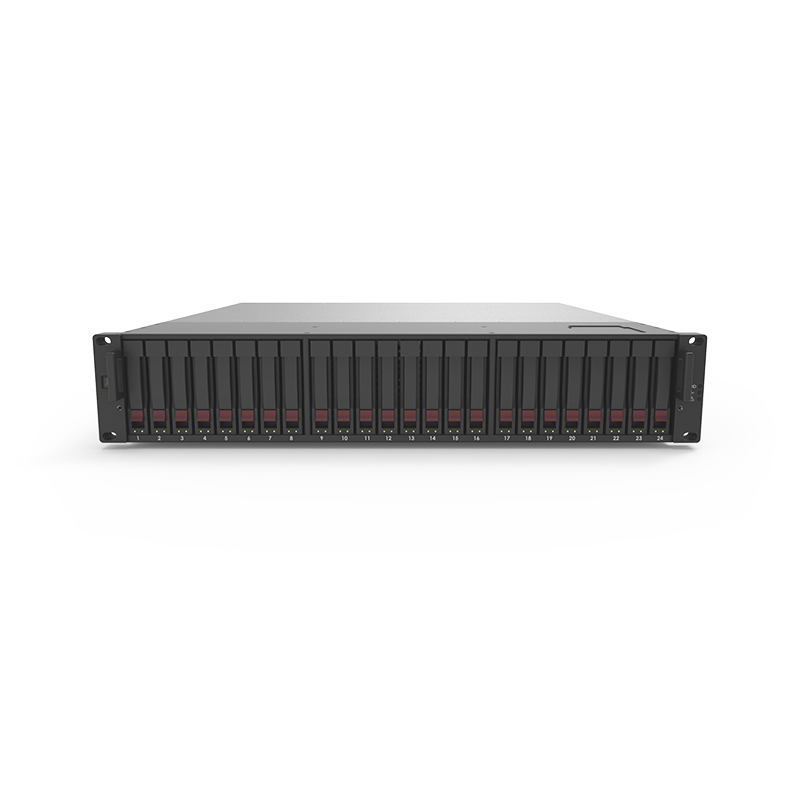

Rugged MSA 2050RS

The Rugged HPE MSA 2050RS SAN Storage system is designed for affordable application acceleration that is ideal for small and remote military deployments.

  • Designed for affordable application acceleration that is ideal for small and remote office deployments.
  • SAN Storage system delivers 2x higher performance than the previous generation in a rugged 2U form factor.

Datasheet

  • Designed for affordable application acceleration that is ideal for small and remote office deployments.
  • SAN Storage system delivers 2x higher performance than the previous generation in a rugged 2U form factor.

Datasheet

Rugged HPE Servers

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 22.00 in
Weight 31.00 lbs
Power 110-220VAC
Chassis Type Lightweight aluminum chassis
RAM 1TB
Expansion Slots Qty: 1, full height
Storage Capacity 614 TB SFF or 1344 TB LFF
Storage Expansion HPE MSA 2050 LFF Disk Enclosure or HPE MSA 2050 SFF Disk Enclosure or the HPE MSA 2050 SAN DC-Power Carrier Grade SFF Disk Enclosure
Drive 192 SFF or 96 LFF maximum including expansion
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

2019-Core-Systems-Datasheet-2U-G10-MSA-2050.pdf

Rugged HPE Servers

Related Designs

Military-Ready Design

Rugged MSA 2050RS Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged MSA 2050RS

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 22.00 in
Weight 31.00 lbs
Power 110-220VAC
Chassis Type Lightweight aluminum chassis
RAM 1TB
Expansion Slots Qty: 1, full height
Storage Capacity 614 TB SFF or 1344 TB LFF
Storage Expansion HPE MSA 2050 LFF Disk Enclosure or HPE MSA 2050 SFF Disk Enclosure or the HPE MSA 2050 SAN DC-Power Carrier Grade SFF Disk Enclosure
Drive 192 SFF or 96 LFF maximum including expansion

Rugged MSA 2050RS

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

Rugged MSA 2050RS
