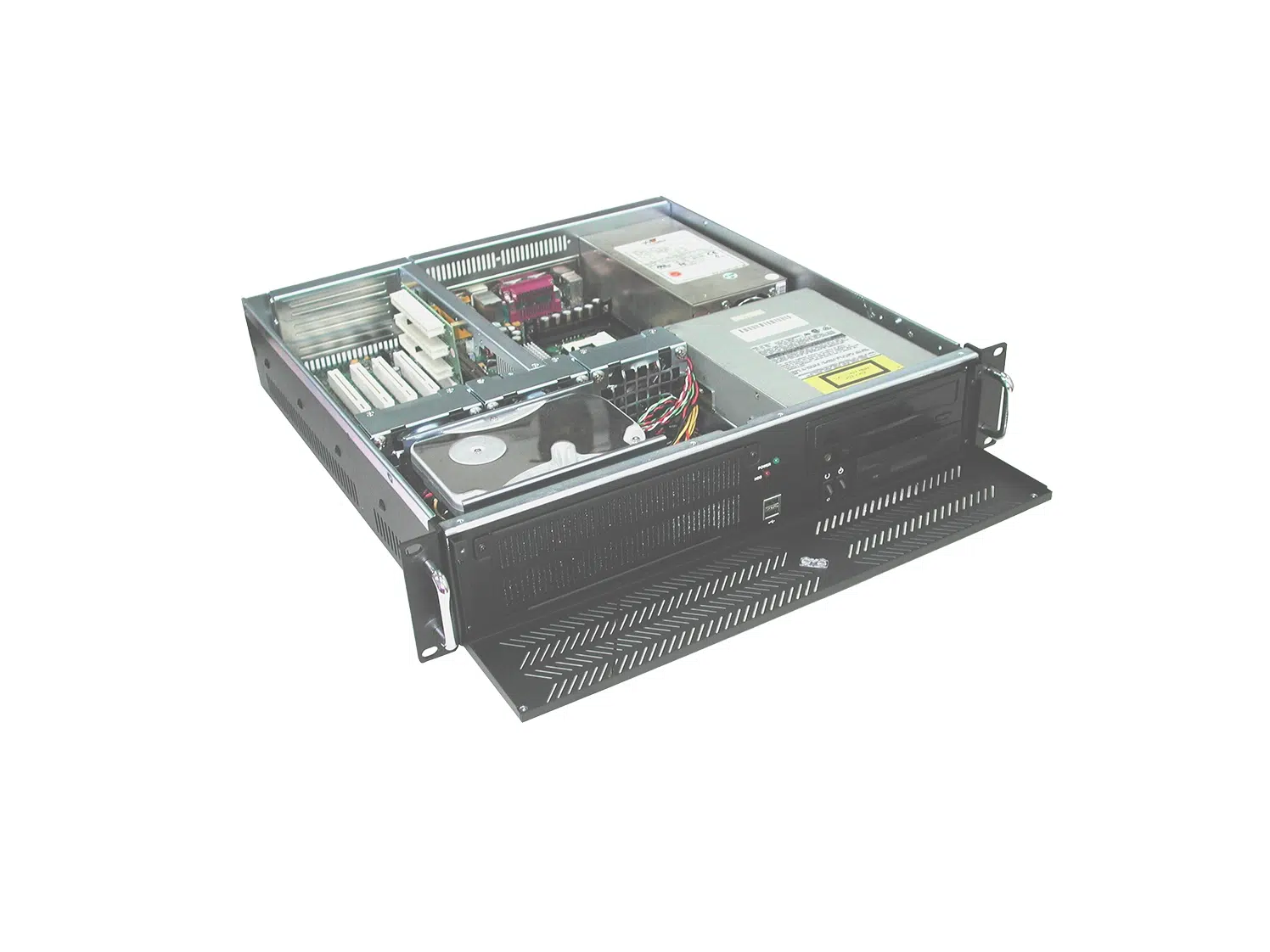

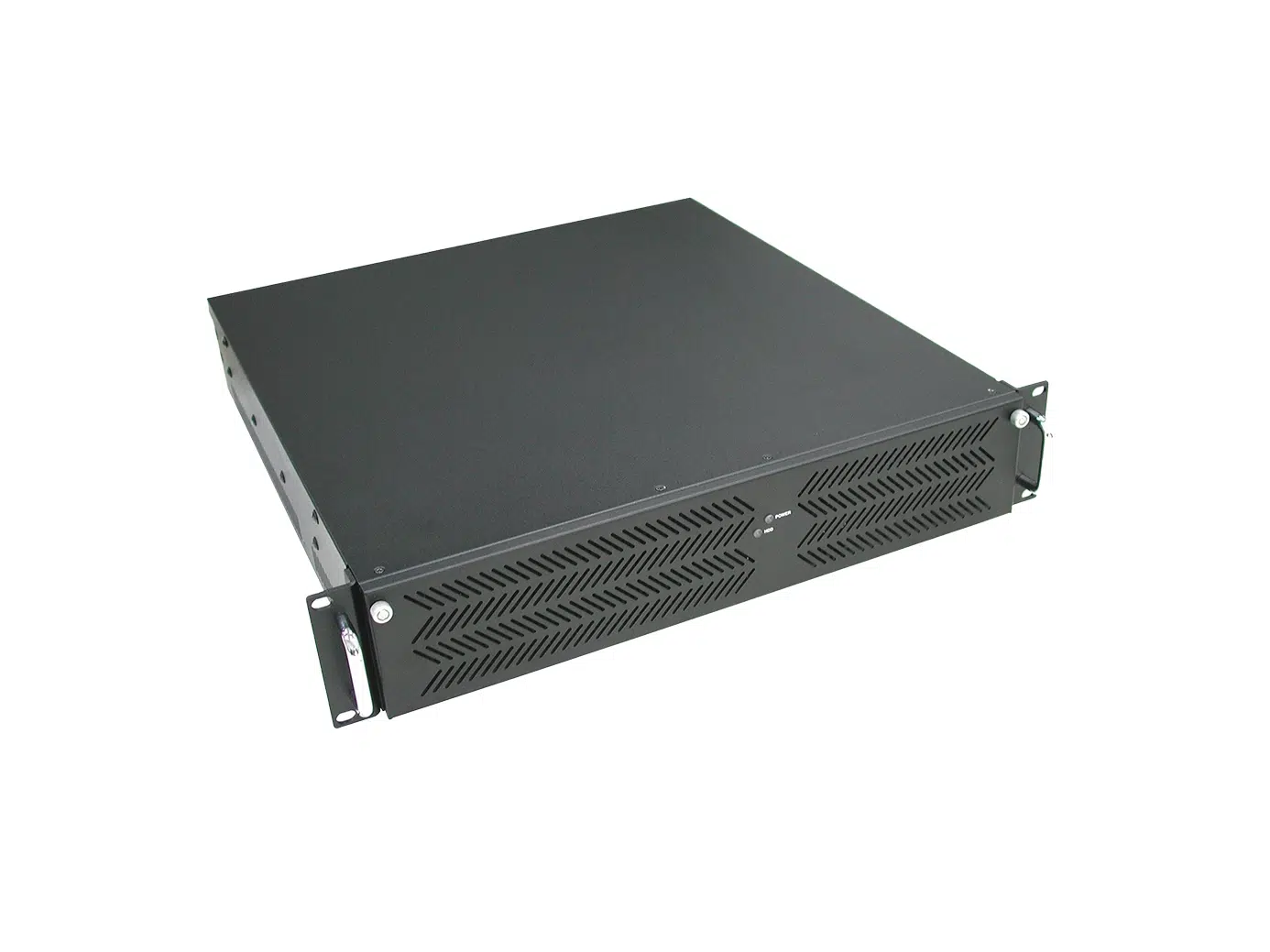

Industrial R213

Industrial Servers

The R213 is a robust, 2U server designed for industrial environments that demand space efficiency and powerful performance. The R213 supports modern Intel Xeon processors, delivering exceptional computing power for data-intensive tasks.

2U Industrial-Grade Durability
Modern Processor Support
GPU Support
Efficient Cooling
Storage Flexibility
Reliable and rugged for harsh conditions
Multiple expansion slots
Customizable storage and memory options

3.50" Height
17.7" Depth
19.00" Width
30.9 lbs Weight


Height	3.50 in
Width	19.00 in
Depth	17.7 in
Weight	30.9 lbs
CPU	Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6
RAM	Up to 512GB
Expansion Slots	Qty: 3, full height
USB Ports	2
Cooling	3 x (80mm=42.5CFM ea.) Fans
Power	500W AC
System Board	Extended ATX Motherboard
Environmental Specifications	Tested to meet military environmental specifications.

Height

3.50 in

Width

19.00 in

Depth

17.7 in

Weight

30.9 lbs

CPU

Intel Xeon Scalable 4th Gen, Intel Xeon Scalable 5th Gen, Intel Xeon 6

RAM

Up to 512GB

Expansion Slots

Qty: 3, full height

USB Ports

Cooling

3 x (80mm=42.5CFM ea.) Fans

Power

500W AC

System Board

Extended ATX Motherboard

Environmental Specifications

Tested to meet military environmental specifications.


Environmental Specifications	Tested to meet military environmental specifications.
Operational Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature	MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity	MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude	MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration	MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock	MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other	MIL-STD-461F CE & RE emissions (with 461 filter option)

Environmental Specifications

Tested to meet military environmental specifications.

Operational Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Storage Temperature

MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C

Humidity

MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)

Altitude

MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport

Vibration

MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis

Shock

MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock

Other

MIL-STD-461F CE & RE emissions (with 461 filter option)
