Industrial Servers

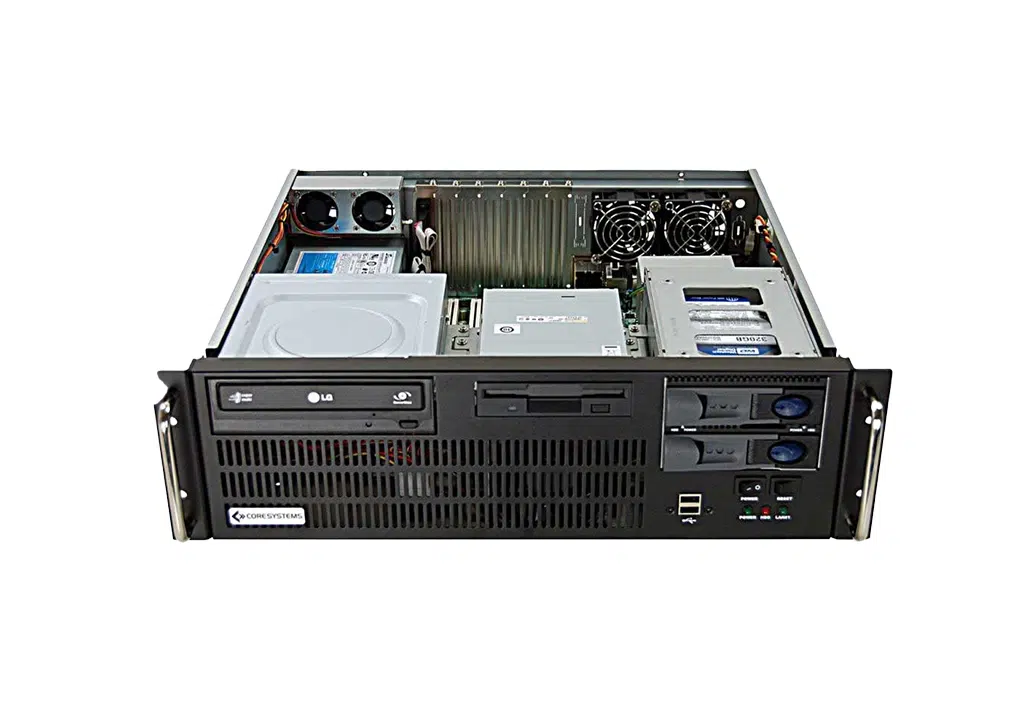

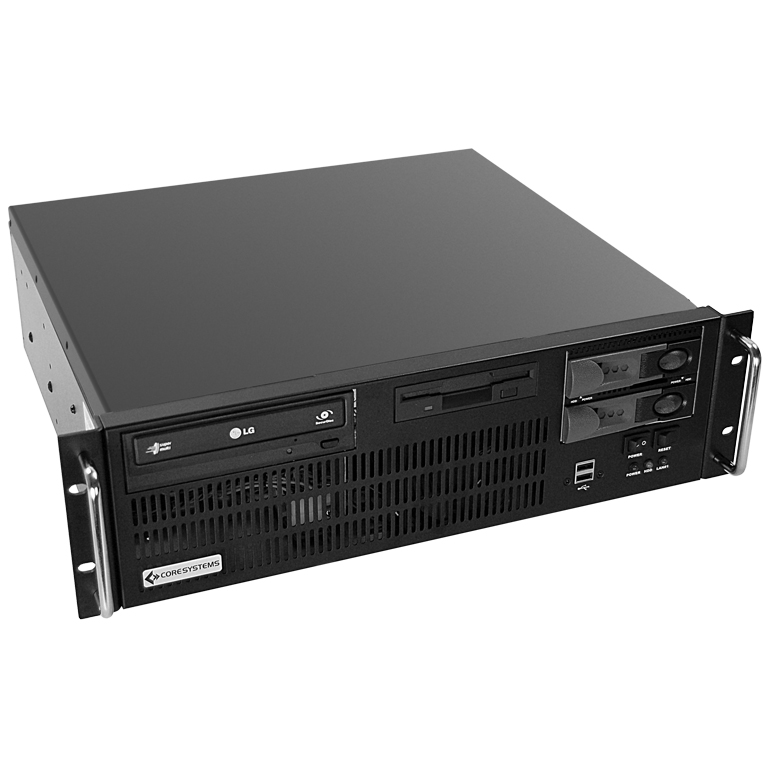

Industrial 3U R320

The Industrial 3U R3203 system has been designed with leading-edge COTS components to provide an extremely fast yet stable platform.

  • Latest Intel Core Processor
  • 4x Hot-Swap Drives
  • 5x Rear I/O Slots

  • Latest Intel Core Processor
  • 4x Hot-Swap Drives
  • 5x Rear I/O Slots

Industrial Servers

Technical Specifications
Height 5.25 in
Width 19.00 in
Depth 25.6 in
Weight 39 lbs
RAM 512GB
Expansion Slots Qty: 1, full height
External Bays 7
USB Ports 8
Cooling 4 x 92mm (51 CFM ea.) Center Mount, 1 x 60mm (23.5 CFM ea.) Rear Mount
Power 100/240VAC, Output Power 520W
Environmental Specifications Tested to meet military environmental specifications.
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Designed & Tested in the USA

Coming Soon

Industrial Servers

Related Designs

Military-Ready Design

Industrial 3U R320 Features

Short-Depth

Built with an all-aluminum chassis designed to handle any extreme.

Latest Technology

We provide the latest computing technology to give you the edge you need out in the field.

Ready for Action

With room for expansion, your system has the versatility your mission requires.

Industrial 3U R320

Technical Specifications
Height 5.25 in
Width 19.00 in
Depth 25.6 in
Weight 39 lbs

Industrial 3U R320

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Application-Specific

Designed & Tested in the USA

Industrial 3U R320
