Rugged HPE Servers

Rugged 1U EL4000RS

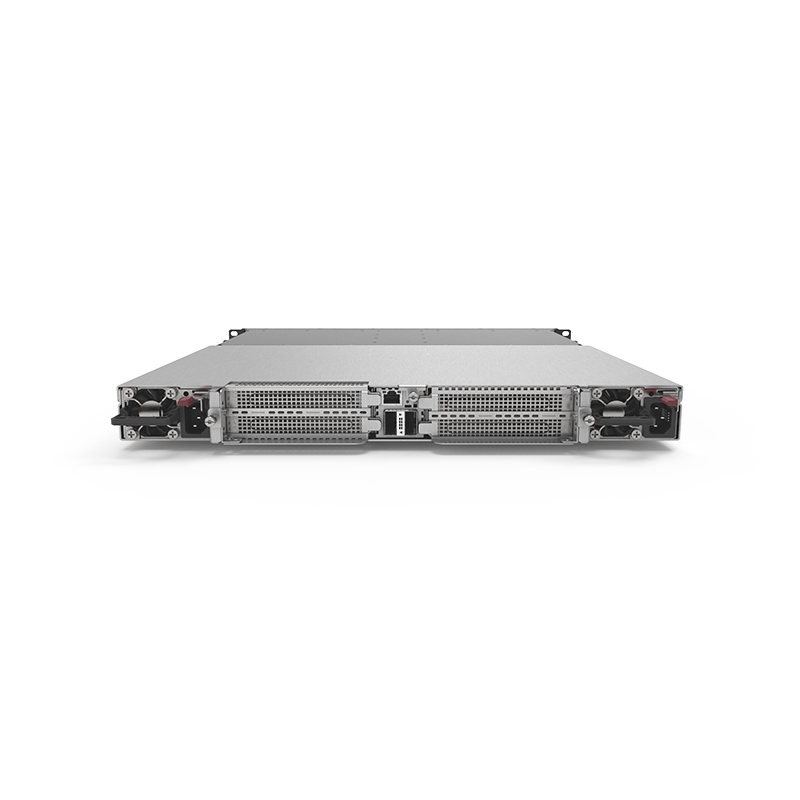

The Rugged HPE Edgeline EL4000RS 1U server from Core Systems is a 20" depth Converged Edge System built for the military

  • 4x compute node.
  • 3 points of convergence in one box.
  • Addresses latency, bandwidth, cost, security, duplication, corruption, and compliance issues.
  • 8x or 10x Cores.

  • 4x compute node.
  • 3 points of convergence in one box.
  • Addresses latency, bandwidth, cost, security, duplication, corruption, and compliance issues.
  • 8x or 10x Cores.

Rugged HPE Servers

Technical Specifications
Height 1.75 in
Width 17.75 in
Depth 20.00 in
Weight 30.00 lbs
CPU Latest Intel XEON
USB Ports 4
Power 95-265 VAC
RAM 256GB
I/O One x8 PCI-E slot per server (four total) or four assignable x8 PXIe slots
Cores 8 or 10
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

Coming Soon

Rugged HPE Servers

Related Designs

Military-Ready Design

Rugged 1U EL4000RS Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged 1U EL4000RS

Technical Specifications
Height 1.75 in
Width 17.75 in
Depth 20.00 in
Weight 30.00 lbs
CPU Latest Intel XEON
USB Ports 4
Power 95-265 VAC
RAM 256GB

Rugged 1U EL4000RS

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

Our ruggedized HPE products come with the trust and security that's built with every HPE design.

Rugged 1U EL4000RS
