Rugged Displays

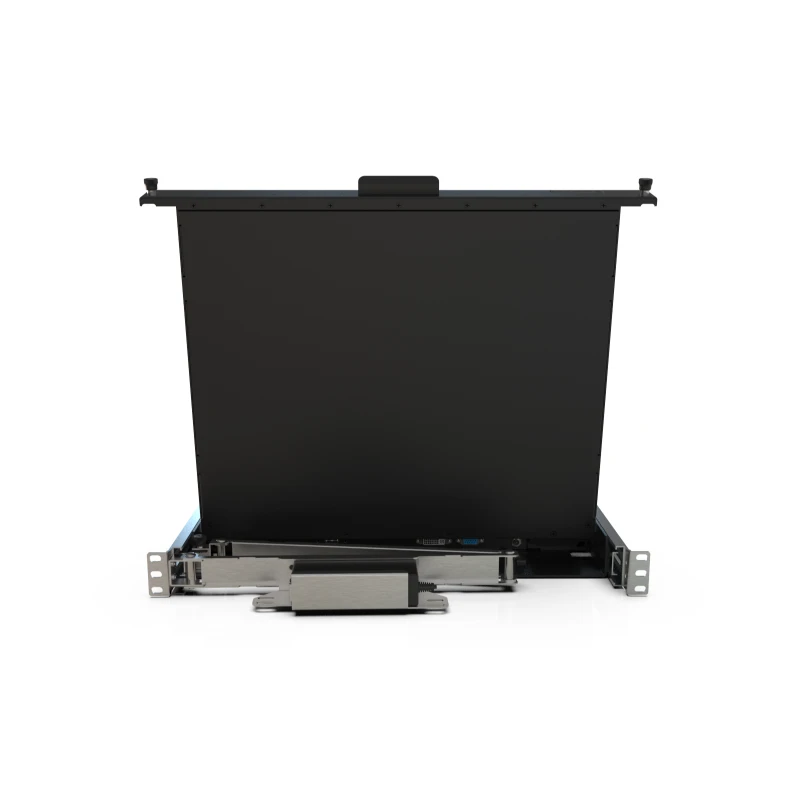

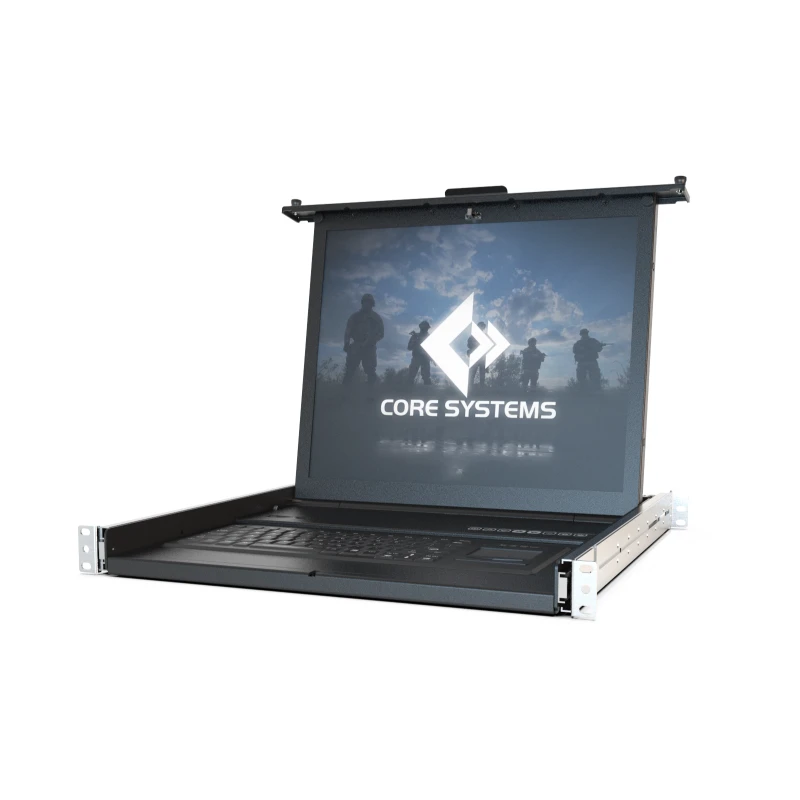

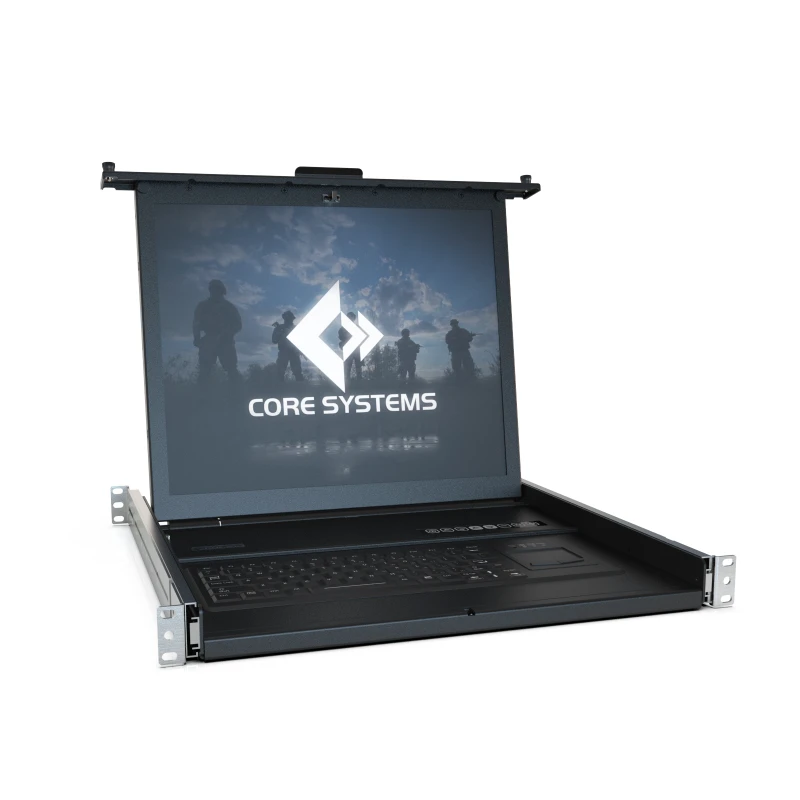

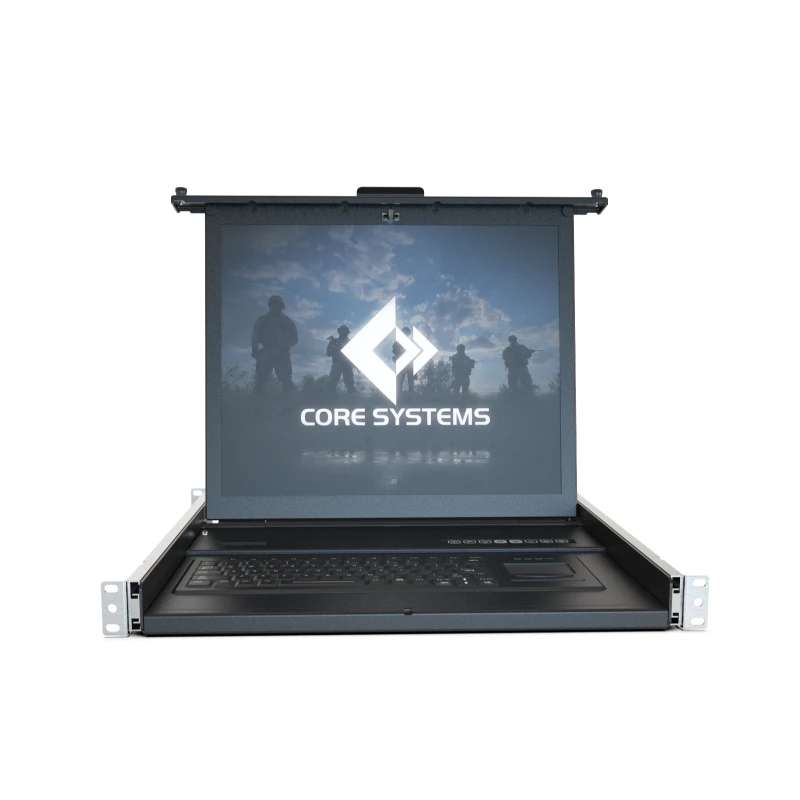

Rugged 1U G219

The rugged G219 from Core Systems is an industry leading 19” rackmount LCD in a 1U form factor and has been tested to meet military standards.

  • Clamshell display configuration with an integrated kill switch for all onboard electronics
  • Reinforced quick-release cable retention arm
  • 19” display with a native pixel resolution of 1280 x 1024
  • DVI and VGA input

Datasheet

  • Clamshell display configuration with an integrated kill switch for all onboard electronics
  • Reinforced quick-release cable retention arm
  • 19” display with a native pixel resolution of 1280 x 1024
  • DVI and VGA input

Datasheet

Rugged Displays

Technical Specifications
Height 1.75 in
Width 19.00 in
Depth 19.00 in
Weight 24.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 1x
Brightness 250
Colors 16.7M
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Application-Specific

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

2019-Core-Systems-Datasheet-G219.pdf

Rugged Displays

Related Designs

Military-Ready Design

Rugged 1U G219 Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Latest Technology

We provide the latest computing technology to give you the edge you need out in the field.

Ready for Action

Our history with designing for the military ensures your system is ready for action.

Rugged 1U G219

Technical Specifications
Height 1.75 in
Width 19.00 in
Depth 19.00 in
Weight 24.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 1x
Brightness 250
Colors 16.7M

Rugged 1U G219

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Application-Specific

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

Rugged 1U G219
