Rugged HPE Servers

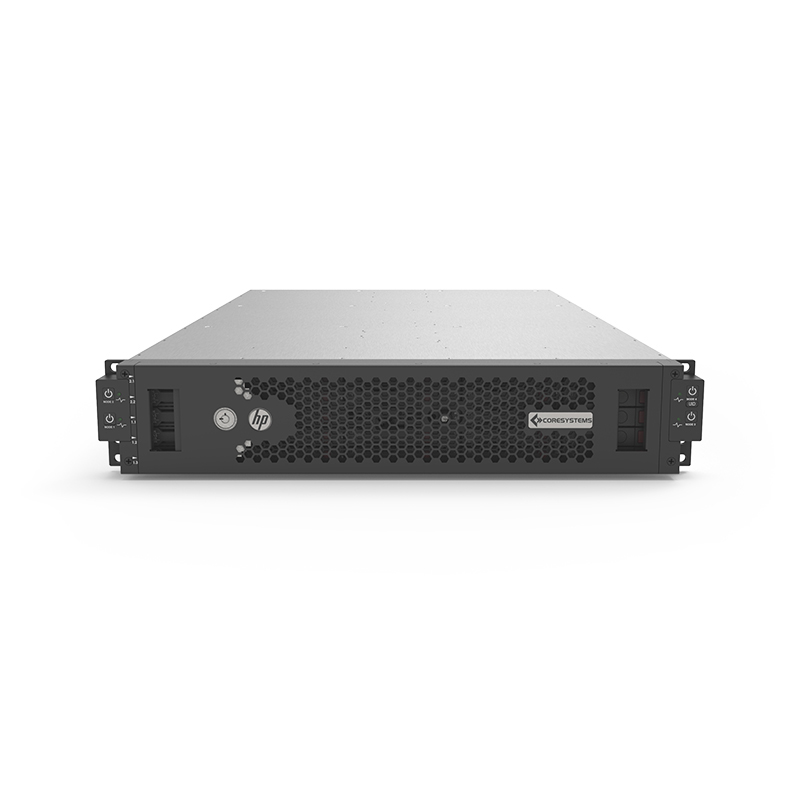

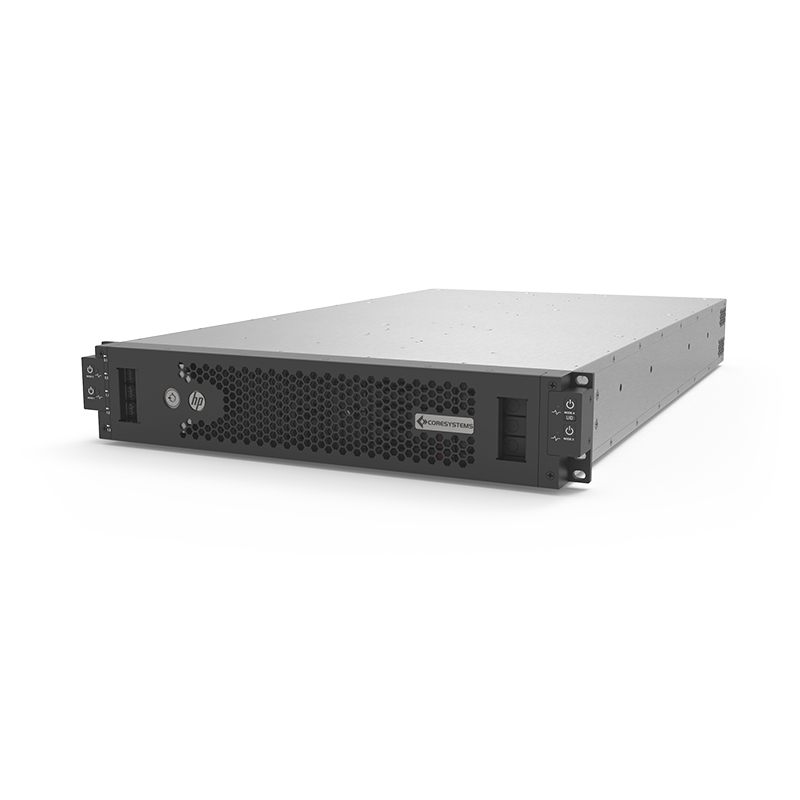

Rugged 2U R2600RS

The R2600RS Rugged Server takes the proven HPE Apollo R2600 4 node system and repackages the server in a rugged, space-optimized 2U form factor. Up to 4 dual-socket nodes, 24 total SSDs, 1GB or 10GB connectivity, and an integrated management suite.

  • Perfect for a variety of workloads, including HPC clusters.
  • Supports a full complement of HPC features, including top bin CPUs, fast memory, integrated accelerators or GPUs.
  • Achieve the right balance of price and performance for your tactical HPC workloads.

Datasheet

  • Perfect for a variety of workloads, including HPC clusters.
  • Supports a full complement of HPC features, including top bin CPUs, fast memory, integrated accelerators or GPUs.
  • Achieve the right balance of price and performance for your tactical HPC workloads.

Datasheet

Rugged HPE Servers

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 28.00 in
Weight 30.00 lbs
CPU Latest Dual Intel XEON
External Bays 24
USB Ports 4
Power 800W, 1400W
Chassis Type Lightweight aluminum chassis
Network (per node) 2x 1GB Ethernet, serial RJ45 connector, SUV connector (1 serial/2 USB/ 1video), optional FlexibleLOM
Memory (per node) 16 DDR4 DIMMS, 2400 MHz, 1TB max (16 x 64GB)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

core-systems-r2600rs-server-datasheet.pdf

Rugged HPE Servers

Related Designs

Military-Ready Design

Rugged 2U R2600RS Features

Rugged Chassis

Built with an all-aluminum chassis designed to handle any extreme.

Powerful CPU

We provide the latest computing technology to give you the edge you need out in the field.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged 2U R2600RS

Technical Specifications
Height 3.50 in
Width 17.75 in
Depth 28.00 in
Weight 30.00 lbs
CPU Latest Dual Intel XEON
External Bays 24
USB Ports 4
Power 800W, 1400W
Chassis Type Lightweight aluminum chassis

Rugged 2U R2600RS

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Core Systems has partnered with HPE to create a series of short-depth and rugged servers to serve applications of all types.

Rugged Design

Built Rugged to Last Long

Rugged 2U R2600RS
