Rugged 3U MLD-3K

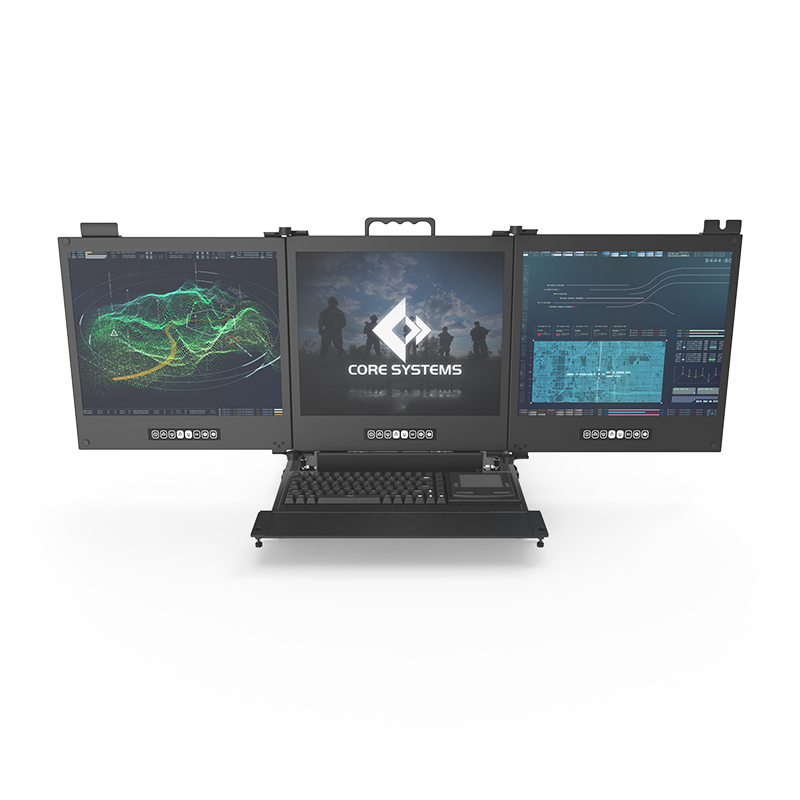

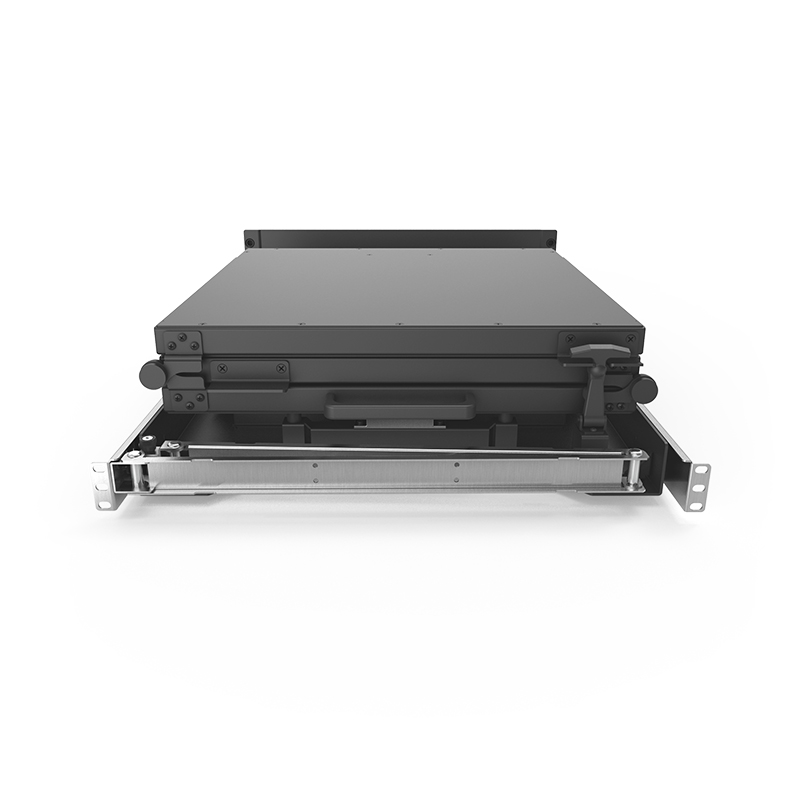

The rugged MLD-3K is a triple 19” LCD in a short 3U form factor.

  • 3x 19” displays with a native pixel resolution of 1280 x 1024.
  • 3x inputs for both DVI-D and VGA signals.
  • Sealed full travel keyboard, and an integrated touchpad or trackball pointing device.

Datasheet

  • 3x 19” displays with a native pixel resolution of 1280 x 1024.
  • 3x inputs for both DVI-D and VGA signals.
  • Sealed full travel keyboard, and an integrated touchpad or trackball pointing device.

Datasheet

Rugged Displays

Technical Specifications
Height 5.25 in
Width 19.00 in
Depth 26.00 in
Weight 48.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 3x
Brightness 350
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)
Environmental Specifications Tested to meet military environmental specifications.
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.

2019-Core-Systems-Datasheet-MLD3K.pdf

Rugged Displays

Related Designs

Military-Ready Design

Rugged 3U MLD-3K Features

Rugged Chassis

Space-saving design built for your application.

Latest Technology

Your system comes equipped with the most powerful computing technology in the industry.

Built for Expansion

With room for expansion, your system has the versatility your mission requires.

Rugged 3U MLD-3K

Technical Specifications
Height 5.25 in
Width 19.00 in
Depth 26.00 in
Weight 48.00 lbs
Resolution 1280 x 1024
Display Size 19
Screens 3x
Brightness 350

Rugged 3U MLD-3K

Military Testing
Operational Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Storage Temperature MIL-STD-810F, Method 501.5 Procedures I/II; -15°C to +55°C
Humidity MIL-STD-810F, Method 507.4; 48 Hour, 95% RH 40-65C (with conformal coat option)
Altitude MIL-STD-810F, Method 500.4; 12,500ft operation with 40,000ft transport
Vibration MIL-STD-810G, Method 514.6 Procedure I; 4.43 GRMS, 5-20000Hz, 60min/axis
Shock MIL-STD-810G, Method 516.6, Procedures I/V; 20g, 11msec - functional shock; 40g, 11msec crash hazard shock
Other MIL-STD-461F CE & RE emissions (with 461 filter option)

Application-Specific

Built Rugged to Last Long

Space-saving design without sacrificing power and speed.

Rugged Design

Built Rugged to Last Long

We design trustworthy displays that are sunlight readable and can be integrated with other computing systems.
